Positive Crankcase Ventilation: Description and Operation

Description

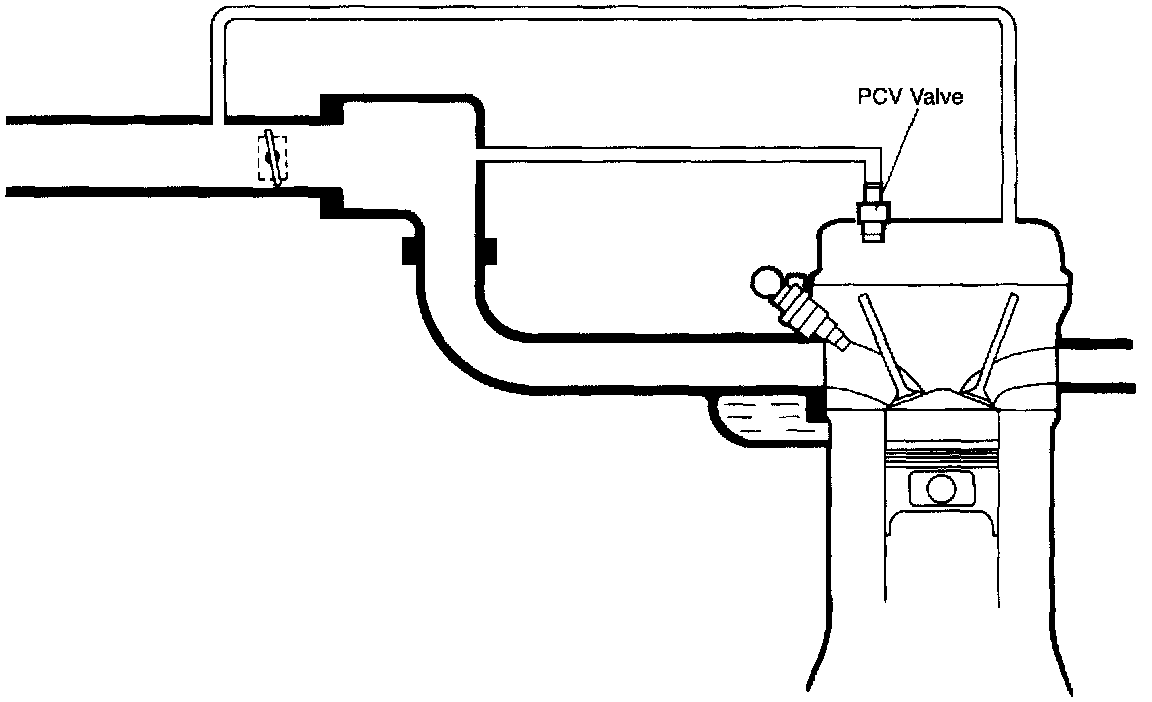

The PCV valve is operated by the intake manifold vacuum. When the engine is running at idle, the PCV valve is opened slightly and a small amount of blowby gas is drawn into the dynamic chamber to be burned. As the engine speed rises the PCV valve is opened further, allowing a larger amount of blowby gas to be drawn into the dynamic chamber.
