Evaporative Check Valve: Testing and Inspection

INSPECTION PROCEDURE





1. Remove the two-way check valve.

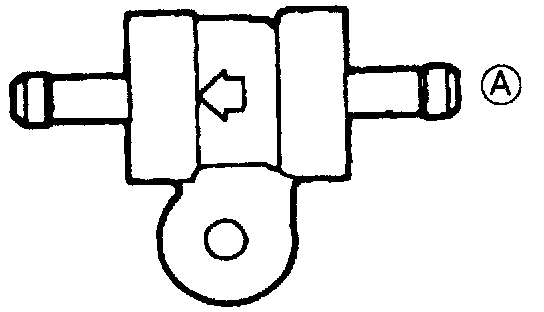

2. Apply pressure or vacuum to port A of the valve using a vacuum pump, and check for air flow.

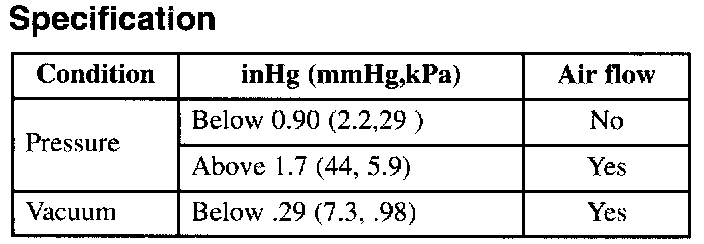

Reference Table:

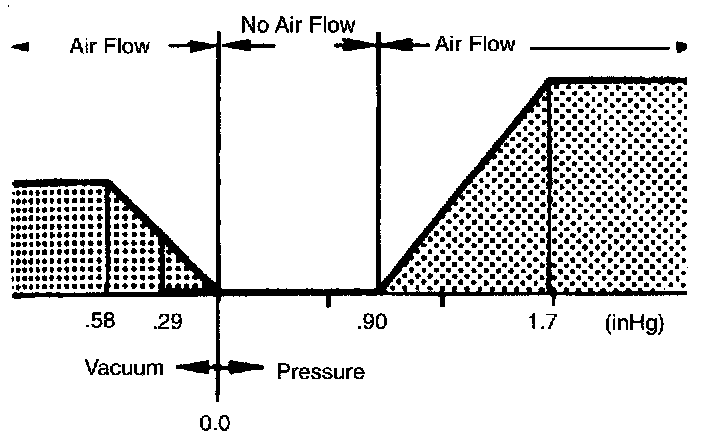

Reference Graph:

3. If not as specified, replace the two-way check valve.
