Brake Warning Indicator: Testing and Inspection

Bulb test
With the ignition switch in START, and the transaxle range switch in park or neutral (A/T only), voltage is applied to the bulb check circuit in the instrument cluster. The circuit switches ground to the brake warning indicator. This operation acts as a bulb test for the brake warning indicator.

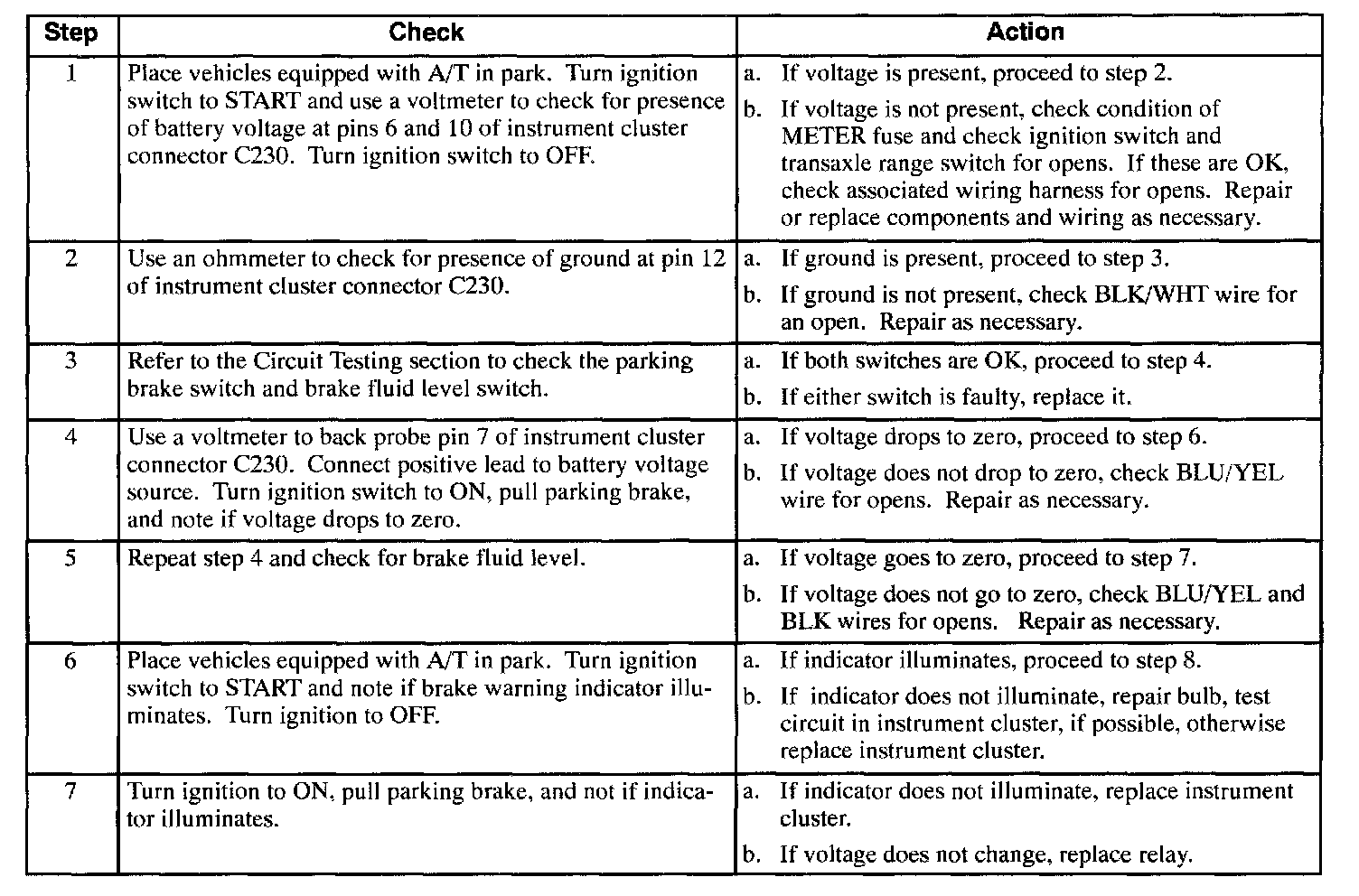

Circuit Test
