Switch Testing

Compressor Controls-Circuit Testing:

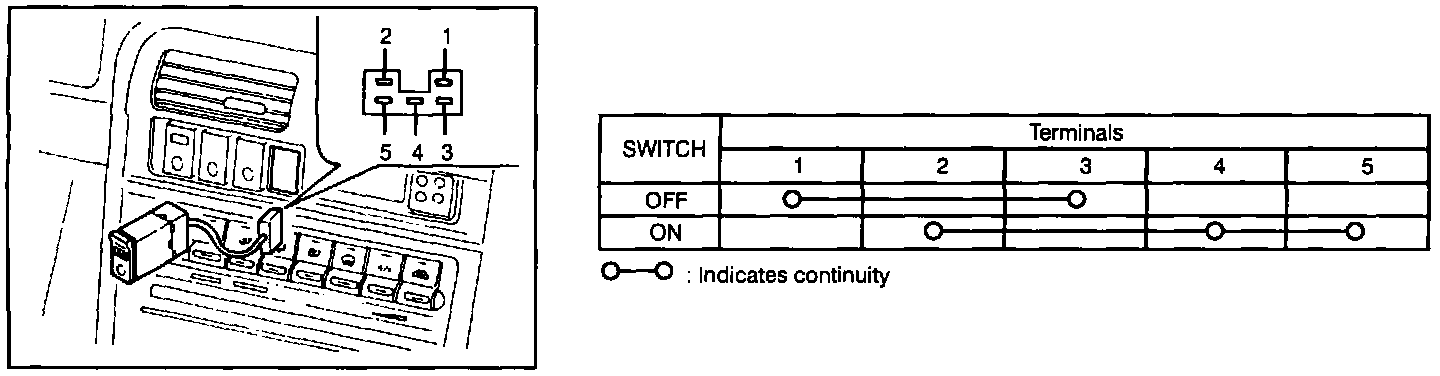

1. Remove the A/C switch and check continuity between terminals.
2. If not as specified, replace the A/C switch.
