Water Pump: Service and Repair

NOTE: On models equipped with airbag system, refer to Technician Safety Information for system disarming and arming procedures.

1. Disconnect battery ground cable and drain engine coolant.

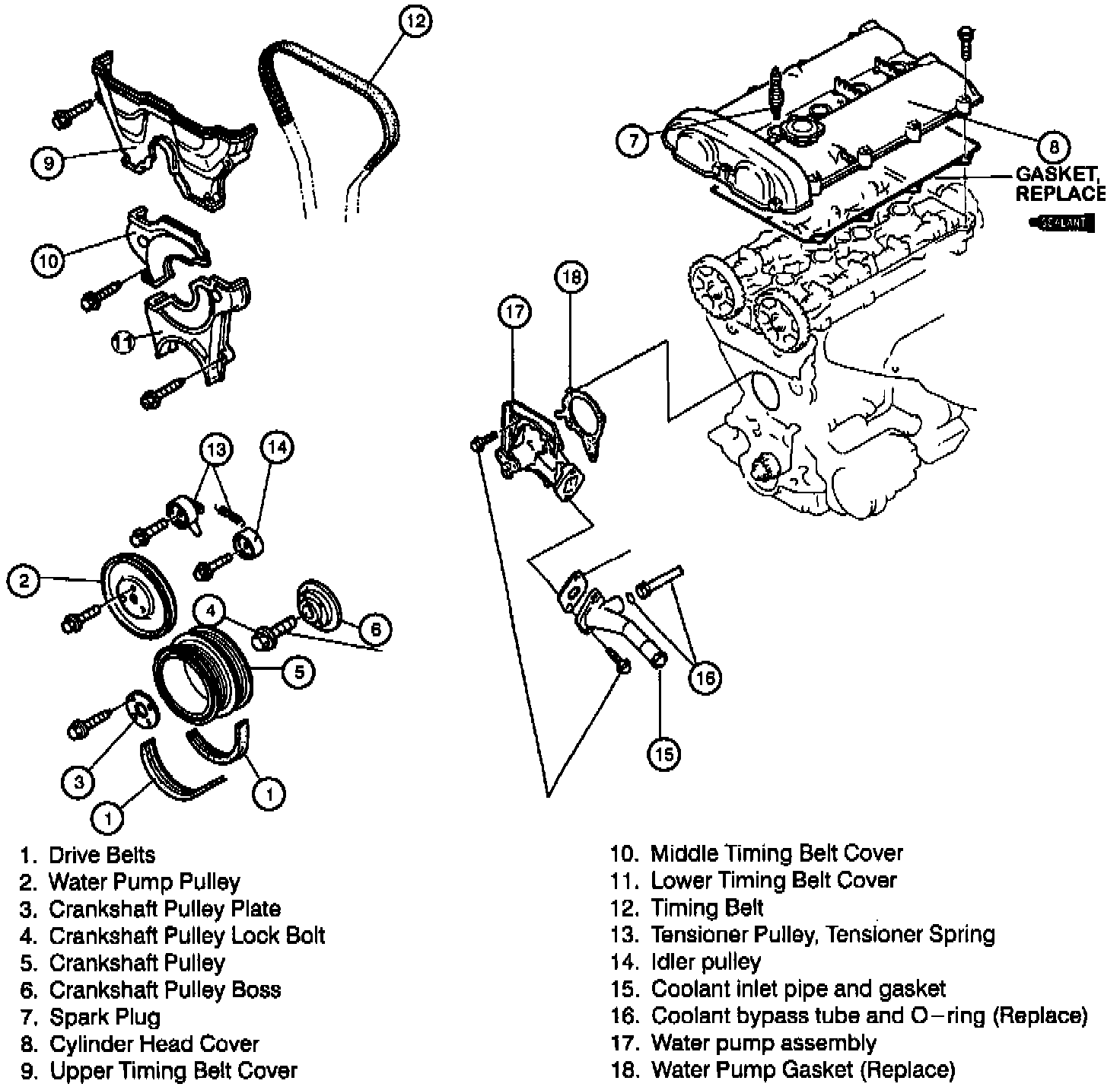

Fig. 59 Water Pump Replacement:

2. Remove components in order shown, Fig. 59.
3. Reverse procedure to install, noting the following:
a. Use a new O-ring and gasket.
b. Tighten all fasteners to specifications.
c. Fill and bleed cooling system.
