Oil Pan Replacement

NOTE: On models equipped with airbag system, refer to Technician Safety Information for system disarming and arming procedures.

1. Disconnect battery ground cable.
2. Drain engine oil.
3. Remove front and RH splash shields.

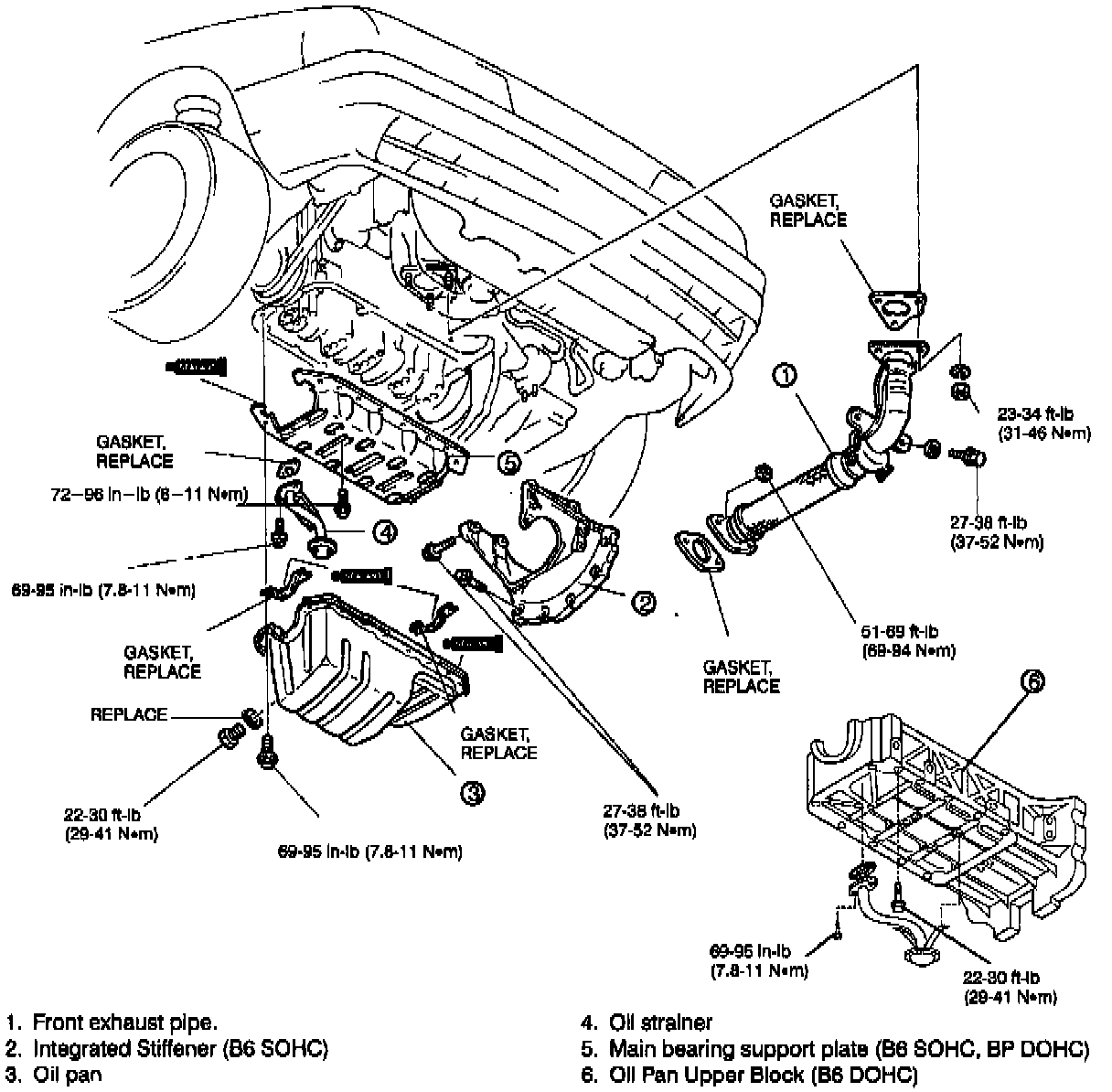

Fig. 44 Oil Pan Component Replacement:

4. Remove components in order shown, Fig. 44.

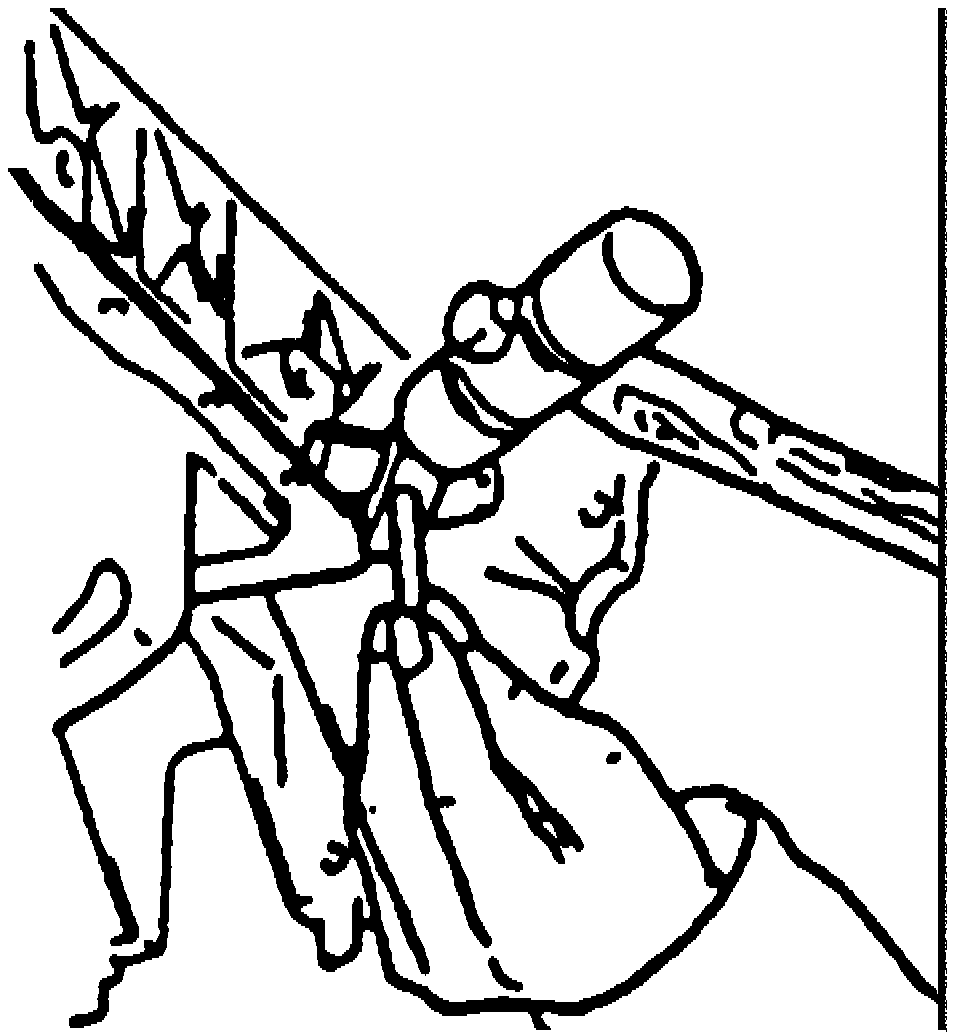

Fig. 45 Oil Pan Separation:

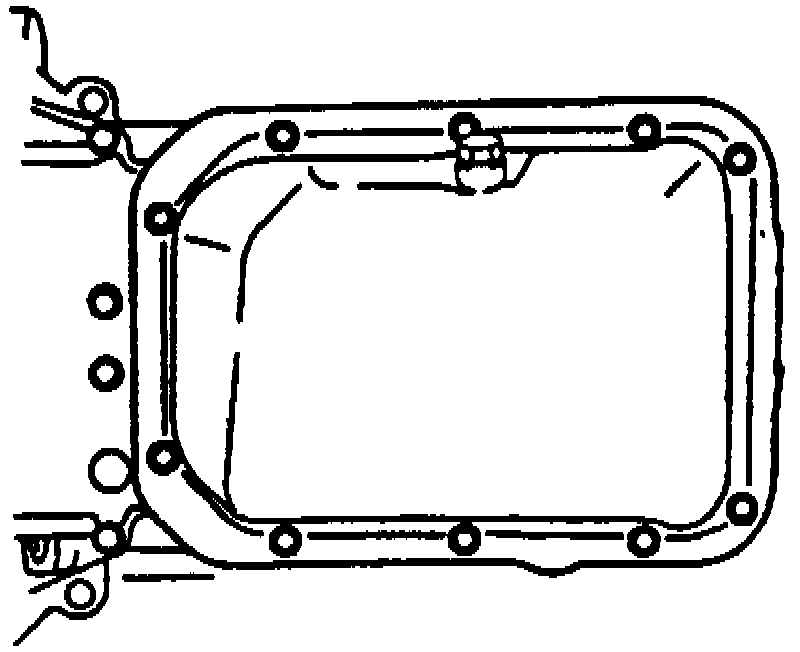

Fig. 46 Oil Pan Removal:

5. Using a scraper or separator tool, Fig. 45, remove oil pan, Fig. 46.
6. Remove oil strainer support bolts and oil strainer.

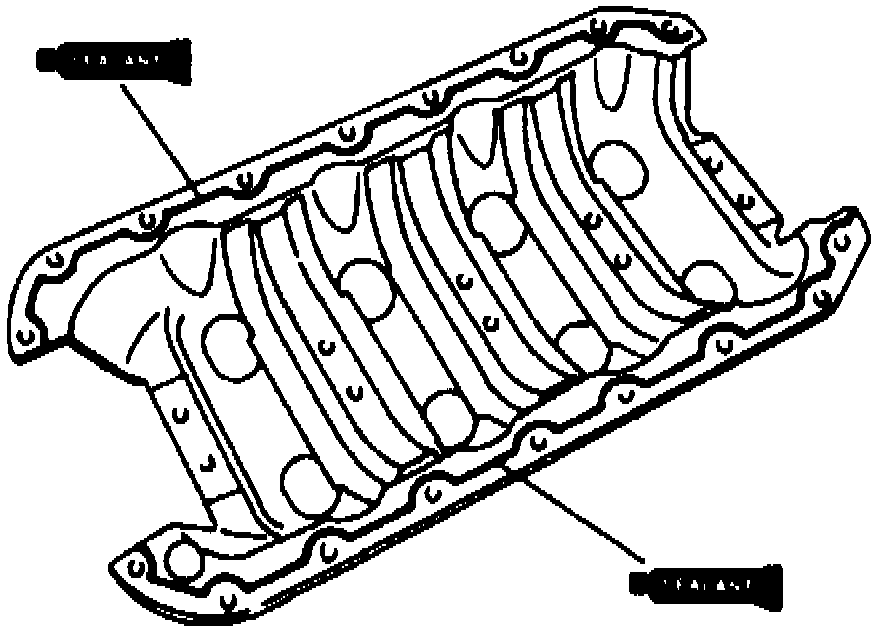

Fig. 47 Oil Pan Silicone Sealant Application:

7. Reverse procedure to install, noting the following:
a. Remove all foreign material from contact surfaces prior to installation.
b. Apply a continuous bead of silicone sealant to oil pan, Fig. 47.
c. Tighten all fasteners to specifications.
8. On models equipped with airbag system, refer to Technician Safety Information for system disarming and arming procedures.
