Radiator: Service and Repair

NOTE: On models equipped with airbag system, refer to Technician Safety Information for system disarming and arming procedures.

1. Disconnect battery ground cable.
2. Drain coolant into suitable container.

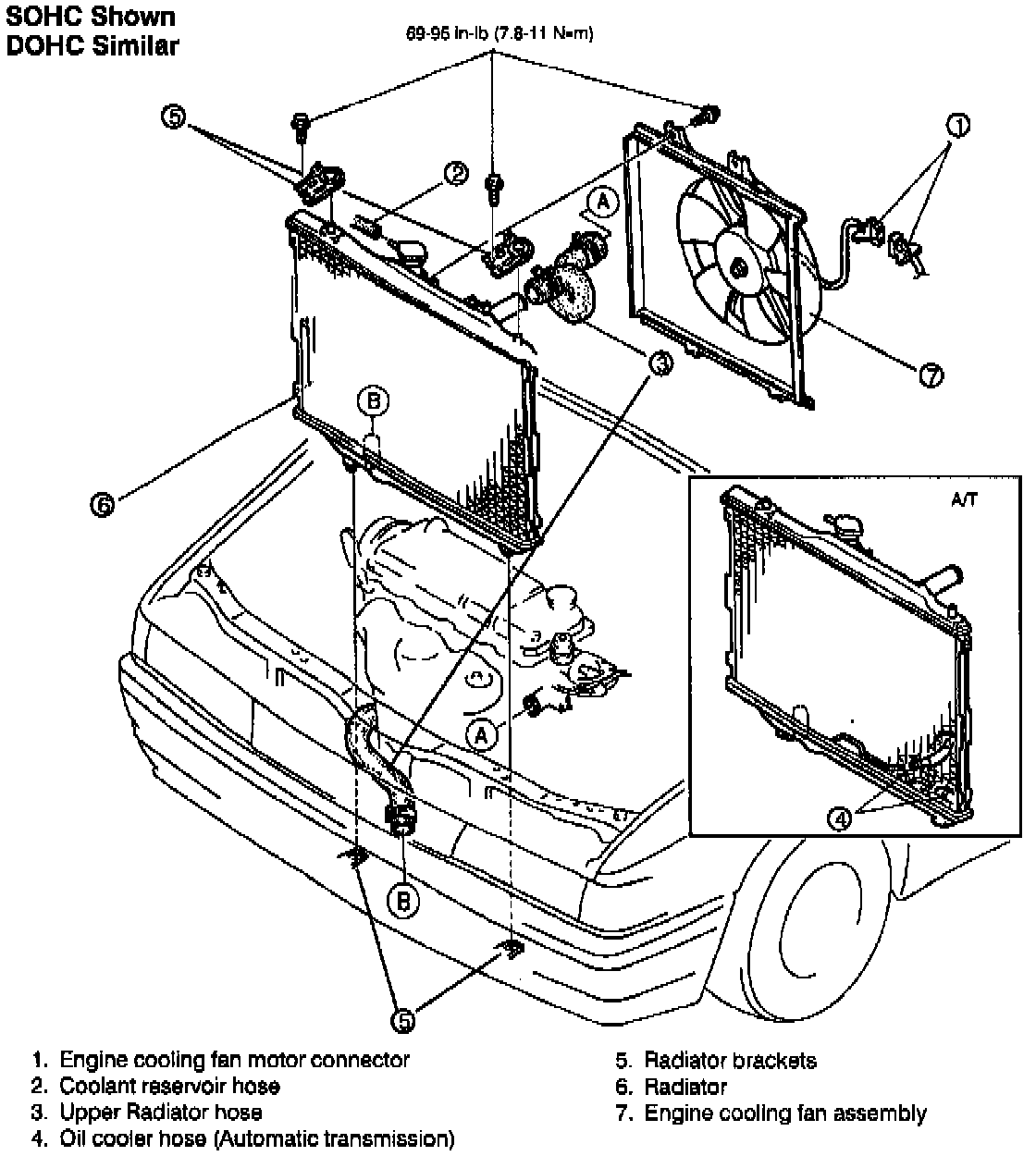

Fig. 60 Radiator Replacement:

3. Remove radiator in numbered sequence, Fig. 60.
4. Reverse procedure to install.
5. On models equipped with airbag system, refer to Technician Safety Information for system disarming and arming procedures.
