Fuse Block

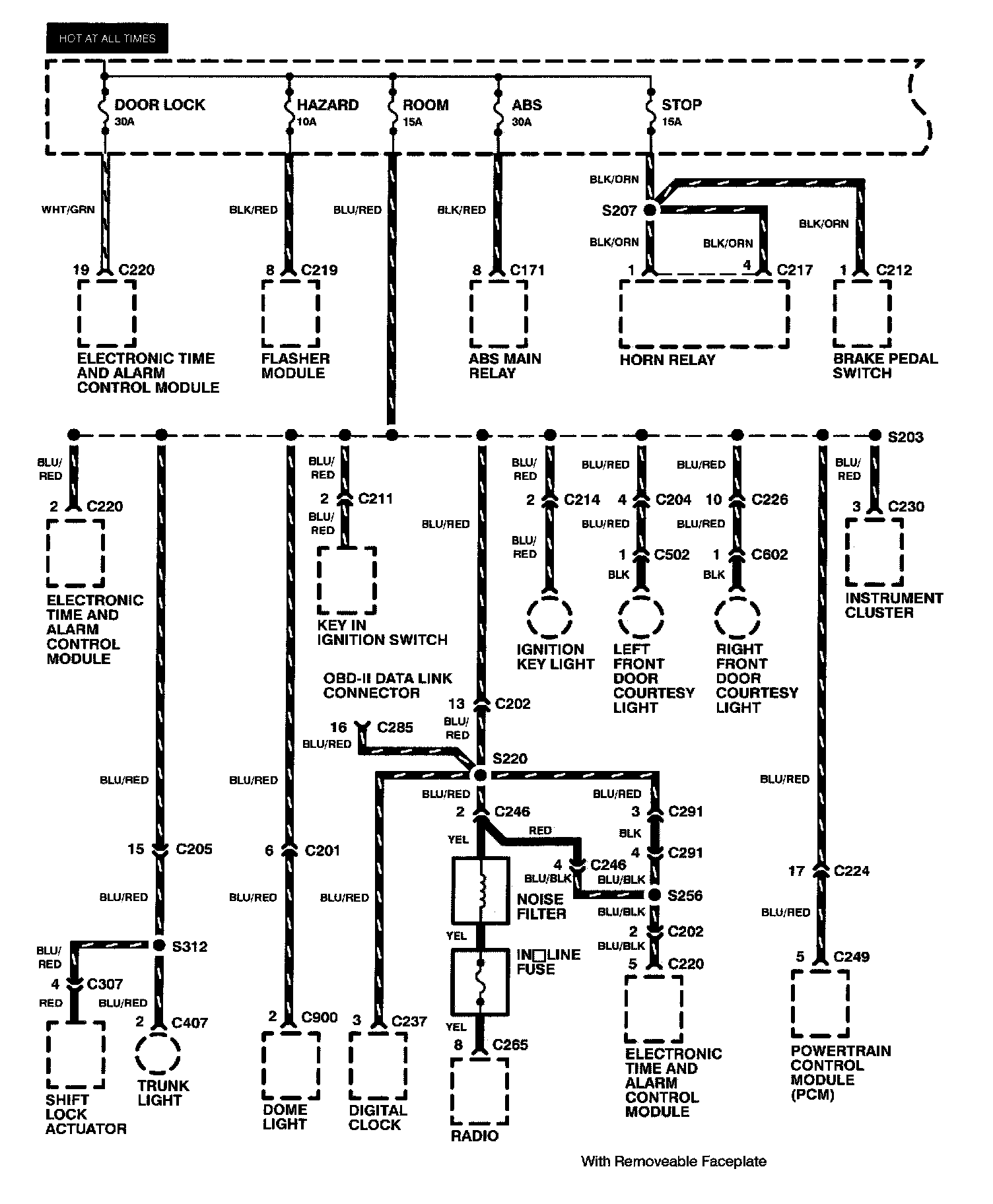

Fuse Box Details (Part 1 Of 4):

Fuse Box Details (Part 1 Of 4)
ABS Main Relay
Brake Pedal Switch
Dome Light
Digital Clock
Electronic Time And Alarm Control Module
Flasher Module
Horn Relay
Instrument Cluster
Ignition Key Light
Key In Ignition Switch
Left Front Door Courtesy
Noise Filter
Powertrain Control Module (PCM)
Radio
Right Front Door Courtesy
Shift Lock Actuator
Trunk Light

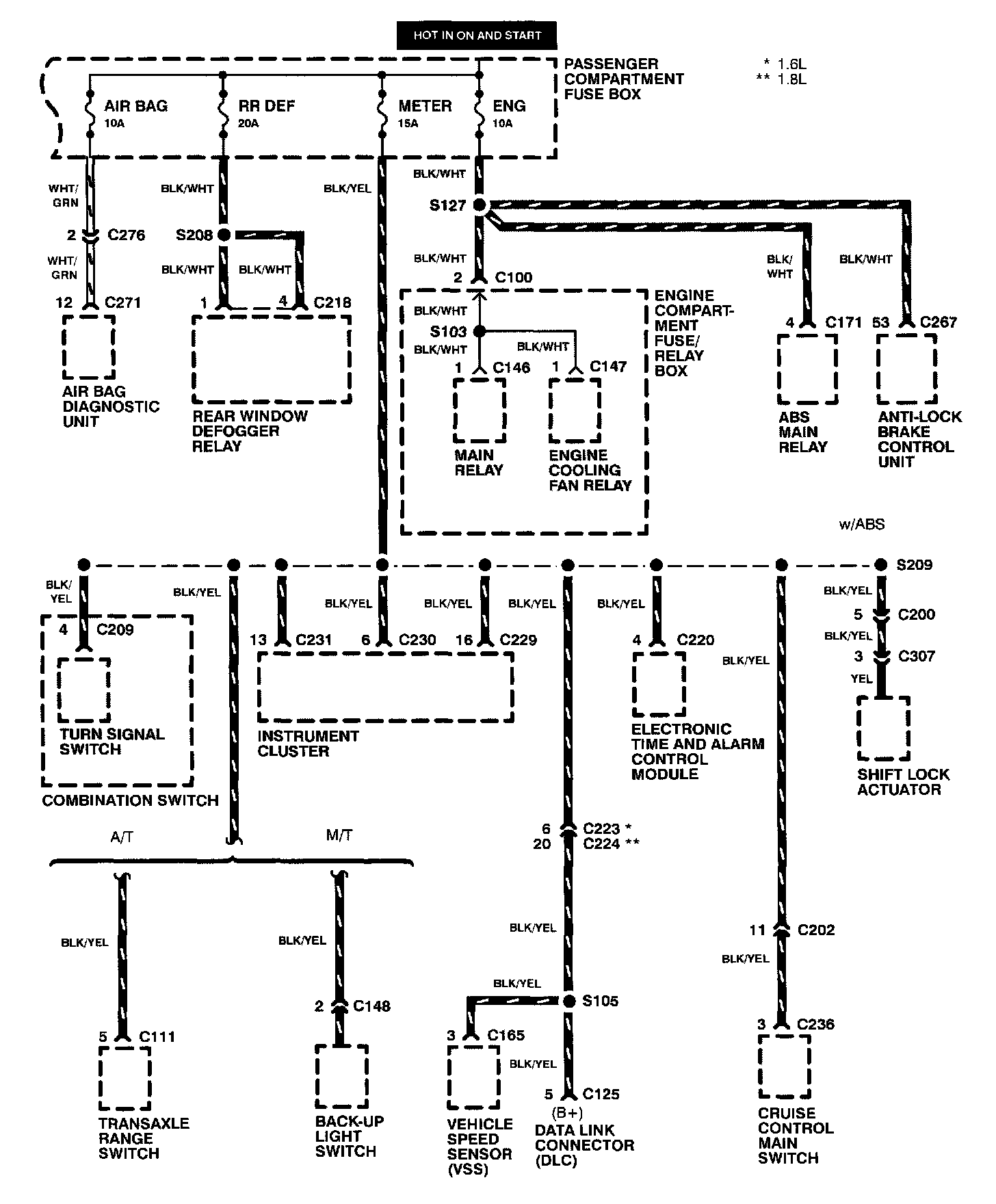

Fuse Box Details (Part 2 Of 4):

Fuse Box Details (Part 2 Of 4)
ABS Main Relay
Air Bag Diagnostic Unit
Anti-lock Brake Control Unit
Back-up Light Switch
Combination Switch
Cruise Control Main Switch
Data Link Connector (DLC)
Engine Cooling Fan Relay
Engine Compartment Fuse/Relay Box
Electronic Time And Alarm Control Module
Instrument Cluster
Main Relay
Passenger Compartment Fuse Box
Rear Window Defogger Relay
Shift Lock Actuator
Turn Signal Switch
Transaxle Range Switch
Vehicle Speed Sensor

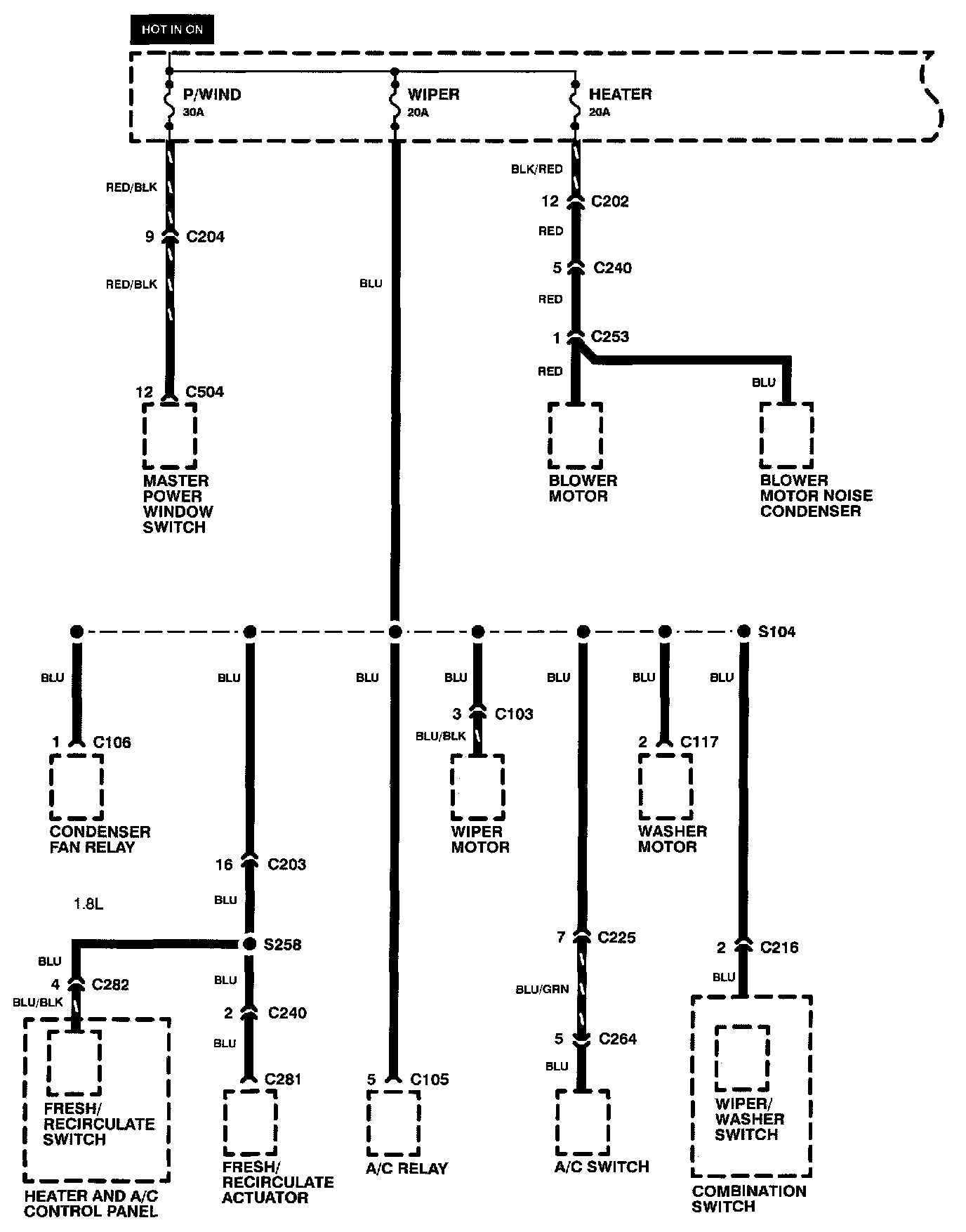

Fuse Box Details (Part 3 Of 4):

Fuse Box Details (Part 3 Of 4)
A/C Relay
A/C Switch
Blower Motor
Blower Motor Noise Condenser
Condenser Fan Relay
Combination Switch
Fresh/Recirculate Switch
Fresh/Recirculate Actuator
Heater And A/C Control Panel
Master Power Window Switch
Wiper Motor
Washer Motor

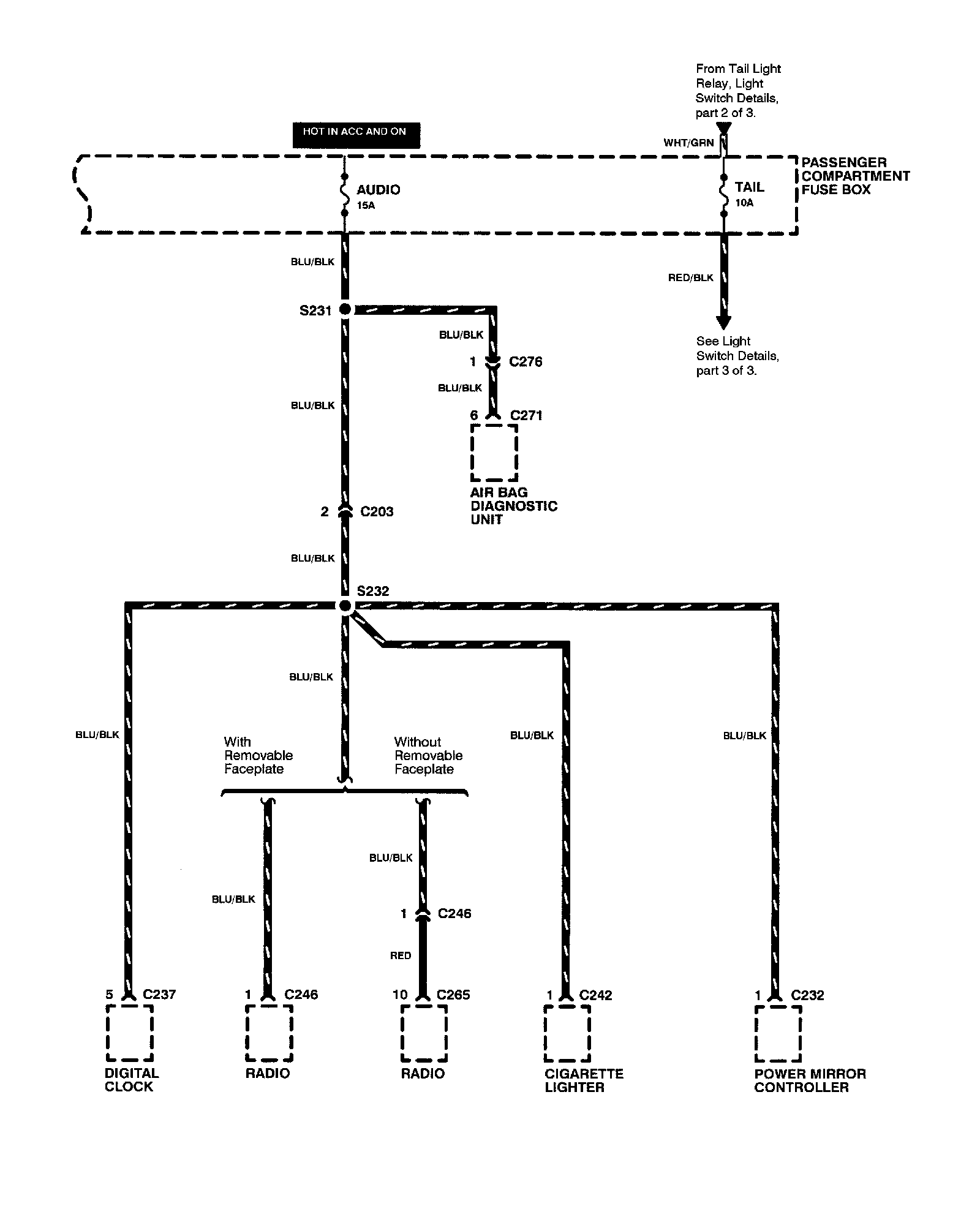

Fuse Box Details (Part 4 Of 4):

Fuse Box Details (Part 4 Of 4)
Air Bag Diagnostic Unit
Cigarette Lighter
Digital Clock
Power Mirror Controller
Passenger Compartment Fuse Box
Radio
