Ignition Key In Signal, Antitheft

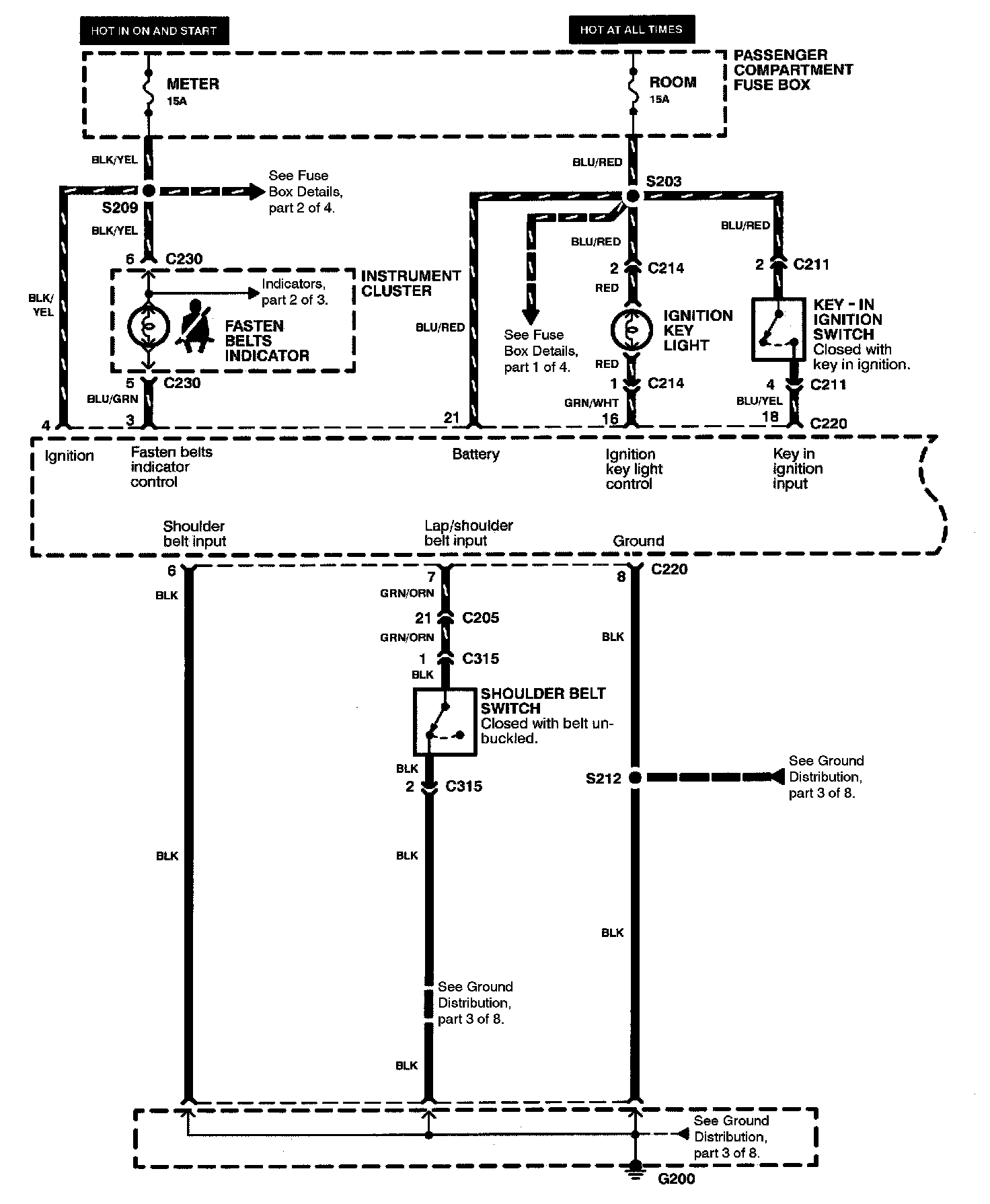

Ignition Key Warning, Ignition Key Illumination, Fasten Belts Indicator And Lights ON Warning (Part 1 Of 2):

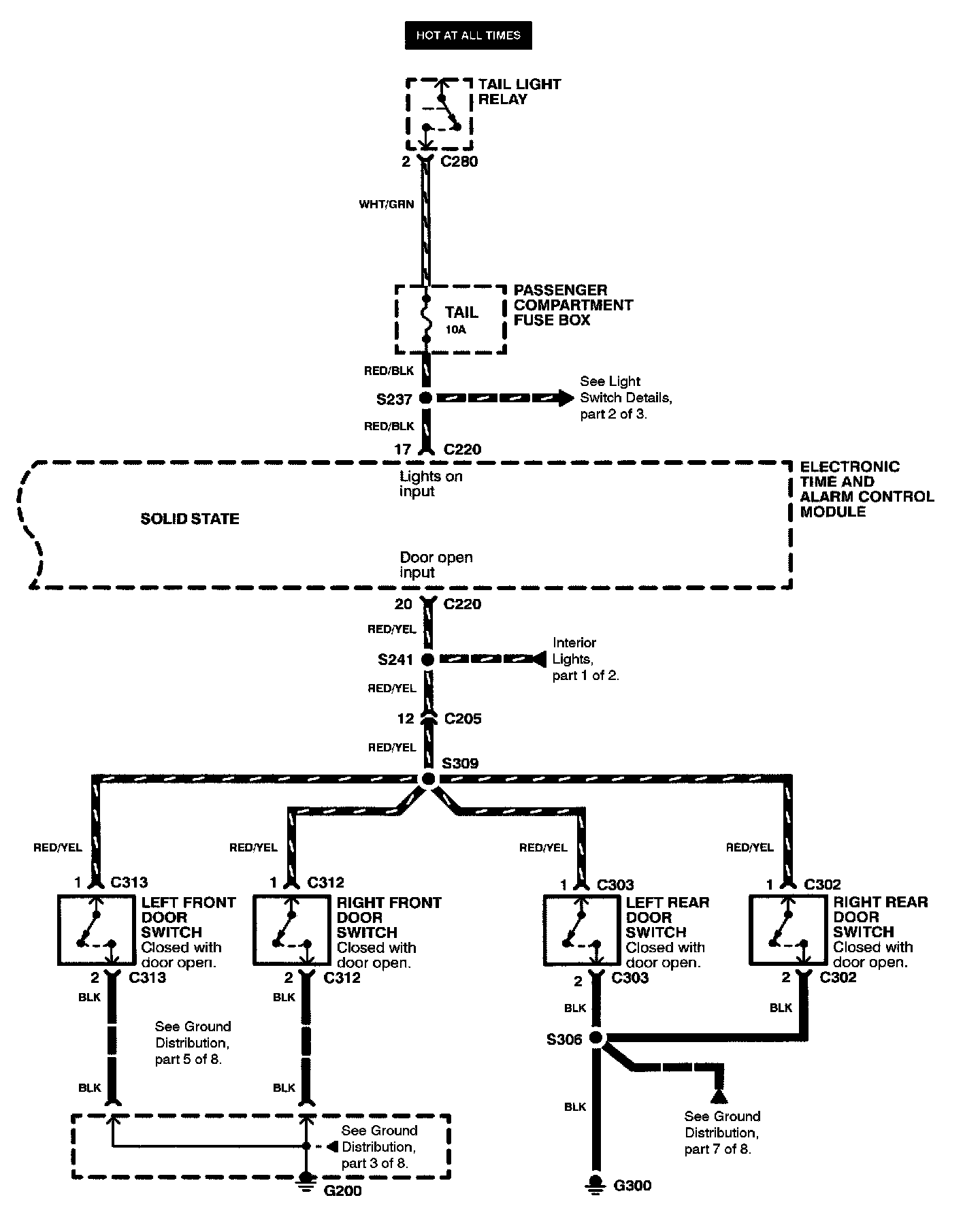

Ignition Key Warning, Ignition Key Illumination, Fasten Belts Indicator And Lights ON Warning (Part 2 Of 2):
