Vacuum Brake Booster: Service and Repair

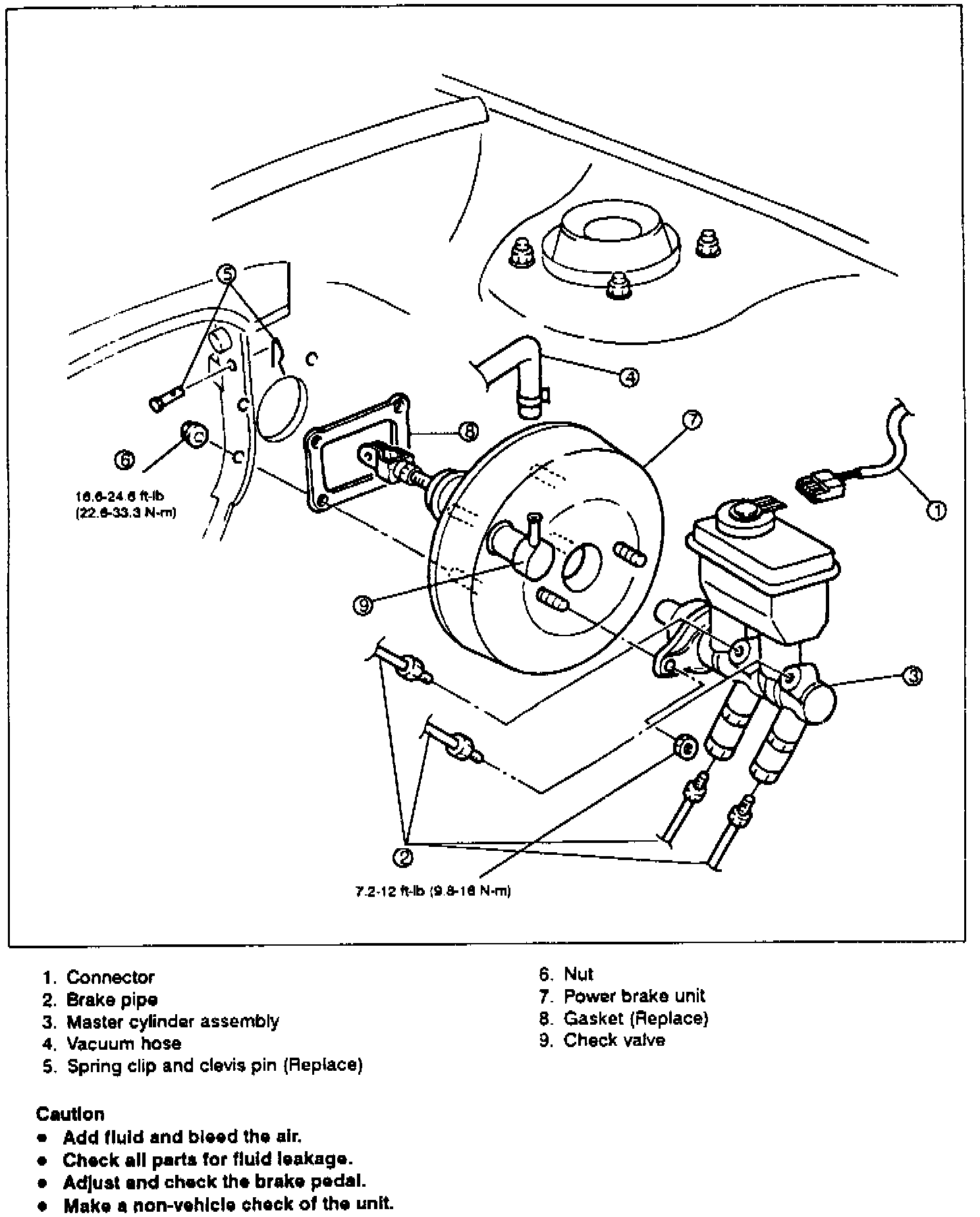

1. Remove power brake unit in numbered sequence shown in Fig. 1.
2. Reverse procedure to install, noting the following:
a. Inspect all components for brake fluid leakage.
b. Tighten to specifications shown in Fig. 1.
