Brake Pad: Service and Repair

1. Remove caliper assembly bolts and pull caliper from disc.
2. Remove brake flex hose mounting bolt and disconnect brake flex hose from caliper.

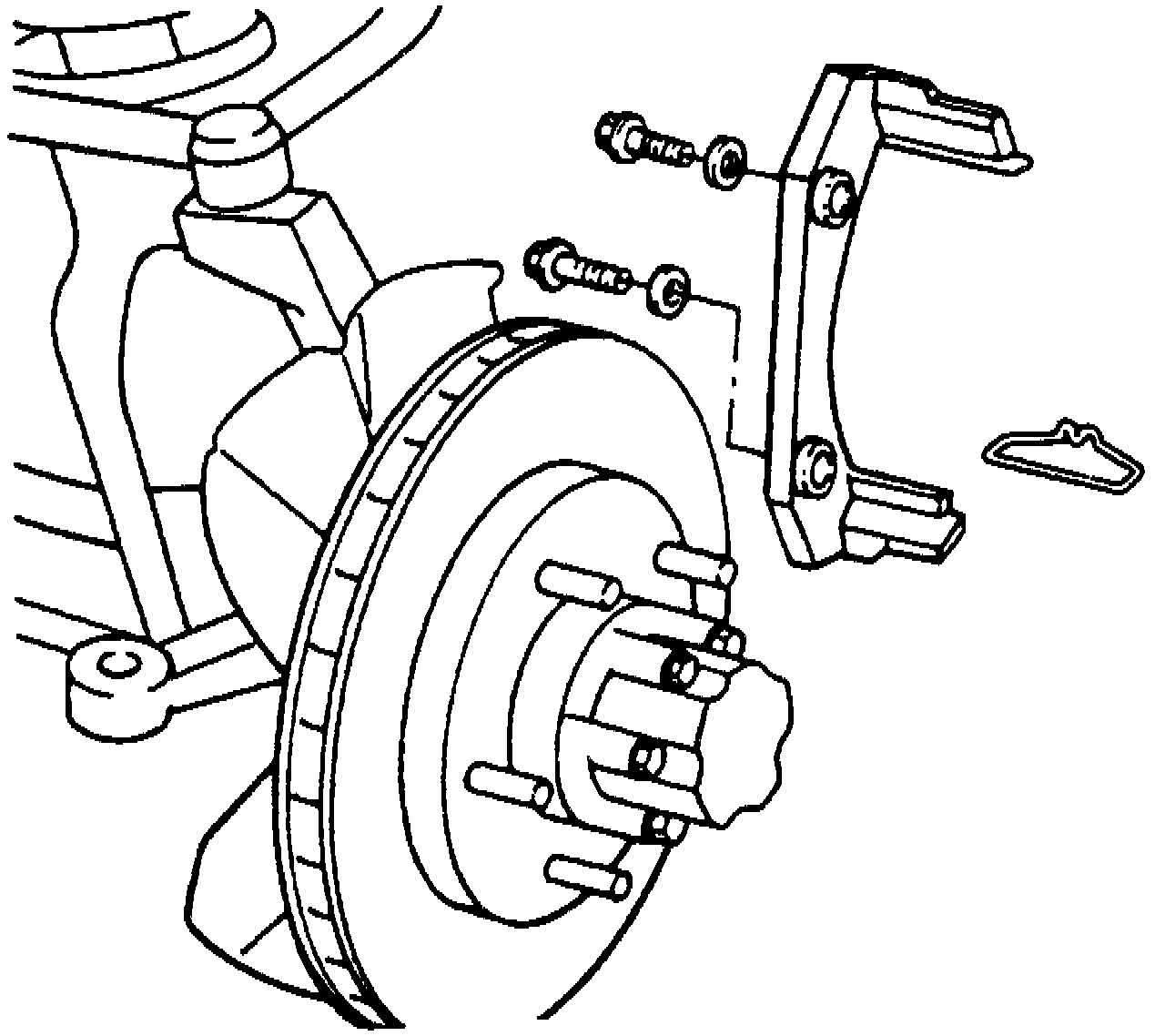

Fig. 2 Brake Pad Adapter Removal:

3. Remove adapter, then the brake pads from adapter, Fig. 2.
4. Reverse procedure to install. Bleed brake system.
