Rear Cross-Member: Service and Repair

1. Raise and support vehicle, then remove wheels.
2. Remove brake pipe and holder.

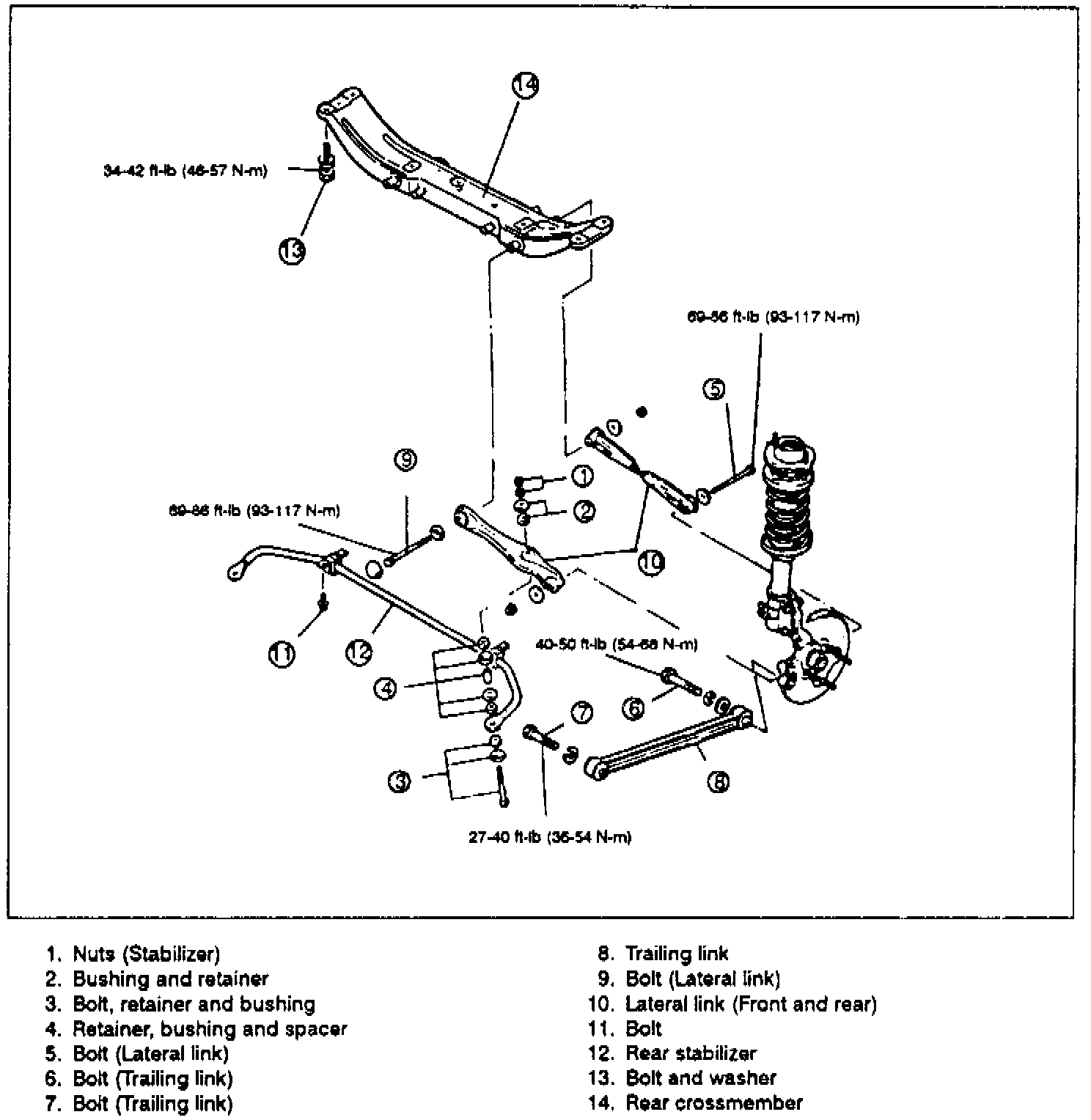

Fig. 6 Rear Crossmember Replacement:

3. Remove crossmember in numbered sequence shown in Fig. 6.
4. Reverse procedure to install. Loosely tighten lateral link and trailing link bolts, then lower vehicle and tighten all nuts and bolts to specifications.
