Home >> Kia >> 1995 >> Sephia Sedan L4-1.8L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams >> Electrical Diagrams >> Up to VIN S5219999

Up to VIN S5219999

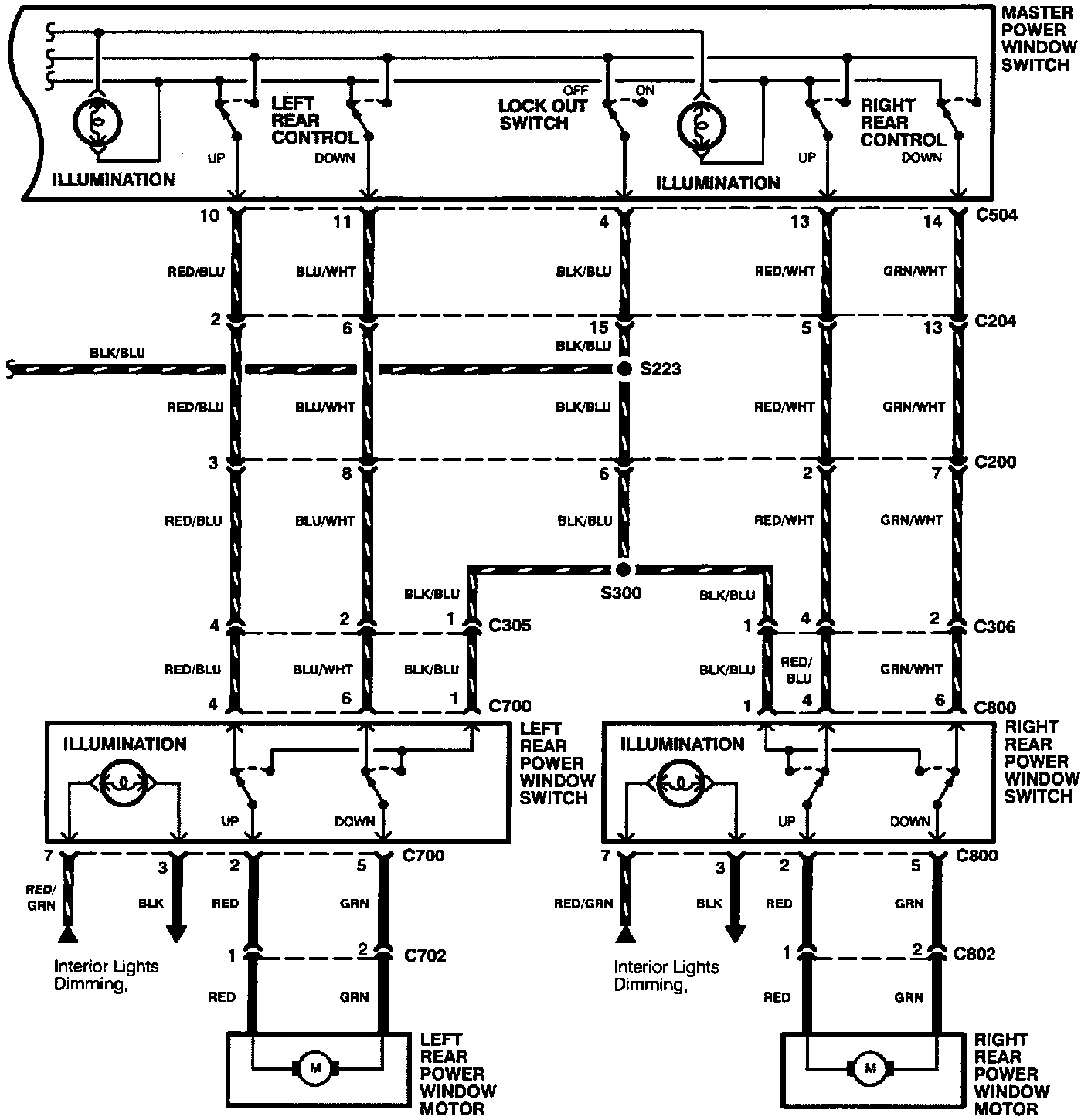

Power Windows (Part 1 Of 2):



Power Windows (Part 2 Of 2):



Power Windows-Up To VIN Chassis Number 219999 (Part 1 Of 2):



Power Windows-Up To VIN Chassis Number 219999 (Part 2 Of 2):
