Heated Glass Element Relay
>>
Testing and Inspection
>>
Up to VIN S5219999
Up to VIN S5219999
Circuit Testing-Rear Window Defogger Relay:
1.
Disconnect the rear window defogger relay connector and remove the relay.
2.

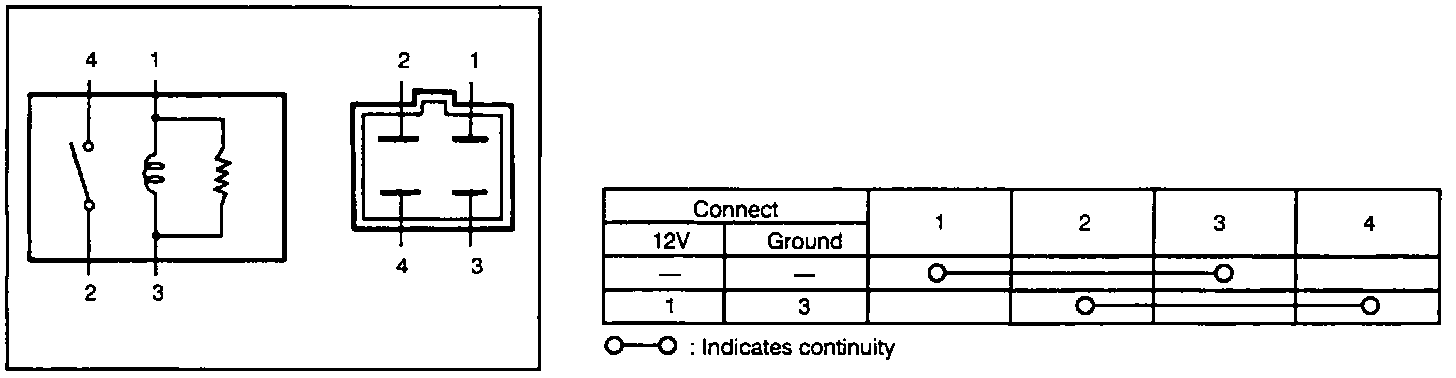

Check for continuity between the terminals of the relay.
