Heated Glass Element Relay
>>
Testing and Inspection
>>
From VIN S5220000
From VIN S5220000

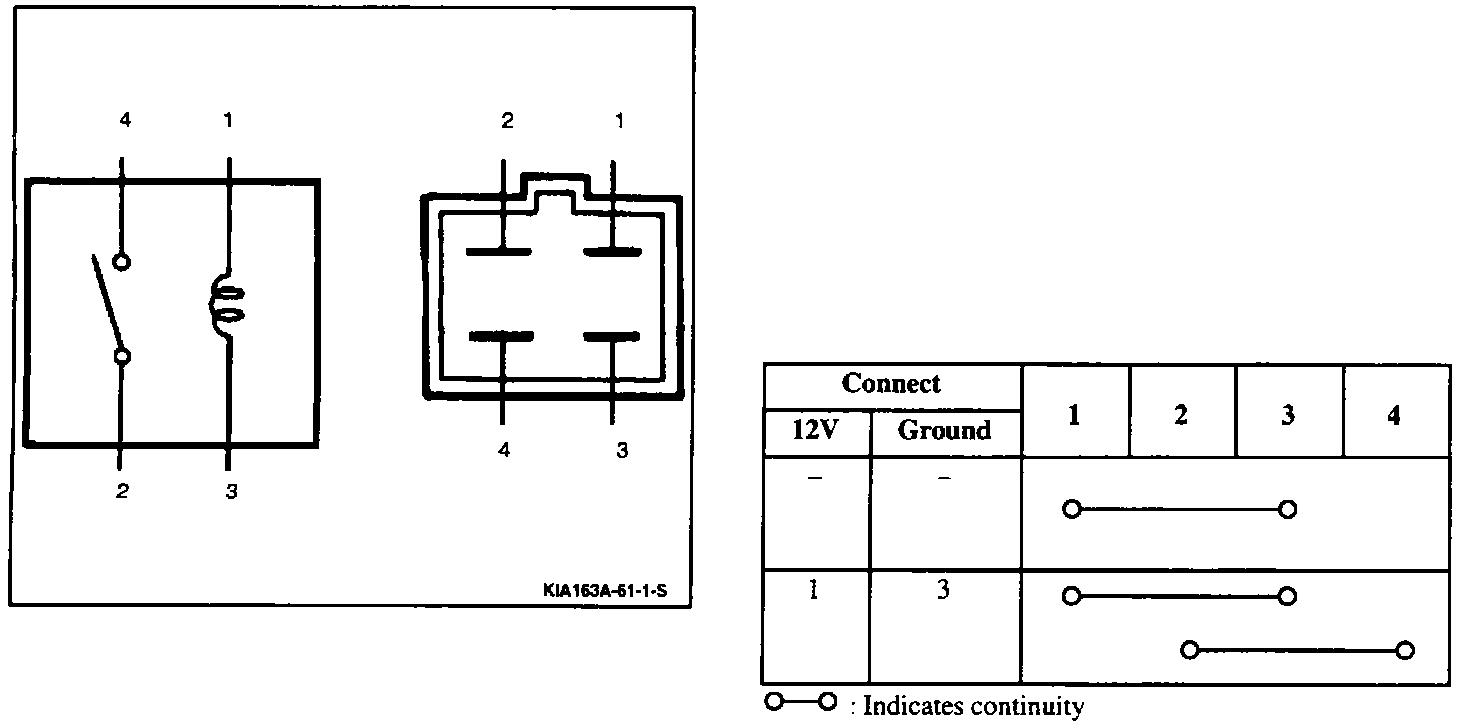

Circuit Testing-Rear Window Defroster Relay:
1.
Disconnect the rear window defroster relay connector and remove the relay.
2.
Check for continuity between the terminals of the relay.
