Home >> Kia >> 1995 >> Sephia Sedan L4-1.8L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Locations >> Power Distribution >> From VIN S5220000

From VIN S5220000

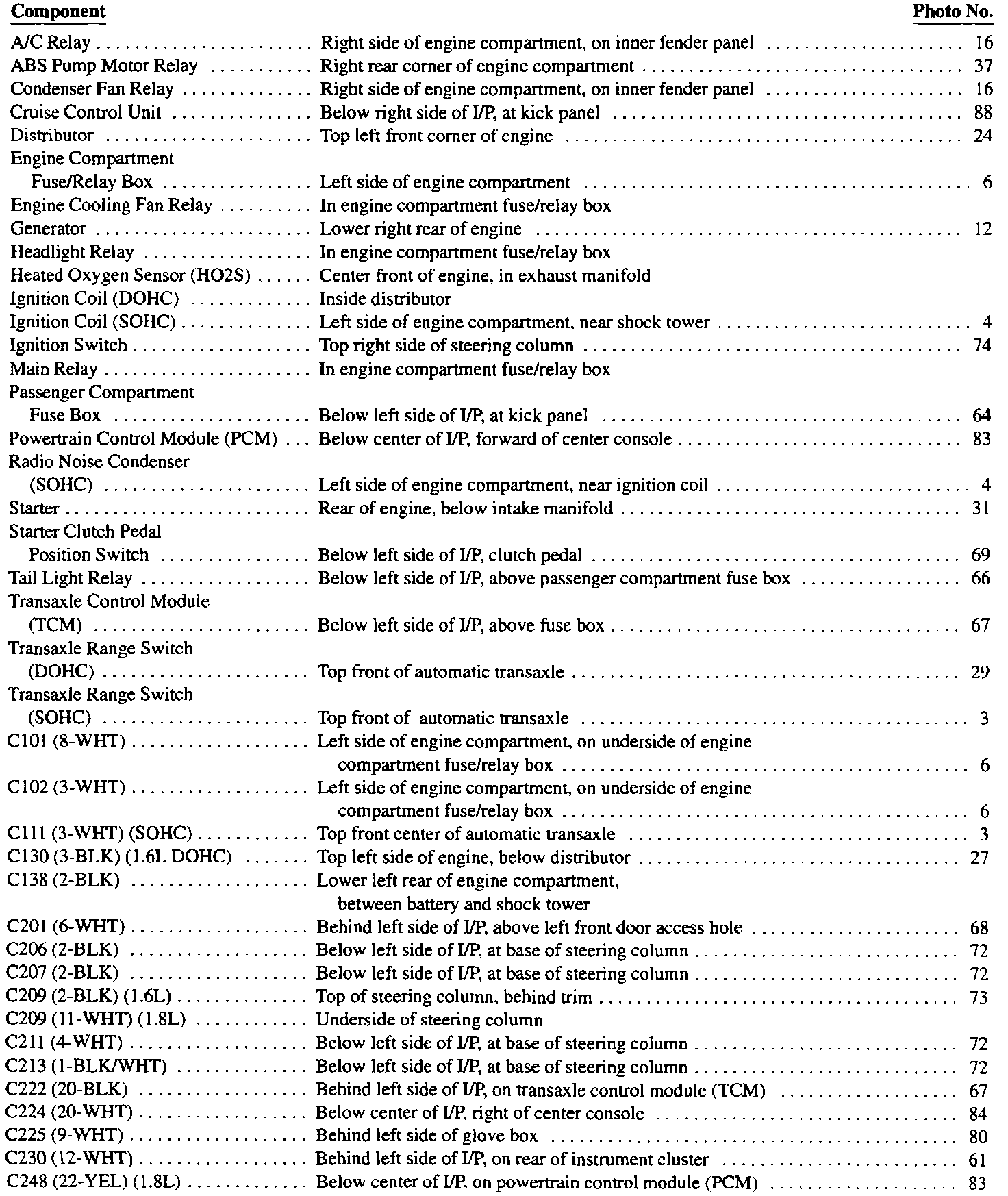

Power Distribution-Component Location Index (Part 1 Of 2):

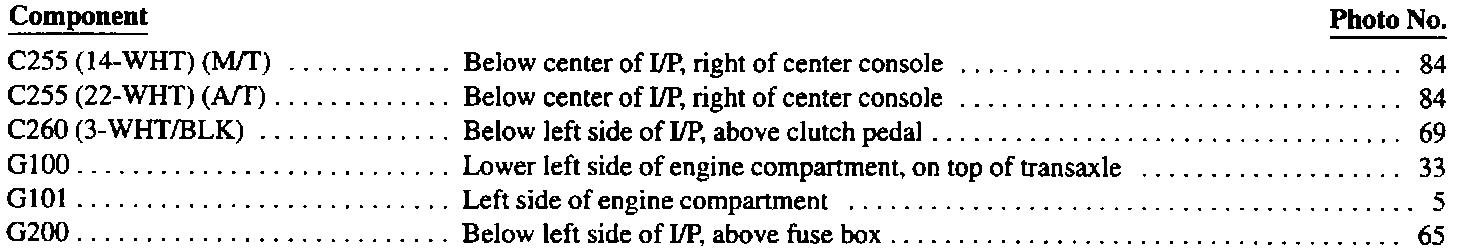

Power Distribution-Component Location Index (Part 2 Of 2):
