Female Type

Replacement Of Terminals-Female Type:

Use the appropriate tools to remove the terminal, as shown in the illustrations.

Note: When installing a terminal, be sure to press it in until it locks securely.

Female type

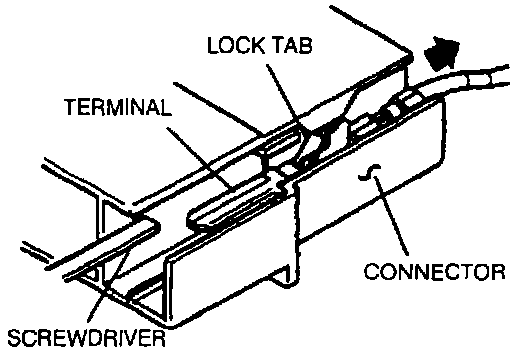

Insert push-tool, or thin piece of metal such as a small screwdriver, from the terminal side of the connector, and then with the locking tabs pressed down, pull the terminal out from the rear side of the connector.
