From VIN S5220000

Circuit Testing-Master Power Window Switch:




1. Remove screw in bottom of door pull. Using a clean, thin, flat blade screw driver, gently pry the switch assembly (from the rear) out of the door's arm rest. Take care not to damage or mar the arm rest. Disconnect the Master Power Window Switch Connector, C504.

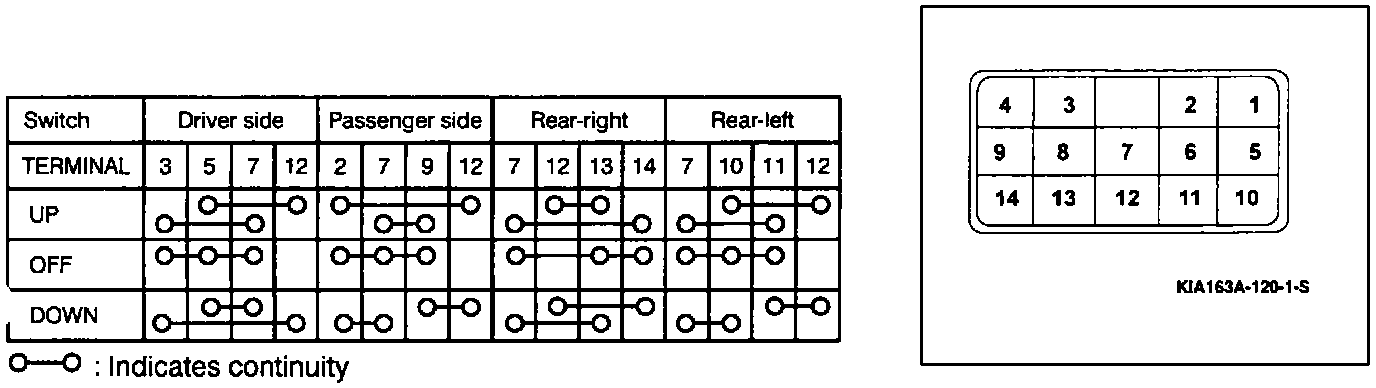

2. Check between the terminals of the Master Power Window Switch for continuity as indicated.
3. If continuity is not as specified, replace the Master Power Window Switch.
