Trunk Lamp Switch: Testing and Inspection

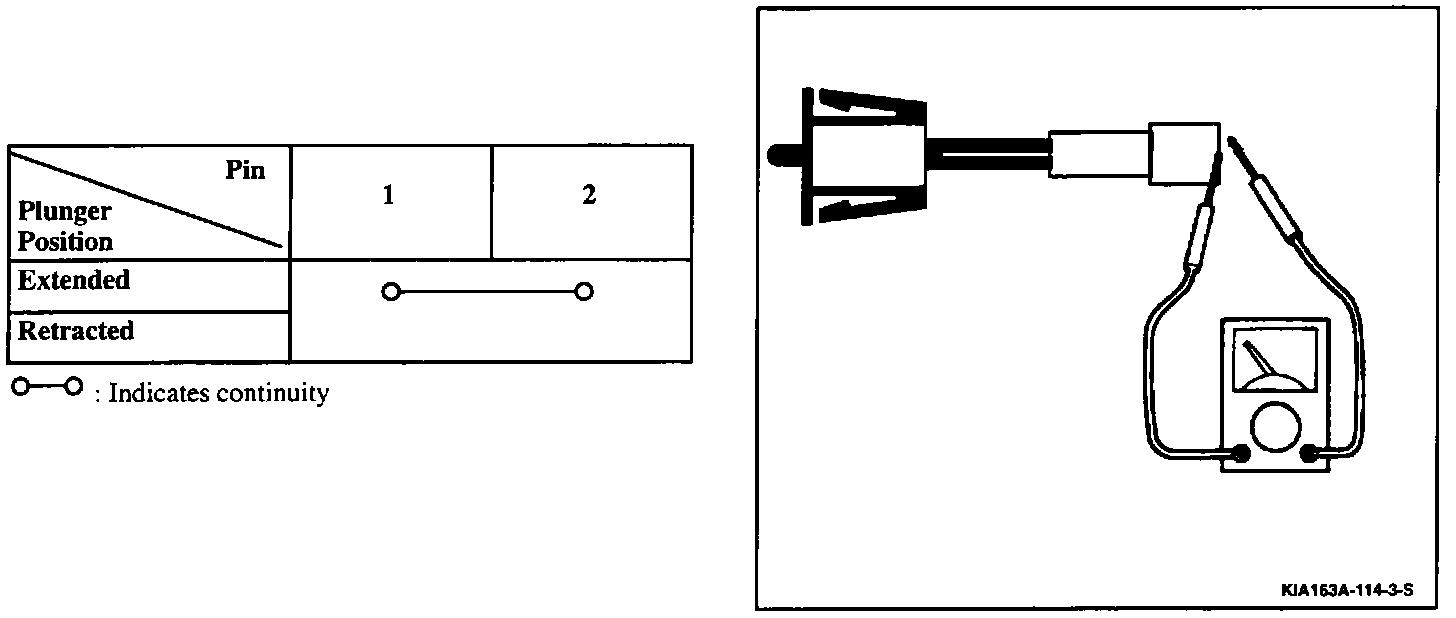

Circuit Testing-Trunk Light Switch:




1. Check for continuity between the trunk switch as indicated.
