Combination Switch
>>
Testing and Inspection
>>
From VIN S5220000
From VIN S5220000
Circuit Testing-Combination Switch:
1.
Disconnect the wiper/washer switch connector (C216).
2.

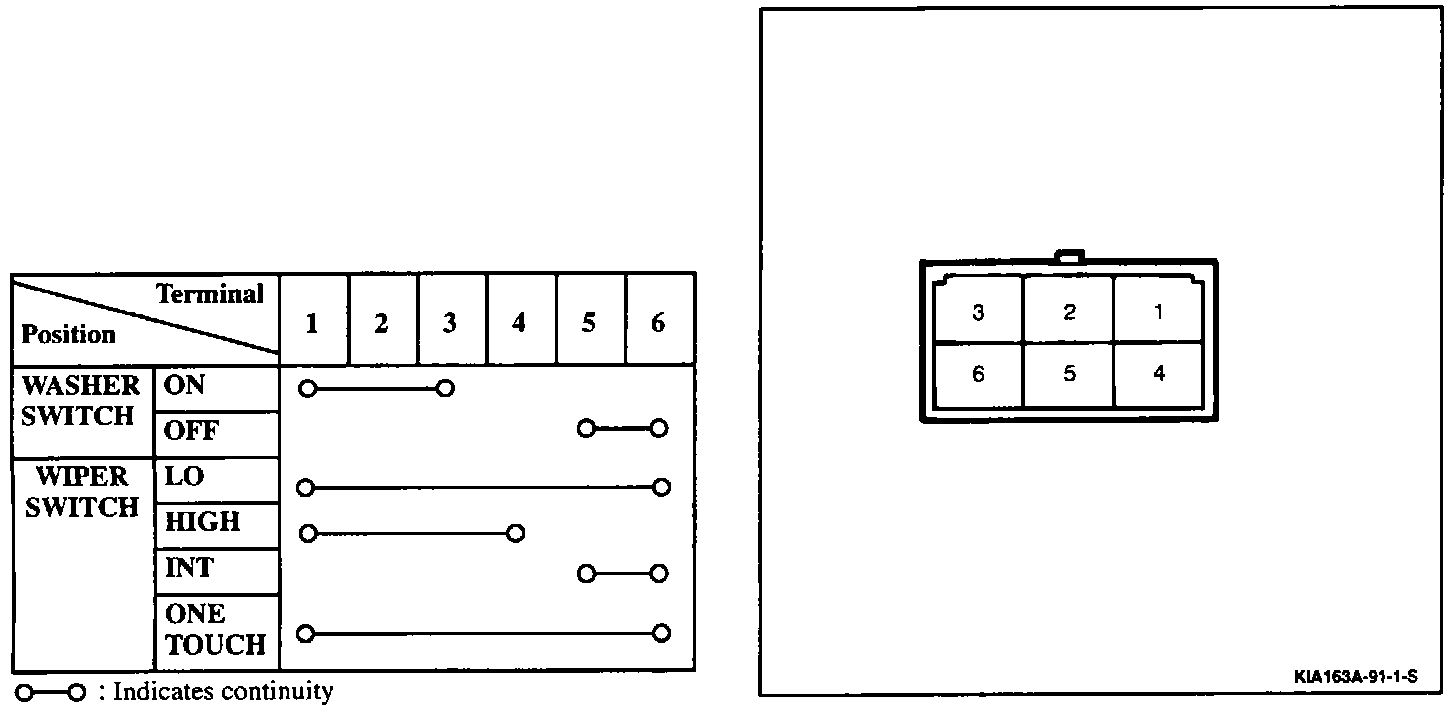

Check for continuity between terminals as indicated.
3.
If not as specified, replace the wiper/washer switch.
