From VIN S5220000

Back-Up Lights-Circuit Testing:

Manual Transaxle
1. Remove the back-up light switch connector.
2. Shift to the reverse position.

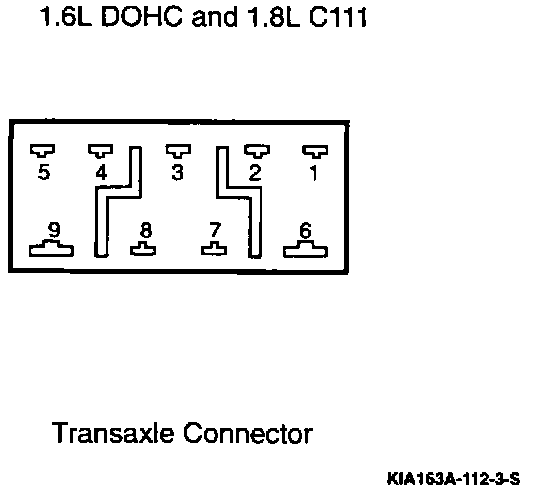

3. Confirm continuity between C148/2 (BLK/YEL) and C148/4 (RED/WHT) wire of the transaxle connector.

Circuit Testing-Back-up Light Switch A/T:

Automatic Transaxle
1. Disconnect the transaxle range switch connector.
2. Check for continuity between terminals, as indicated.

Circuit Testing-Back-up Light Switch A/T:

3. If continuity is not as specified, replace the switch and perform adjustment of the transaxle range switch.
4. If correct, check or adjust the selector lever.
