Home >> Kia >> 1995 >> Sephia Sedan L4-1.8L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Instrument Panel >> Key Reminder Switch >> Locations >> Ign Key Warning/Illu, Fasten Belt Indicator & LTS on Warning >> From VIN S5220000

From VIN S5220000

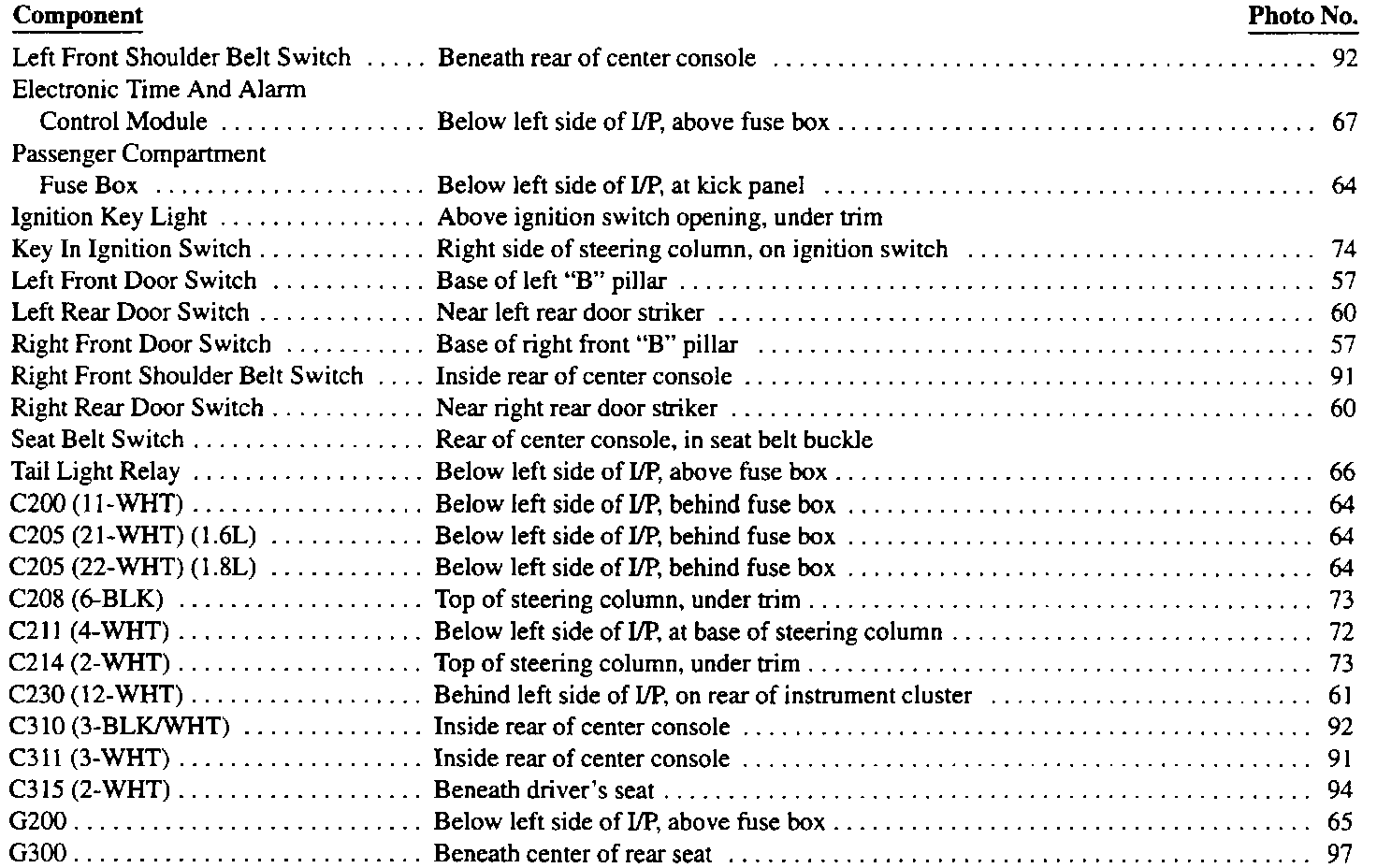

Ignition Key Warning, Ignition Key Illumination, Fasten Belts Indicator And Lights ON Warning-Component Location Index:
