Home >> Kia >> 1995 >> Sephia Sedan L4-1.8L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Instrument Panel >> Key Reminder Switch >> Diagrams >> Electrical Diagrams >> From VIN S5220000

From VIN S5220000

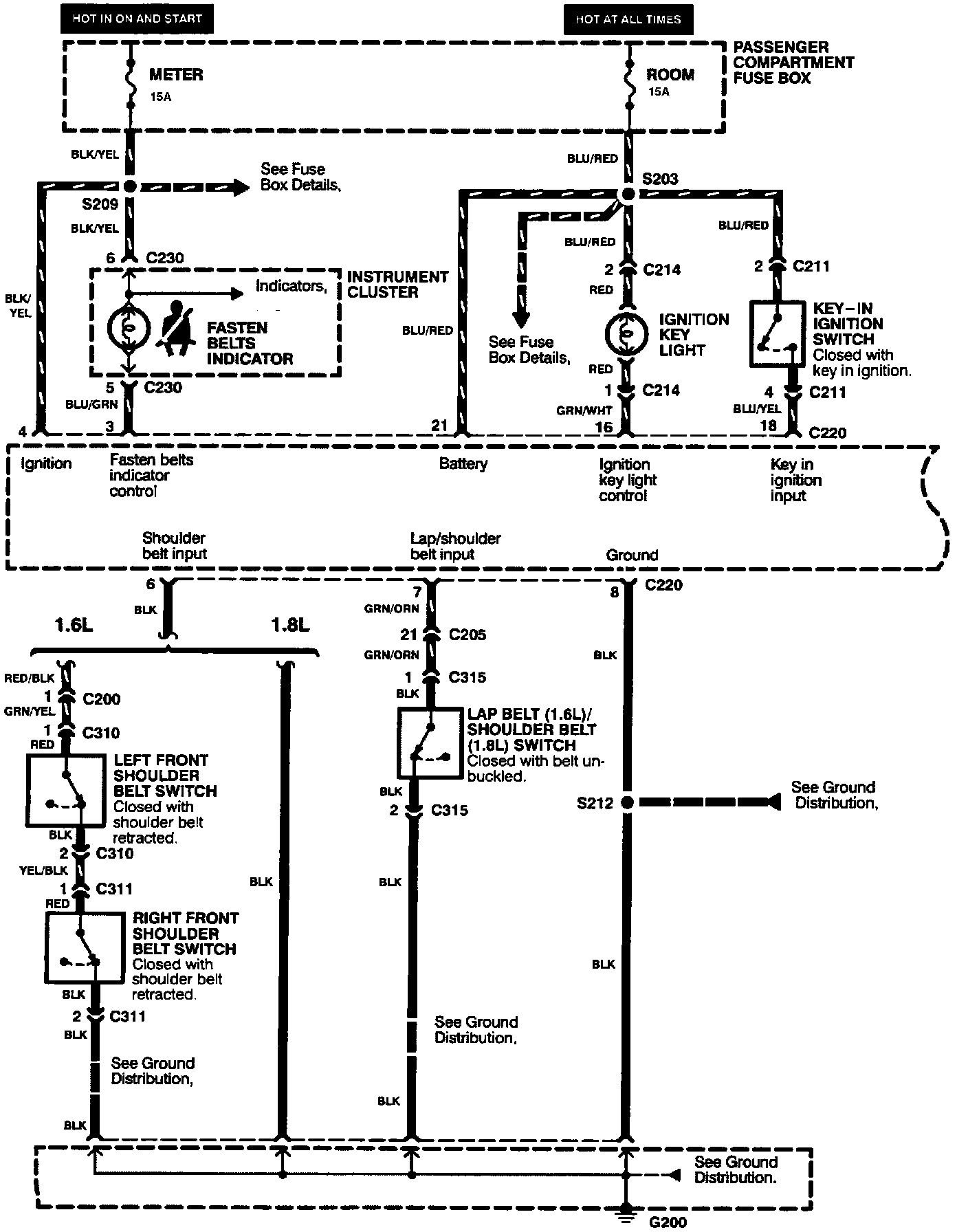

Ignition Key Warning, Ignition Key Illumination, Fasten Belts Indicator And Lights ON Warning (Part 1 Of 2):



Ignition Key Warning, Ignition Key Illumination, Fasten Belts Indicator And Lights ON Warning (Part 2 Of 2):
