From VIN S5220000

Circuit Testing-Fuel Gauge Sender Unit:

1. Turn the ignition switch to ON.

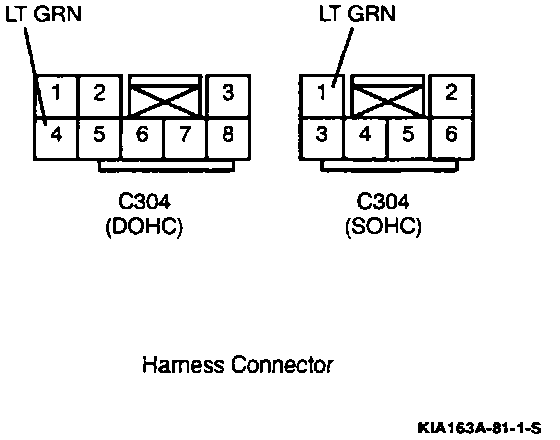

2. Disconnect C304 at the fuel tank access cover.
3. Ground the LT GRN wire and verify that the fuel gauge reads full.
4. If the gauge does not read full, check/repair wiring and/or fuel gauge.
5. If fuel gauge does read full, go to next step.

Circuit Testing-Fuel Gauge Sender Unit:

6. Remove the fuel tank access cover and disconnect C317 from the fuel tank unit.

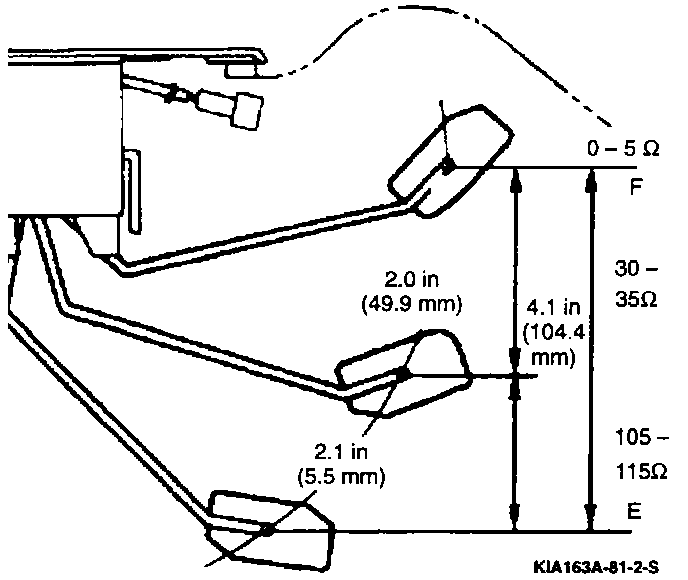

7. Measure resistance between pins 3 and 4 of C317 while moving fuel level float from Point E to Point F.
8. If the resistance is not within the specified range, replace the sender unit.
