Engine - Coolant Temperature Sensor/Switch: Testing and Inspection

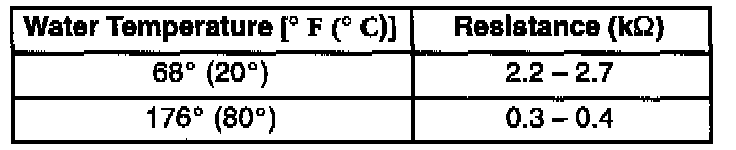

Spec Chart:

Test:

Sensor Replacement:

INSPECTION

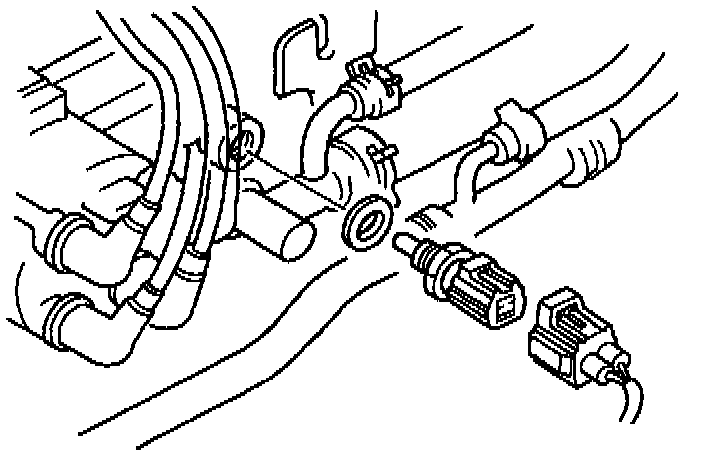

1. Remove the engine coolant temperature sensor.

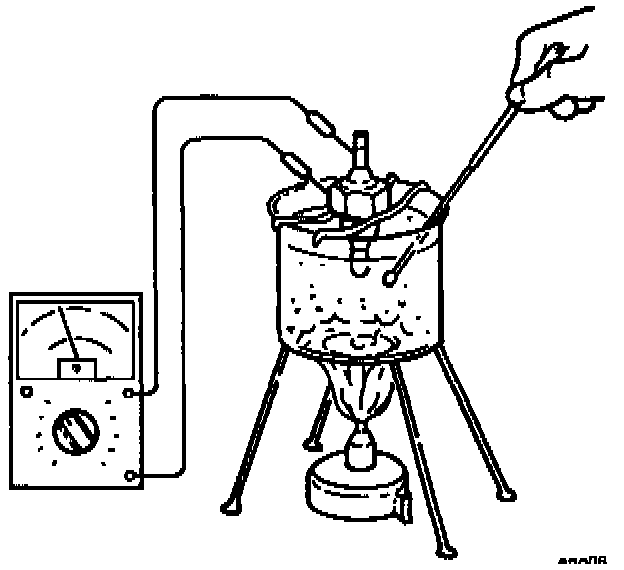

2. Place the sensor in water with a thermometer, and heat the water gradually.
3. Measure the resistance of the sensor using an ohmmeter.
4. If not as specified, replace the engine coolant temperature sensor.
