Up to VIN S5219999

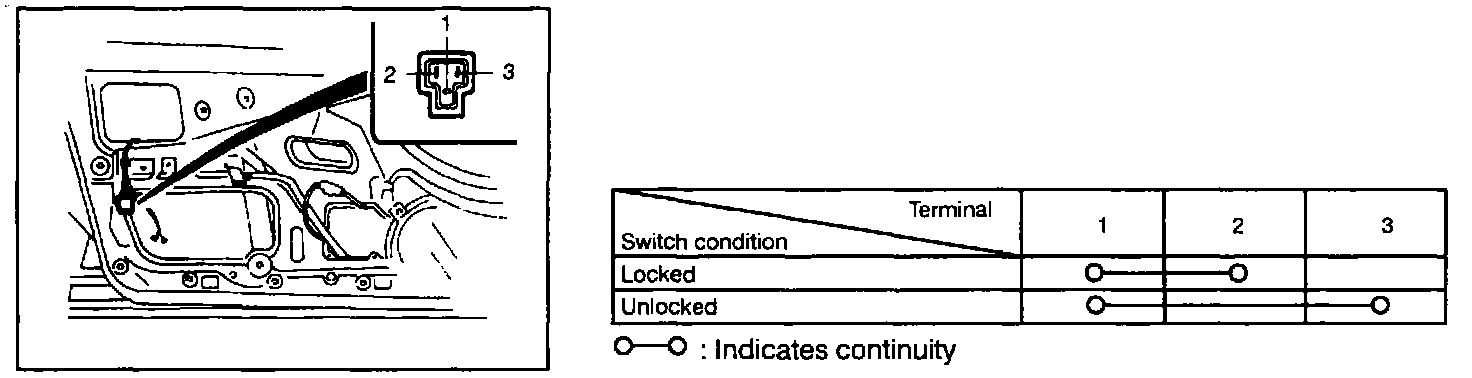

Circuit Testing-Door Knob Lock Switch:




1. Disconnect the door knob lock switch connector.
2. Check for continuity between terminals of the switch using an ohmmeter.
3. If not as specified, replace the door knob lock switch.
