Home >> Kia >> 1995 >> Sephia Sedan L4-1.8L >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Locations

Air Bag Systems: Locations

Air Bag-Supplemental Restraint System-Component Location Index / From VIN S5220000:

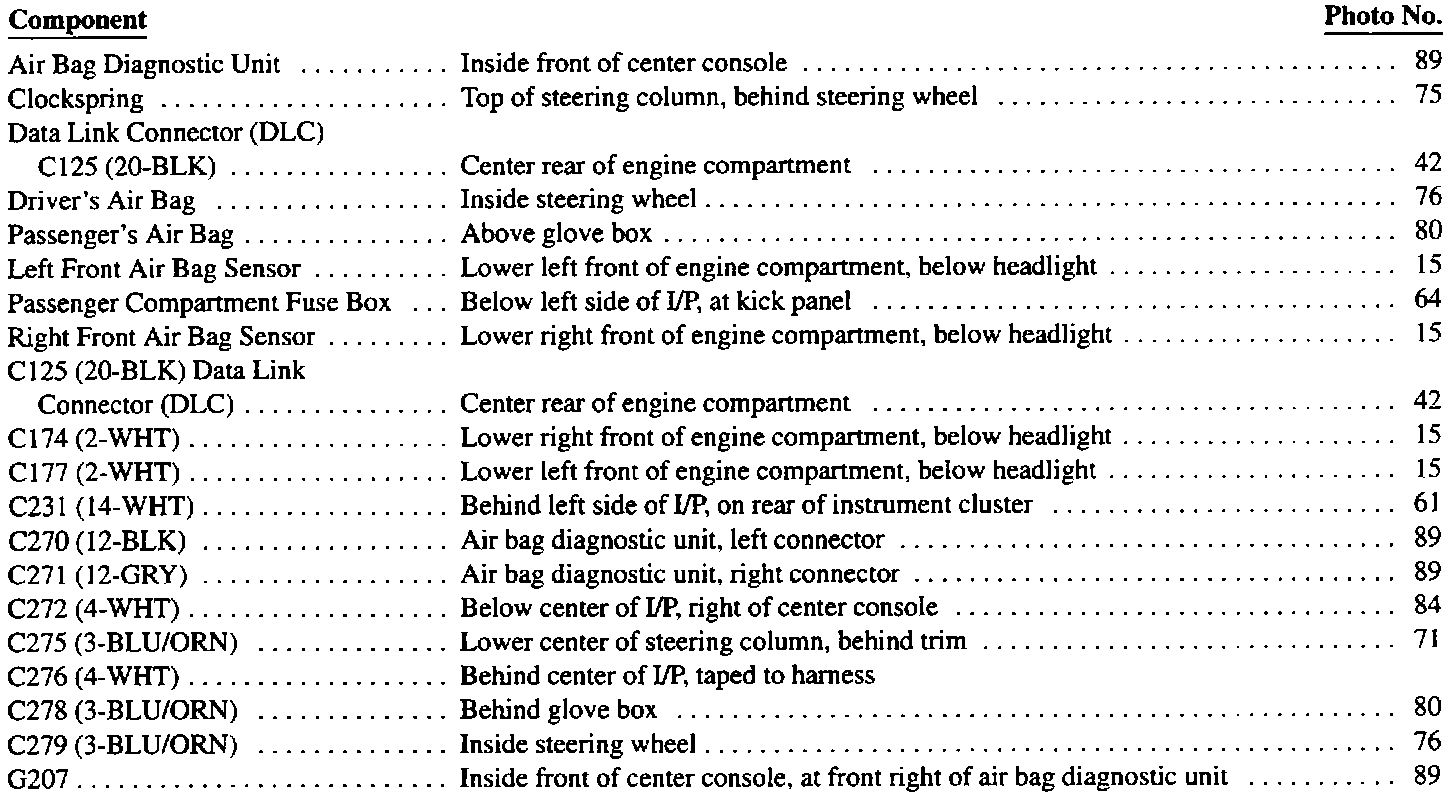

Fig. 1 SRS Component Locations:
