Interior Lighting Module
>>
Testing and Inspection
>>
Instrument Panel Lights Do Not Dim
Instrument Panel Lights Do Not Dim

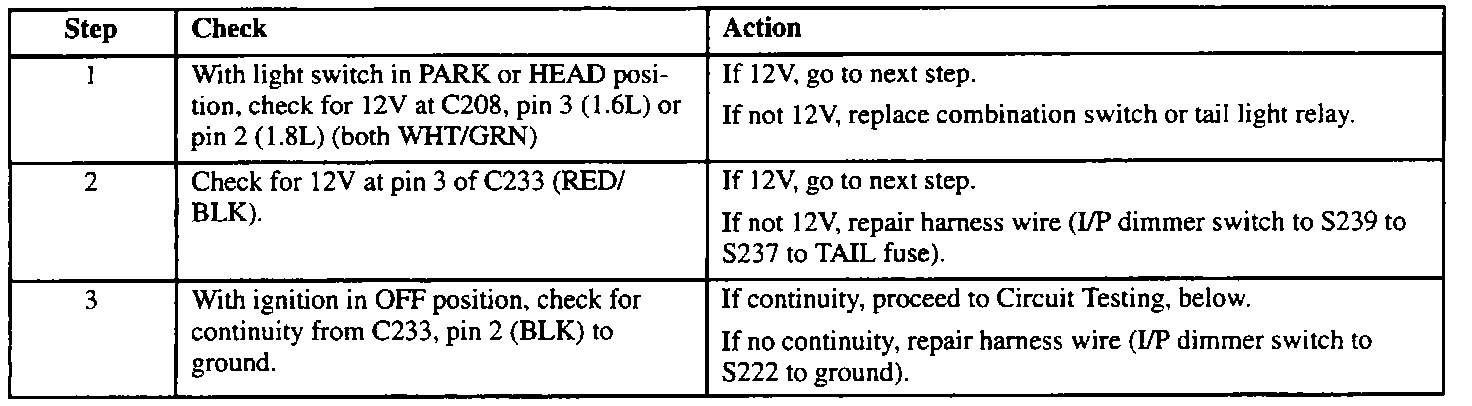

Troubleshooting:
Preliminary Check
: Check TAIL fuse. If open, locate source of overload and repair. Replace fuse.
