Home >> Kia >> 1995 >> Sephia Sedan L4-1.8L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Interior Lighting Module >> Diagrams >> Electrical Diagrams >> Interior Lights >> Up to VIN S5219999

Up to VIN S5219999

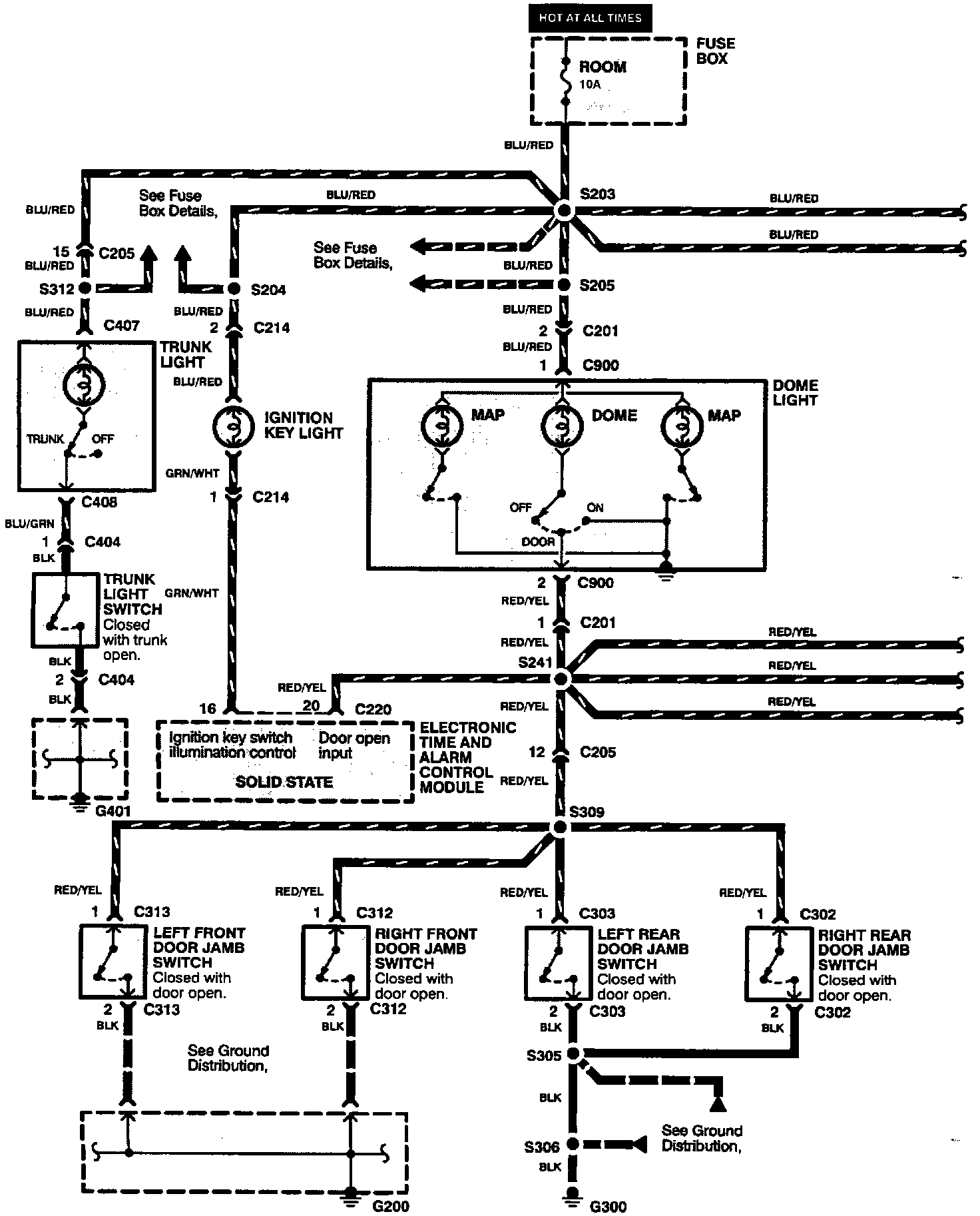

Interior Lights (Part 1 Of 2):

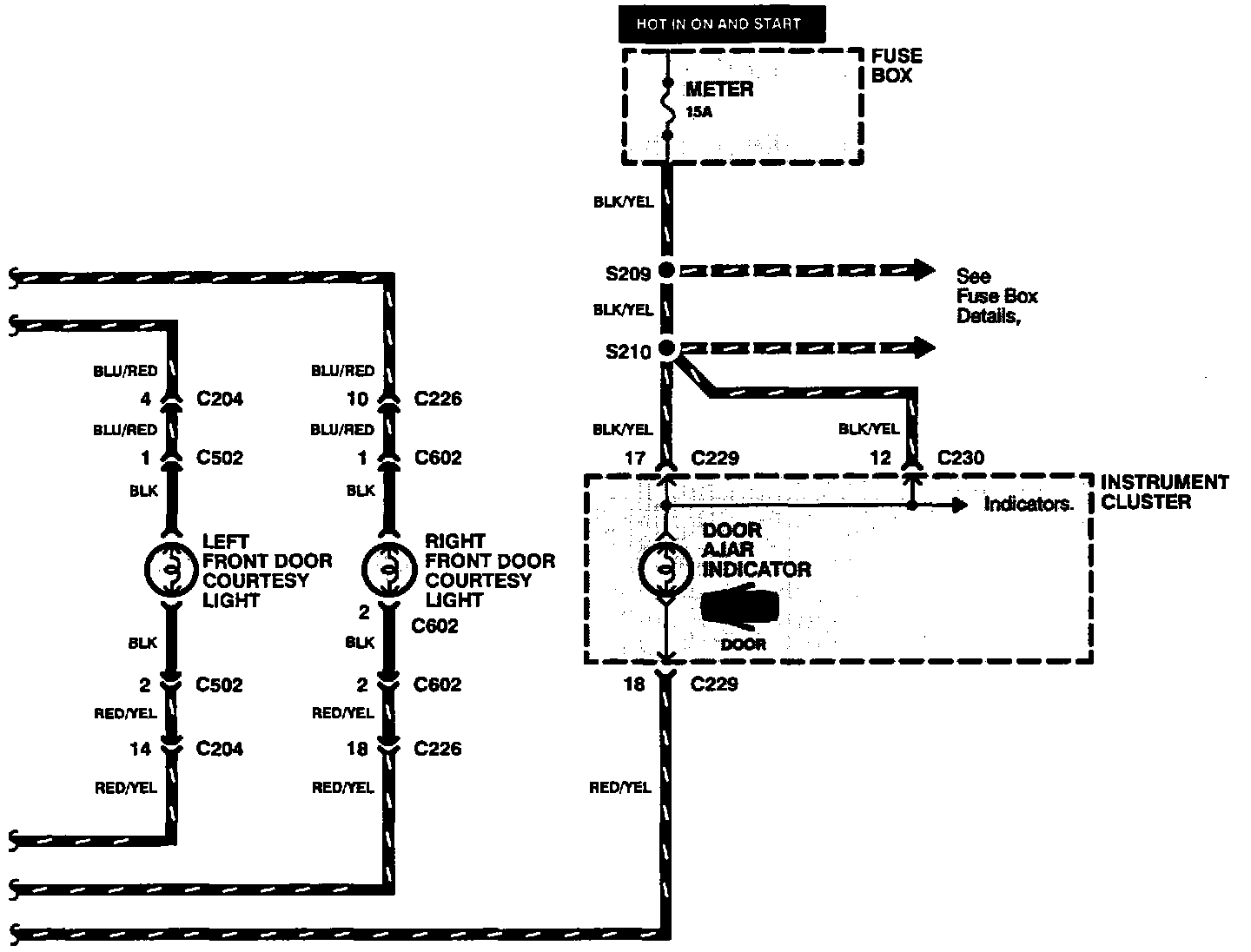

Interior Lights (Part 2 Of 2):
