Horn Relay
>>
Testing and Inspection
Horn Relay: Testing and Inspection
Horn-Circuit Testing:
1.
Disconnect the
horn relay
connector and remove the relay.
2.

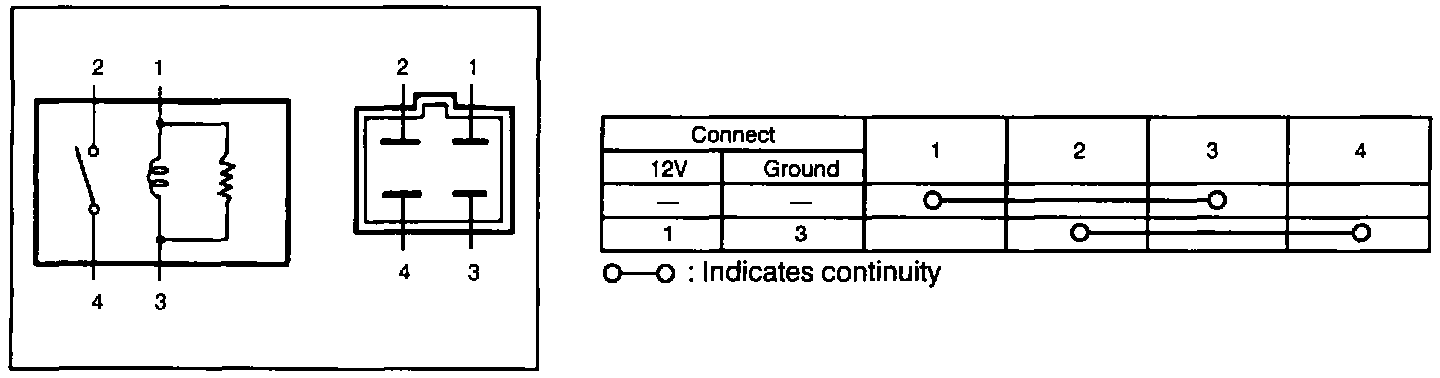

Check for continuity between terminals of the relay.
