From VIN S5220000

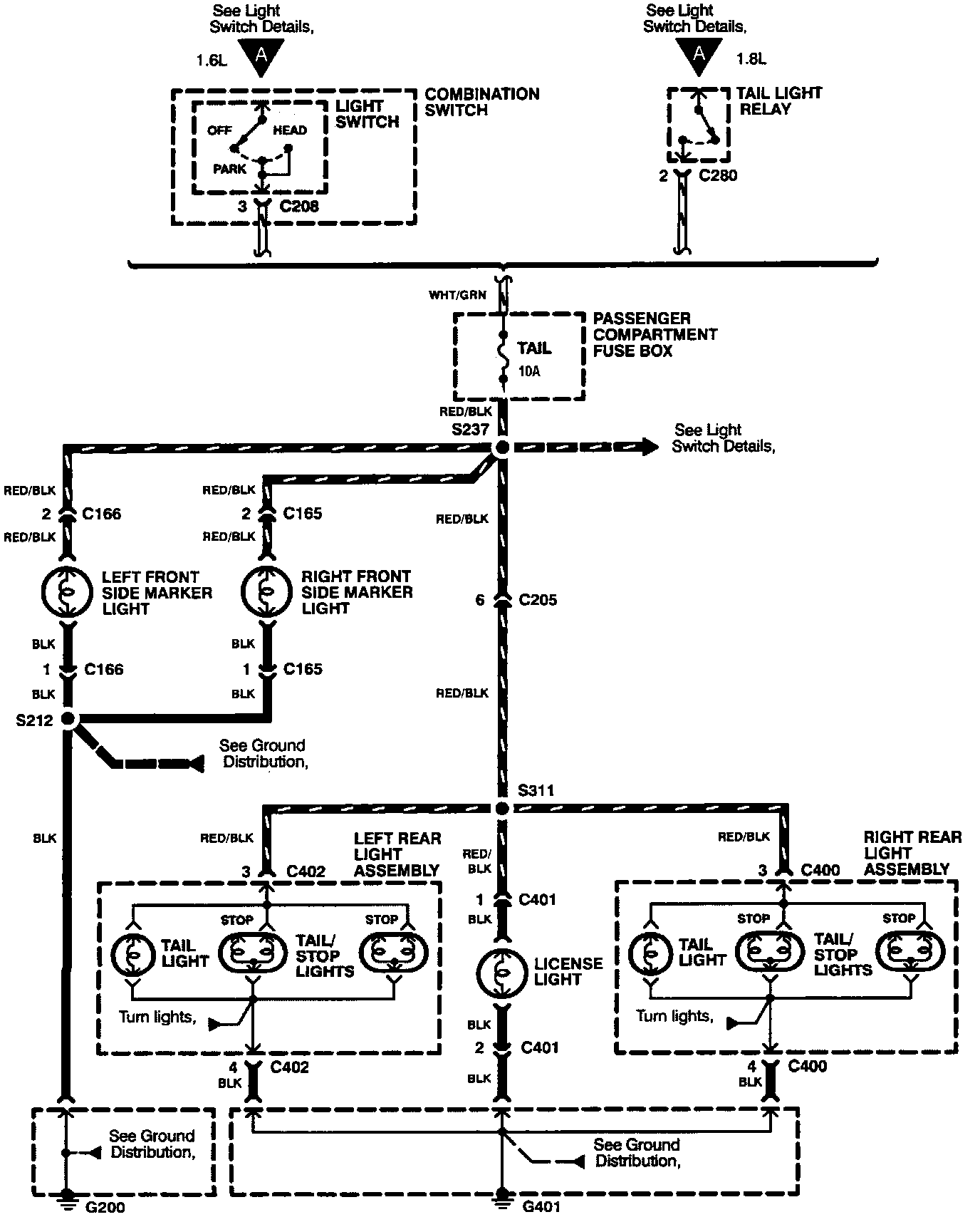

Exterior Lights-Stop, Front Side Marker And Tail (Part 1 Of 4):

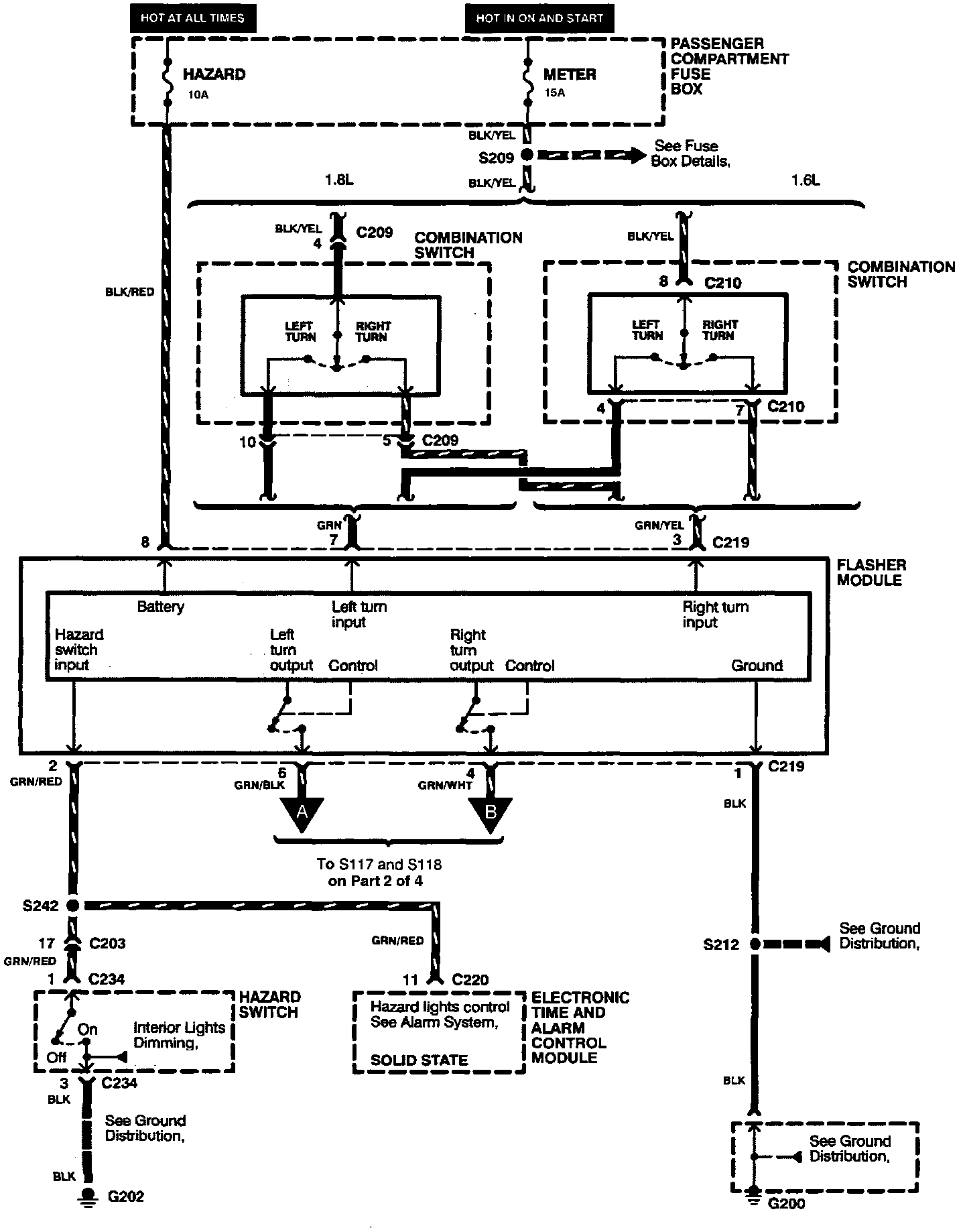

Exterior Lights-Stop, Front Side Marker And Tail (Part 2 Of 4):

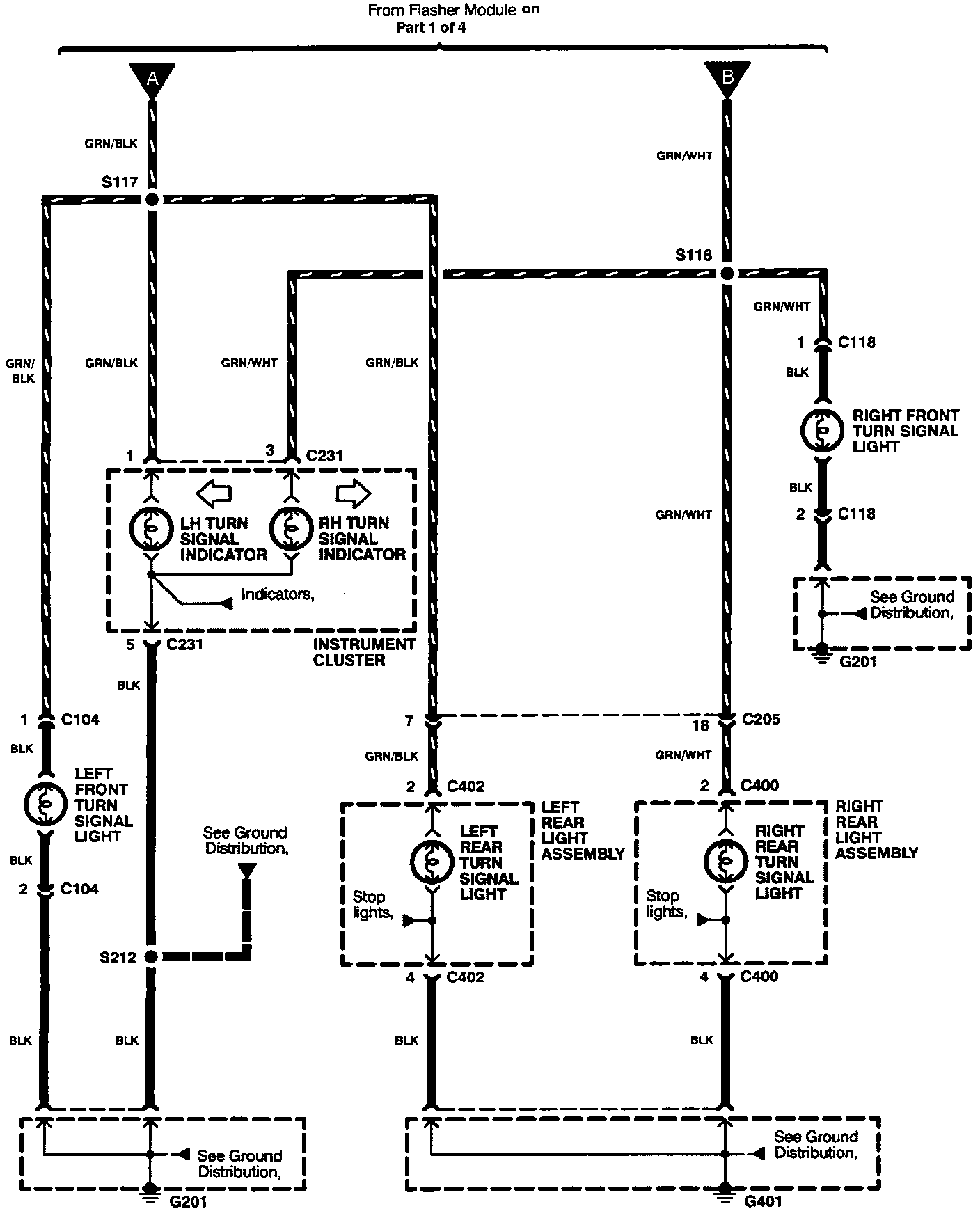

Exterior Lights-Stop, Front Side Marker And Tail (Part 3 Of 4):

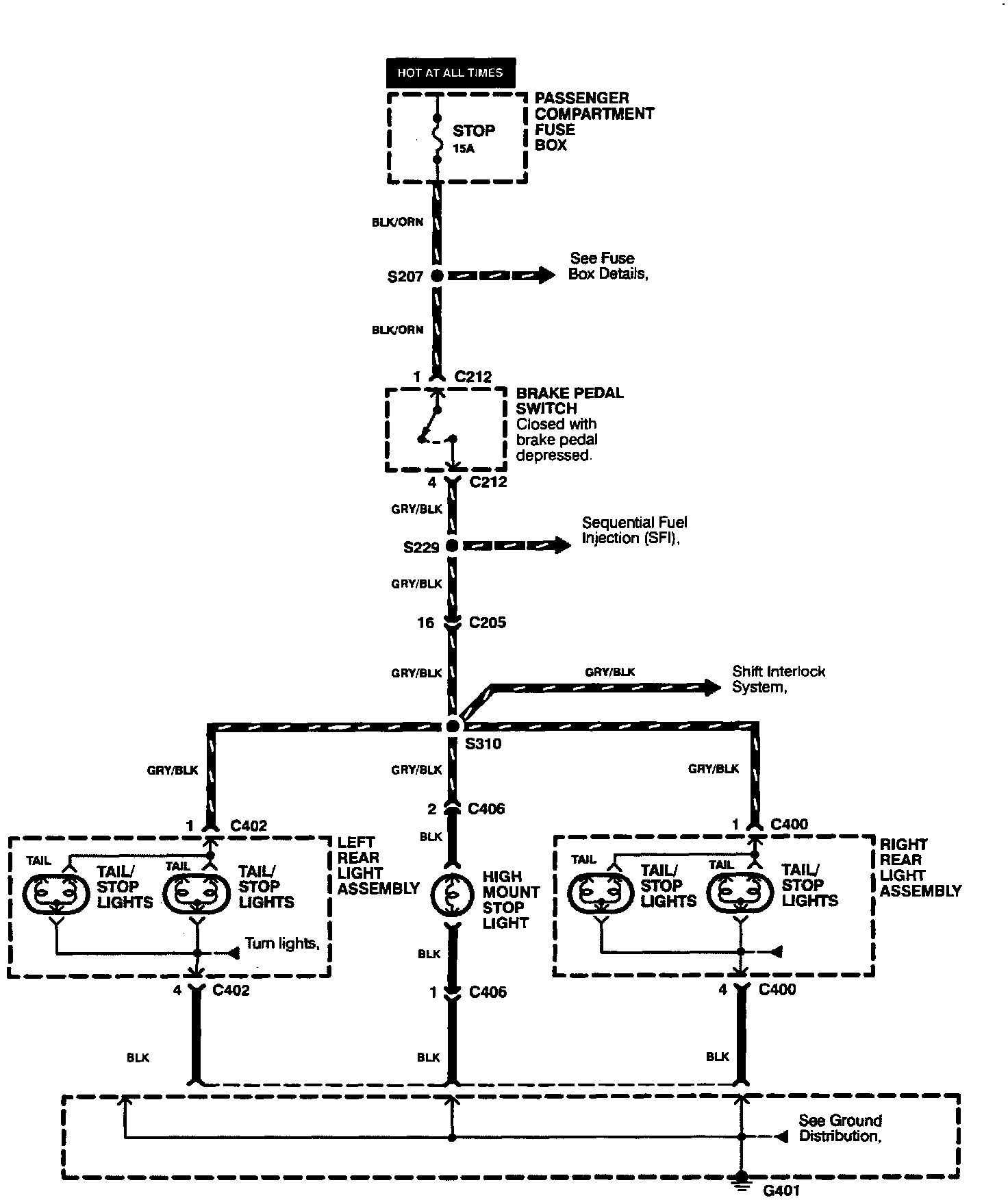

Exterior Lights-Stop, Front Side Marker And Tail (Part 4 Of 4):
