From VIN S5220000

Circuit Testing-A/C Relay:

Circuit Testing-A/C Relay:

Circuit Testing-A/C Relay:

1. Disconnect the A/C relay connector.

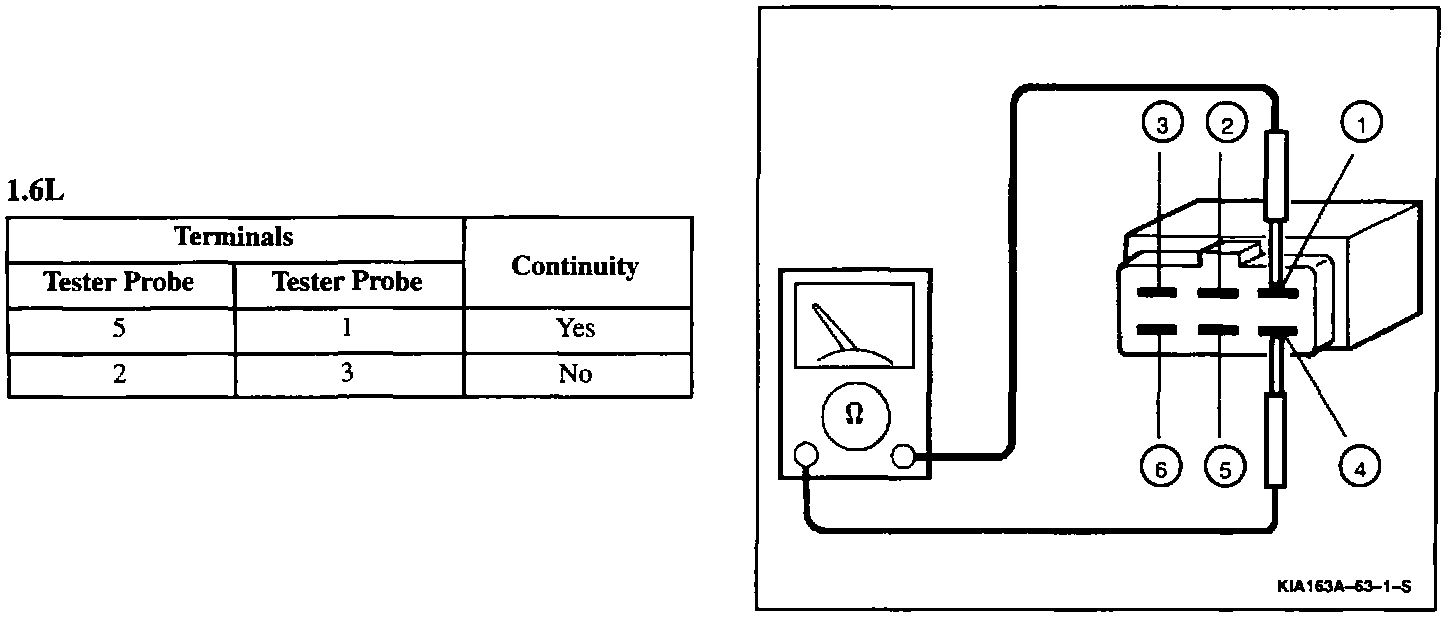

2. Check continuity between terminals.
3. If not as specified, replace the relay.
4. If correct, go to next step.

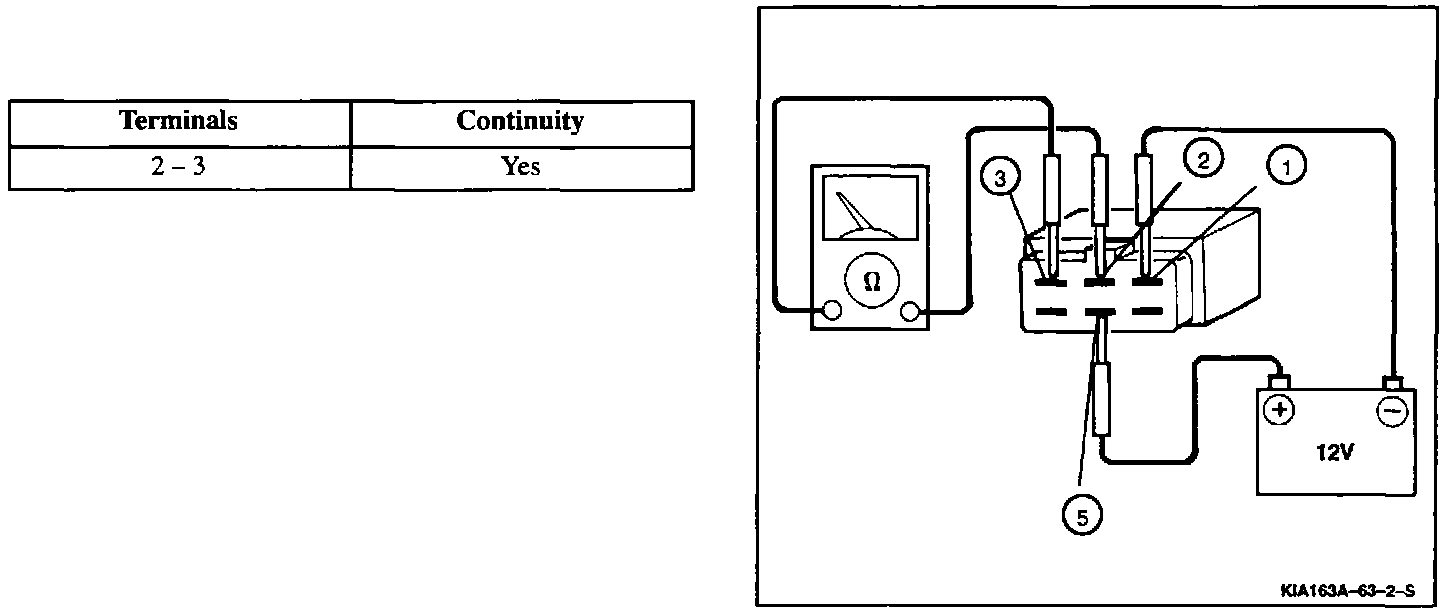

5. Apply 12V to terminal 5 and ground terminal 1.
6. Check for continuity between terminals 2 and 3.
7. If not as specified, replace the relay.
