Variable Induction Control Valve: Testing and Inspection
Description:
Description:
1.

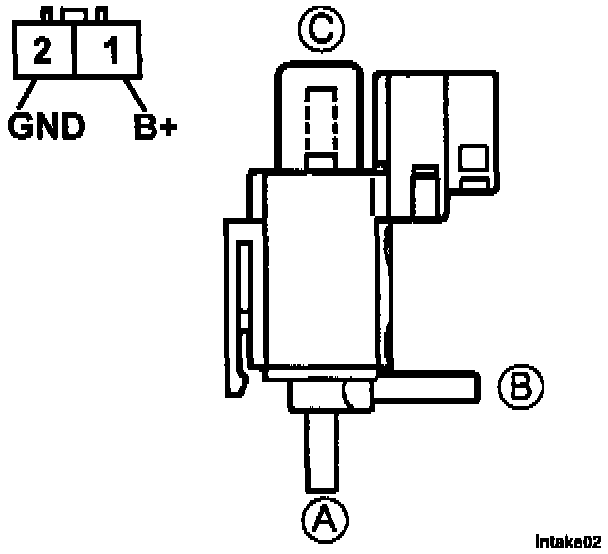

Remove the VICS solenoid valve.
2.

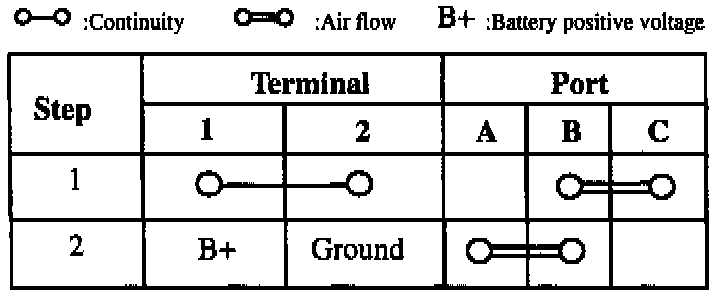

Check for continuity and air flow.
3.
If not as specified, replace the VICS solenoid valve.
