Dynamic Chamber

Description:

REMOVAL / INSPECTION / INSTALLATION
1. Drain engine coolant.
2. Remove in the order shown in the figure, referring to Removal notes.
3. Inspect the intake air system components visually and repair or replace if necessary.
4. Install in the reverse order of removal, referring to Installation notes.

Description:

REMOVAL NOTE

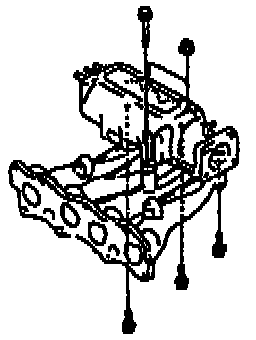

1. Raise the vehicle to remove the three lower bolts shown in the image.
