Canister Purge Solenoid: Testing and Inspection

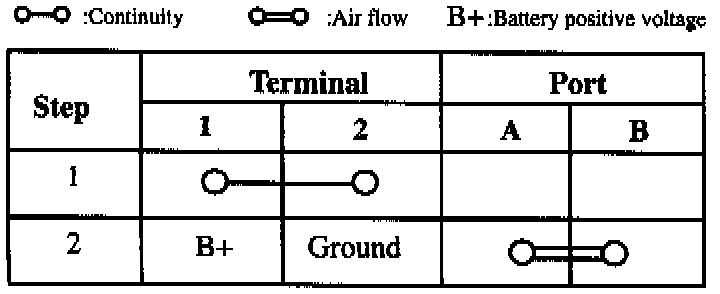

Spec Chart:

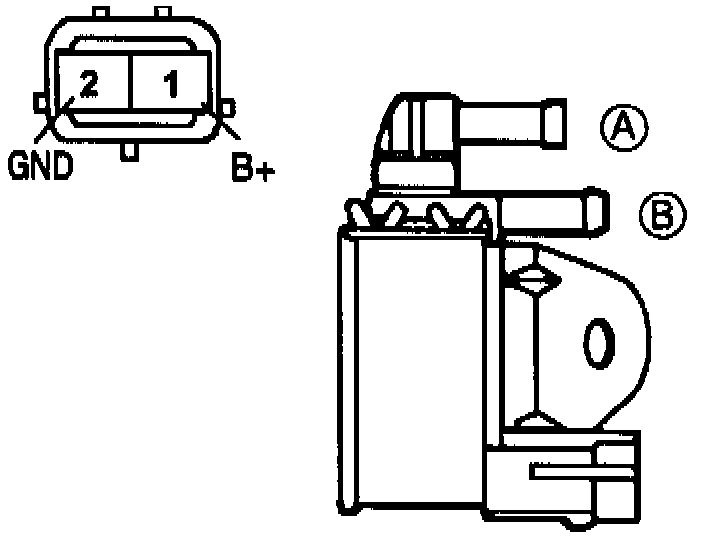

Connector View:

INSPECTION
1. Remove the purge solenoid valve.
2. Check for continuity and air flow between ports A and B of the solenoid valve.
3. If not as specified, replace the purge solenoid valve.
