Diagram Information and Instructions

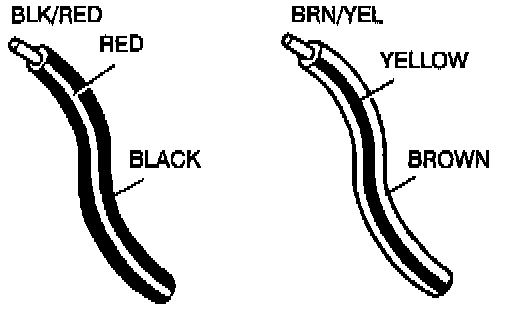

Example:

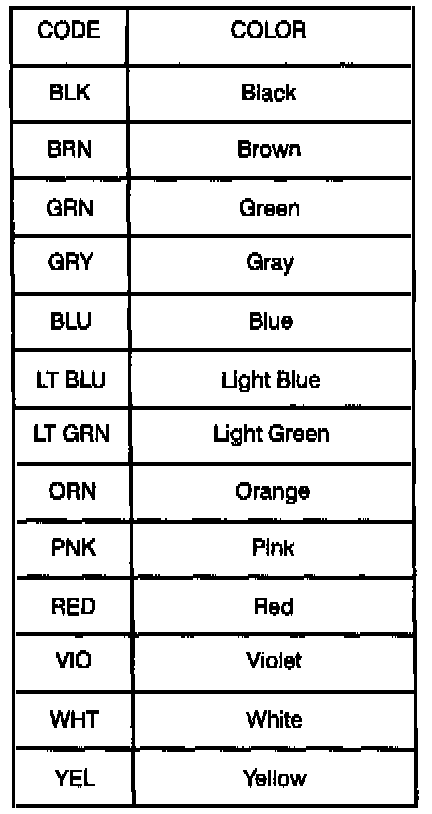

Chart:
WIRING COLOR CODES
Two-color wires are indicated by a two-color code symbol. The first color indicates the base color of the wire; the second color indicates the color of the stripe.
WIRING COLOR CODES
Two-color wires are indicated by a two-color code symbol. The first color indicates the base color of the wire; the second color indicates the color of the stripe.
