Home >> Kia >> 1995 >> Sephia Sedan L4-1.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Charts >> 6 - Rough Idle, Idles Low/Engine Stalls or Vibrates

6 - Rough Idle, Idles Low/Engine Stalls or Vibrates

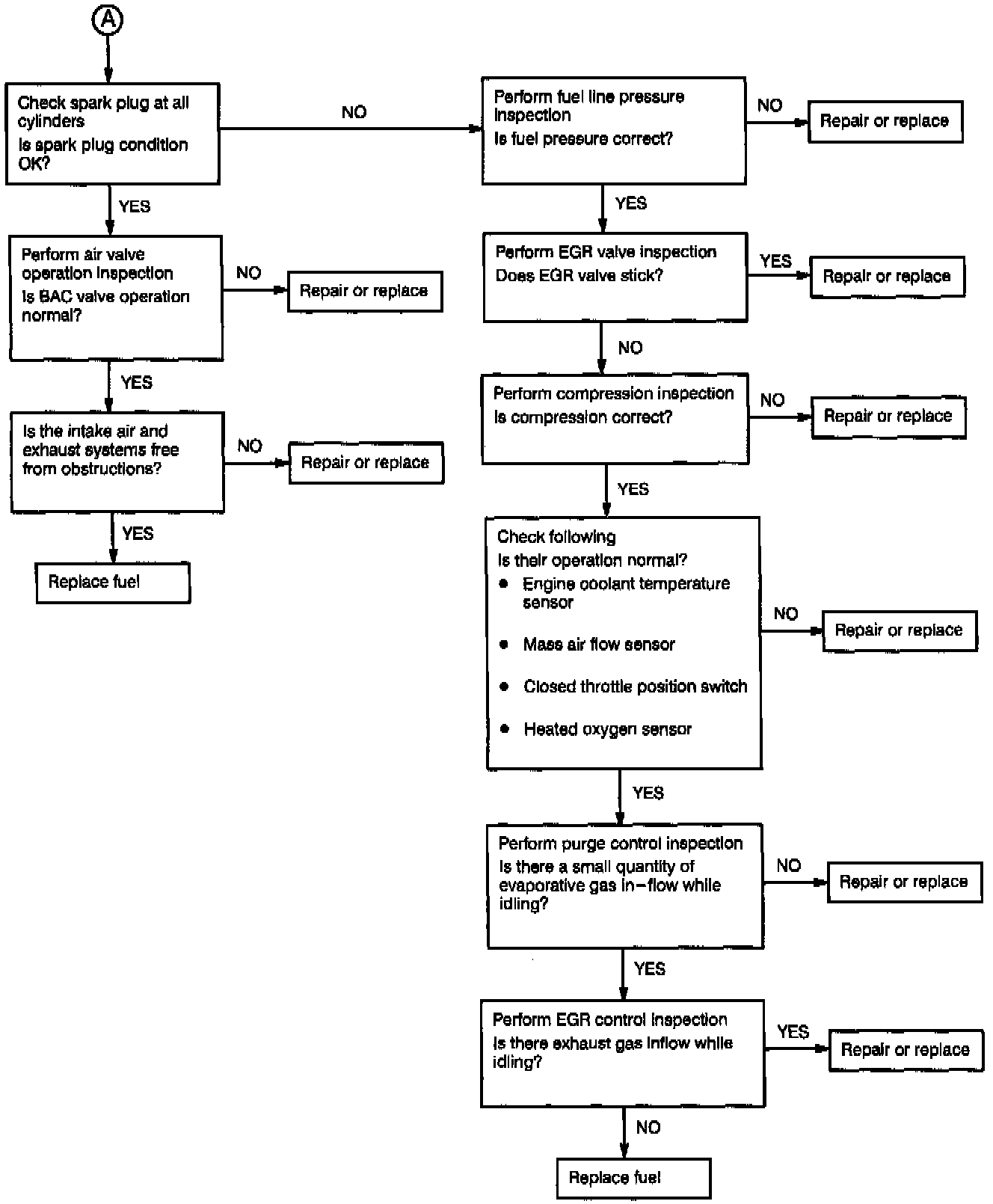

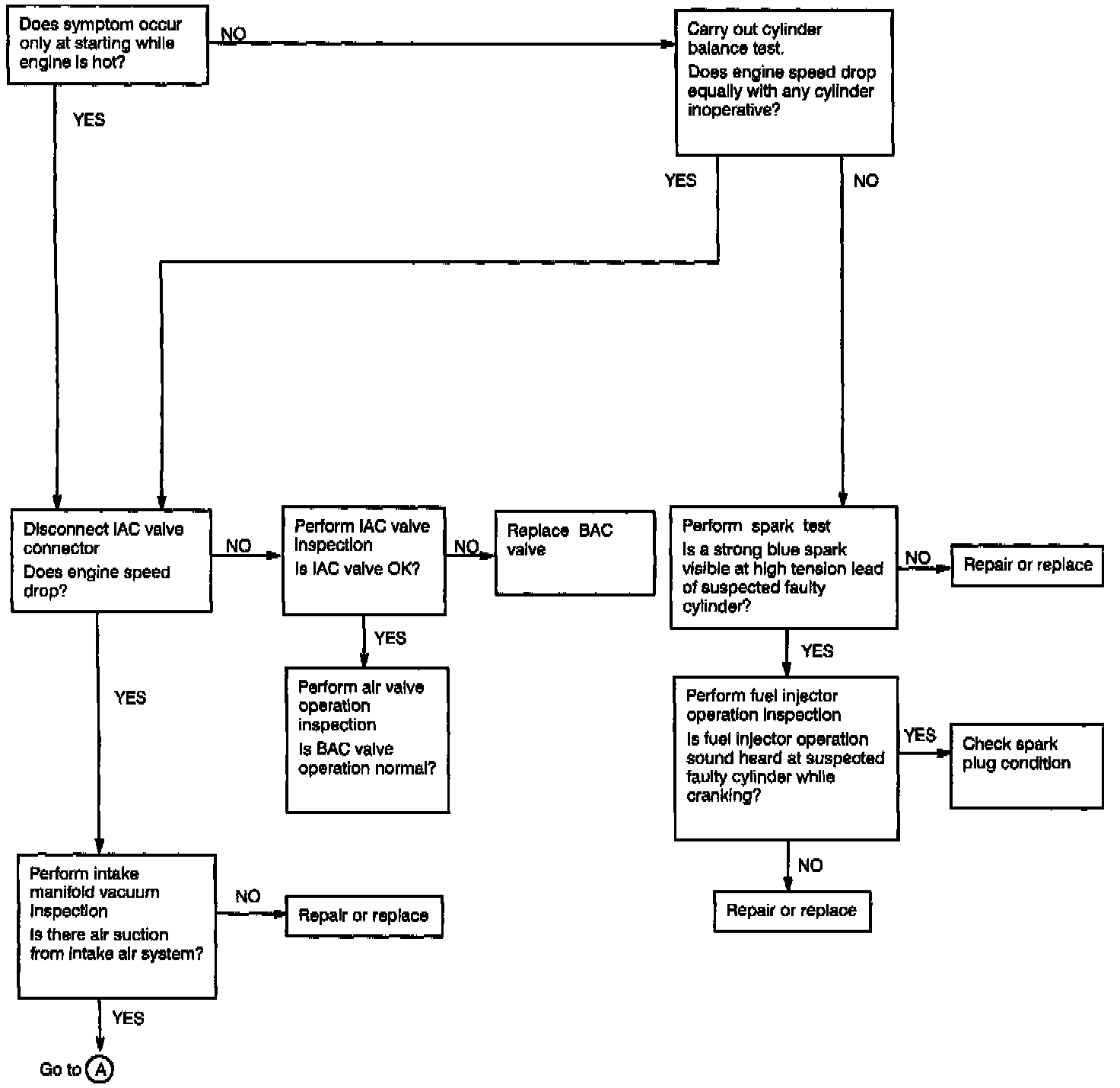

Diagnostic Chart:



Diagnostic Chart:
