Home >> Kia >> 1995 >> Sephia Sedan L4-1.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Charts >> 4 - Won't Start, Combustion Occurs

4 - Won't Start, Combustion Occurs

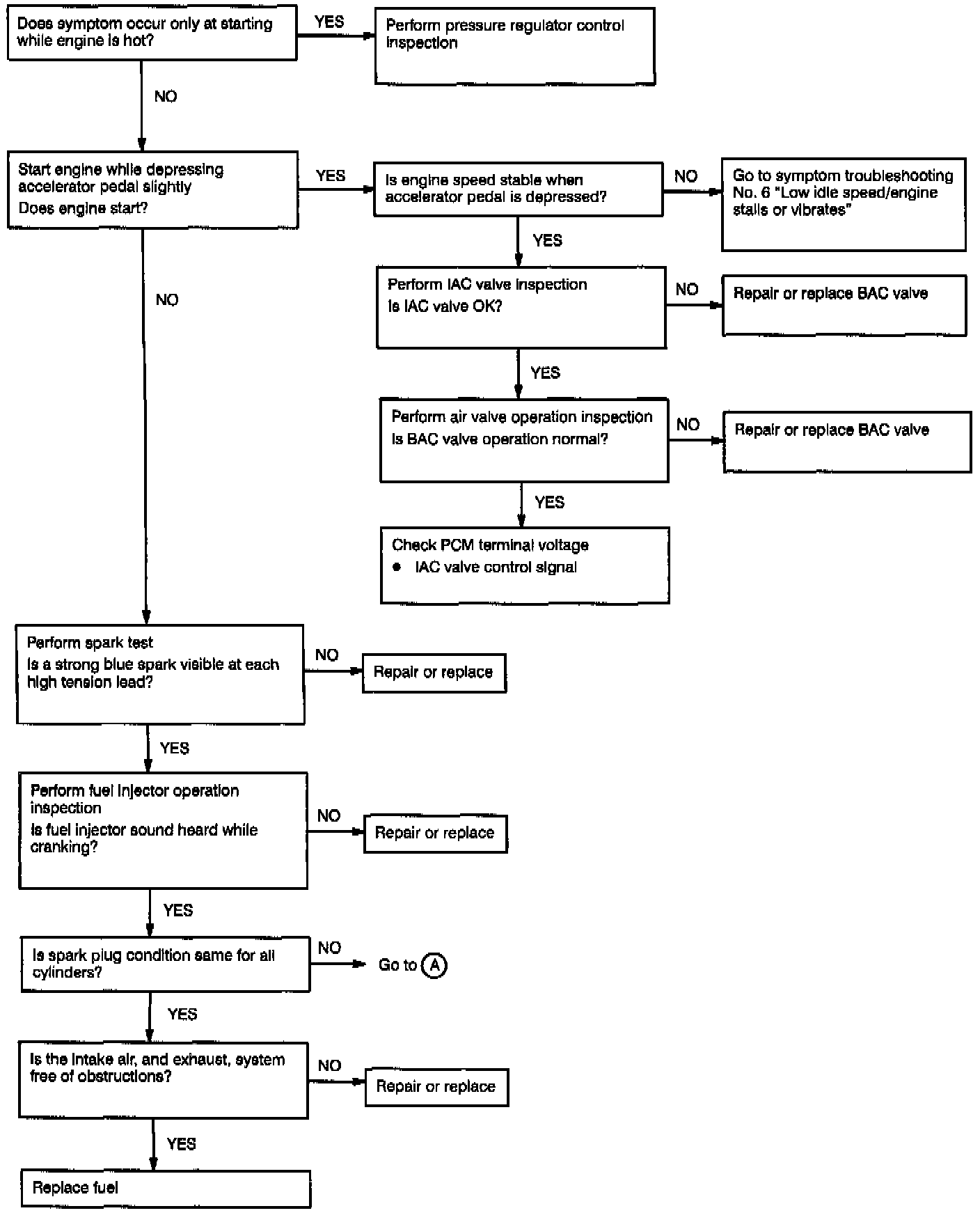

Diagnostic Chart:

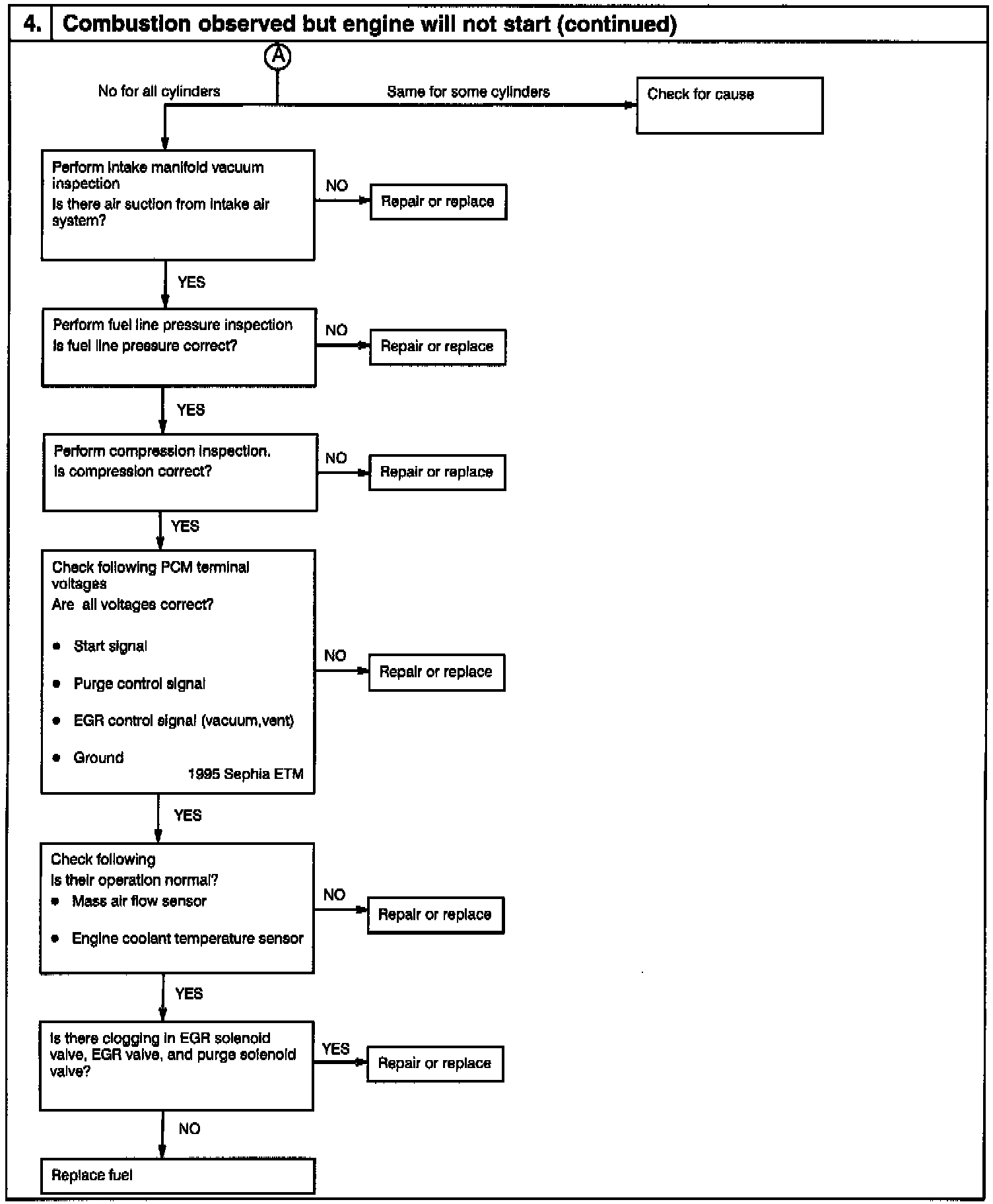

Diagnostic Chart:
