Headlights Does Not Operate(LO, Hi,or Flash-to-Pass)

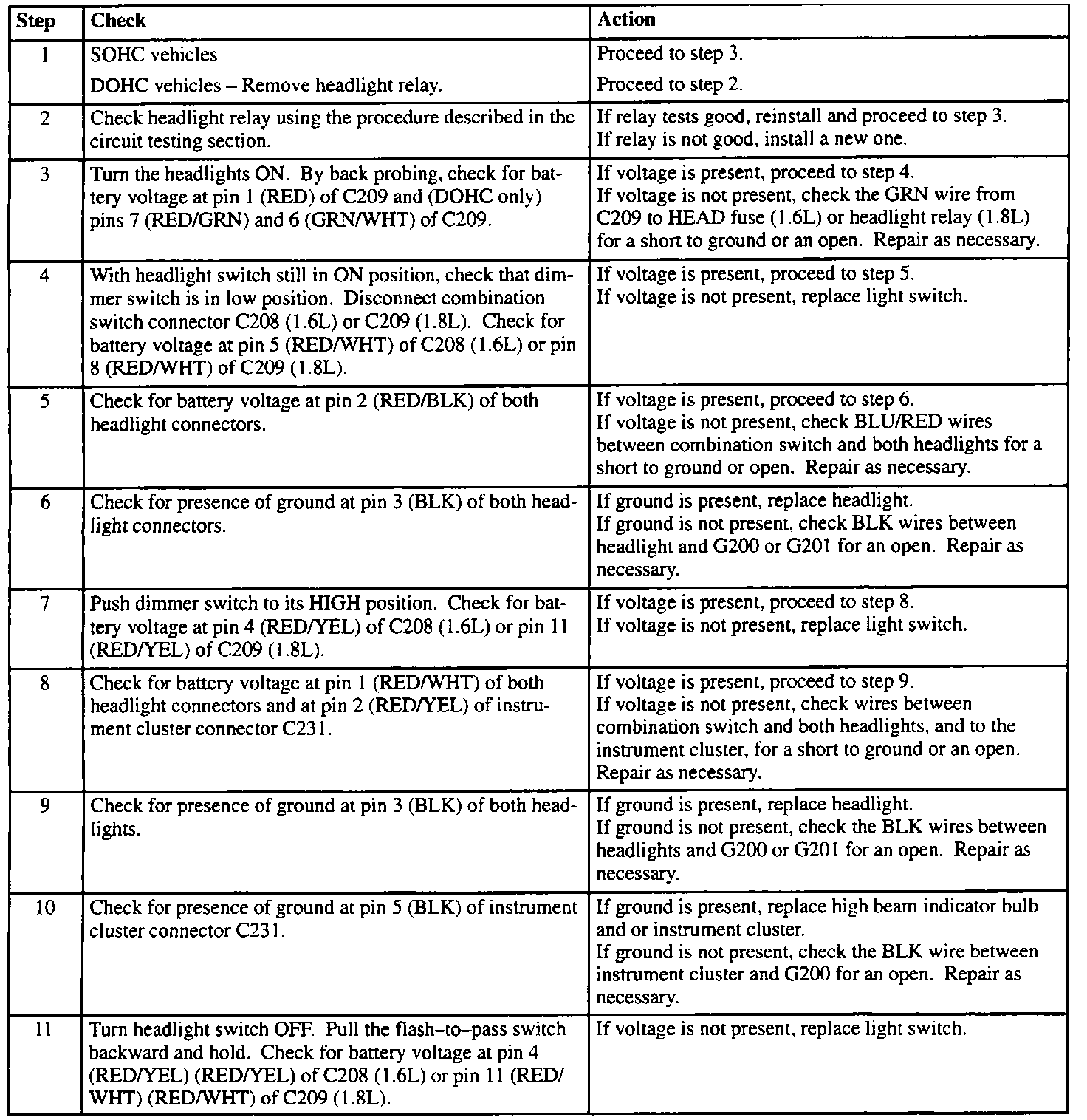

Troubleshooting:




Preliminary Check: Check condition of "HEAD" fuse. If fuse is open, locate and repair source of overload. Replace fuse.
