Up to VIN S5219999

Gauges Cluster-Circuit Testing:

1. Remove the instrument cluster.

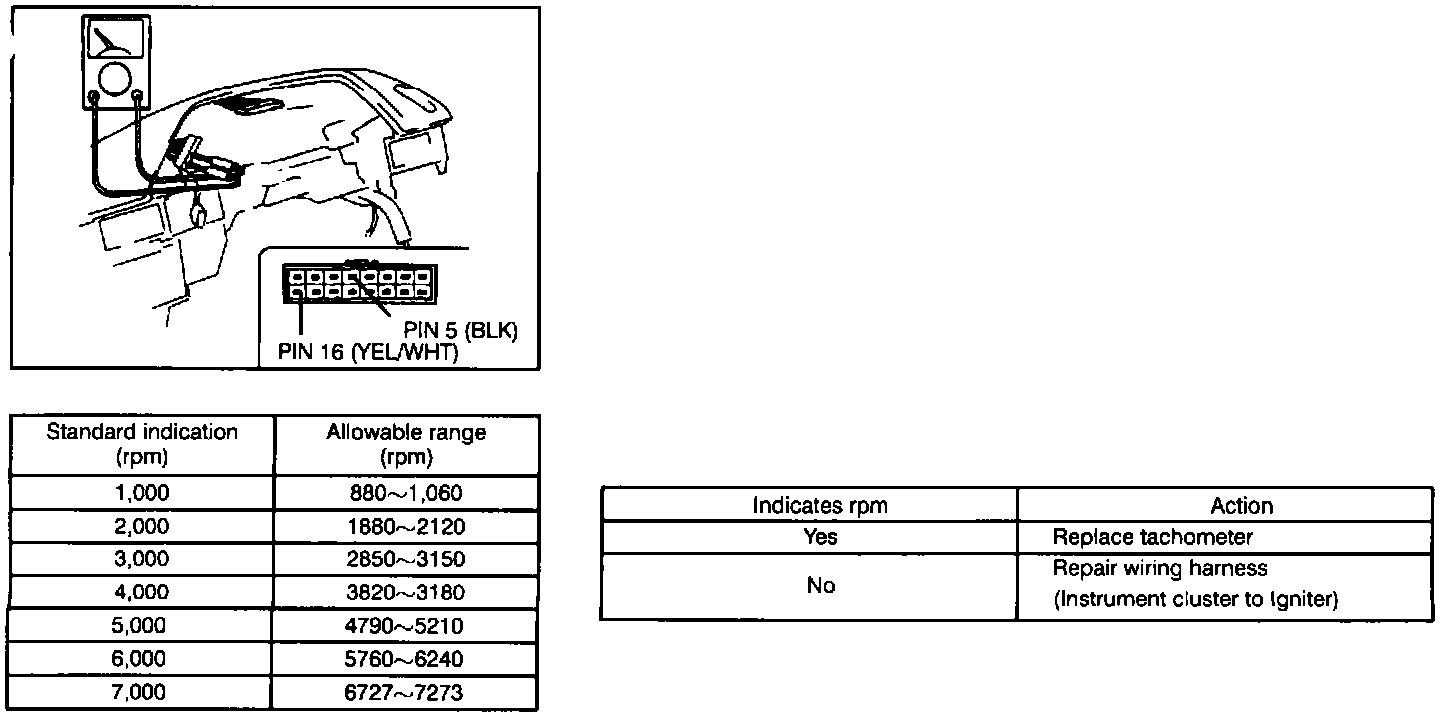

2. Connect the test tachometer between pin 5 (BLK) and pin 16 (YEL/WHT).
3. Start the engine.
4. Check that the test tachometer indicates engine speed.
