Up to VIN S5219999

Circuit Testing-Speedometer:

1. Using a speedometer tester, check the speedometer for allowable indication error, and check the operation of the odometer. Replace if necessary.
2. Check the speedometer for fluctuation and/or abnormal noise.

Caution
^ If significant fluctuation occurs or the speedometer does not move at all, go to Step 2. If it is normal, replace the speedometer assembly.
^ Tire wear and improper inflation will increase speedometer error.

Circuit Testing-Speedometer Cable:

Step 2 - Check speedometer cable

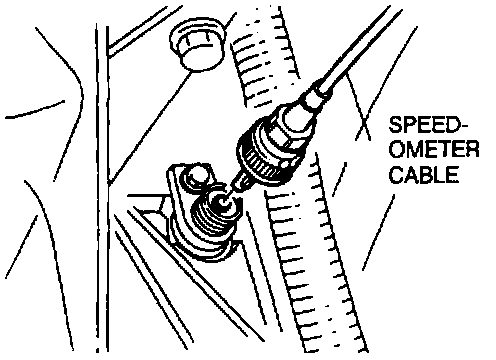

1. Disconnect the speedometer cable from the instrument cluster and transmission case.
2. Verify that the cable and gear spin easily when turned by hand.
3. If the cable or gear is stiff, replace the speedometer cable or gear.
4. If the speedometer cable and gear are OK, replace the speedometer.
