Up to VIN S5219999

Indicators Cluster-Circuit Testing:

1. Disconnect the connector from the fuel tank unit.

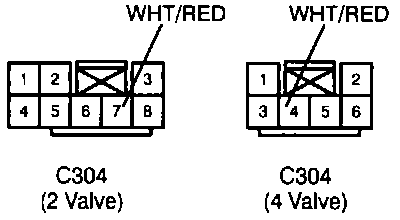

2. Connect the WHT/RED wire to ground.
3. Turn the ignition switch to ON and check that the FUEL warning lamp illuminates.
4. If the fuel warning indicator does not light check bulb and wiring harness for an open.
5. If the fuel warning indicator does light repair/replace fuel gauge sender unit.
