Home >> Kia >> 1995 >> Sephia Sedan L4-1.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> BP DOHC

BP DOHC

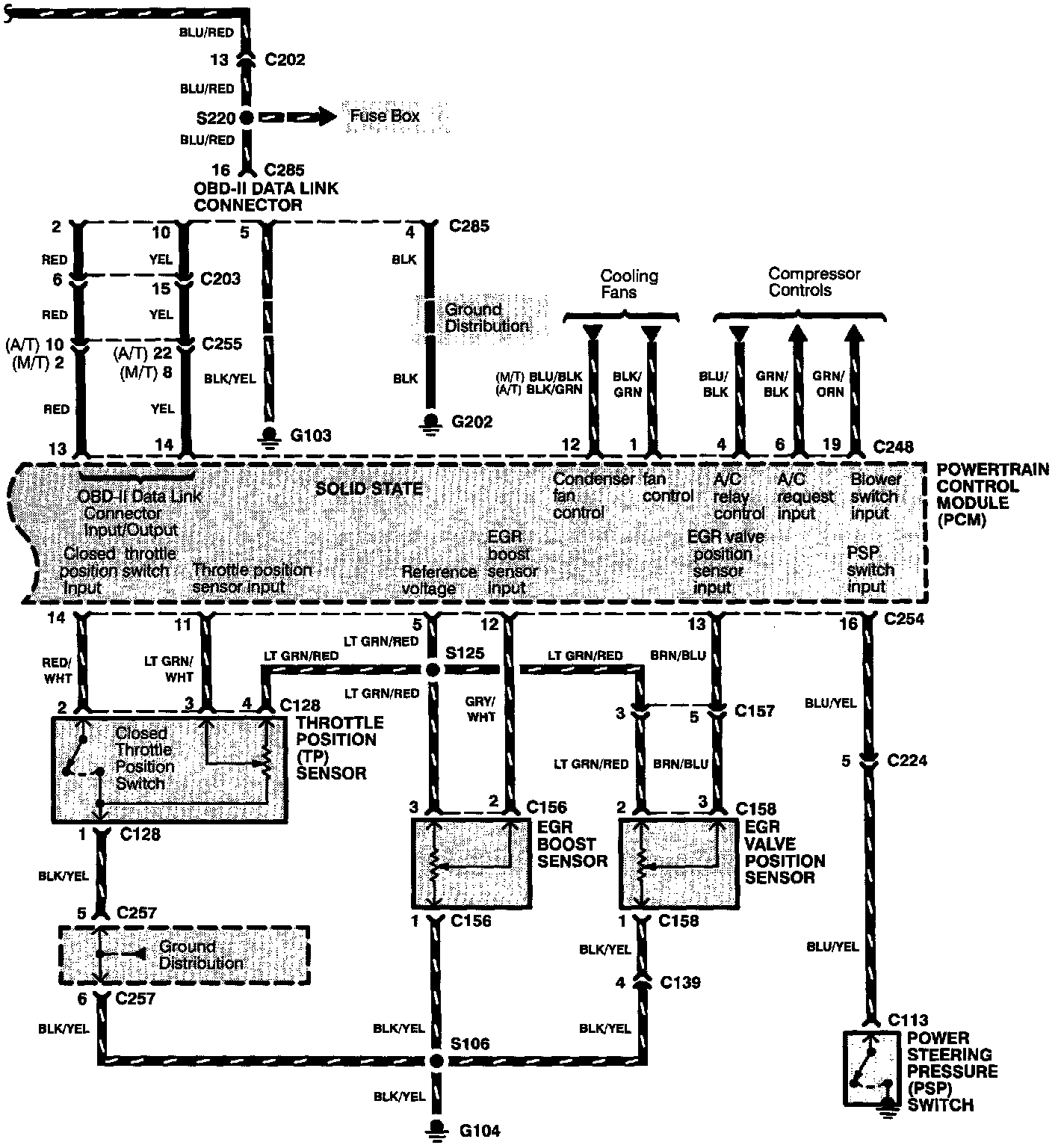

Wiring Diagram:

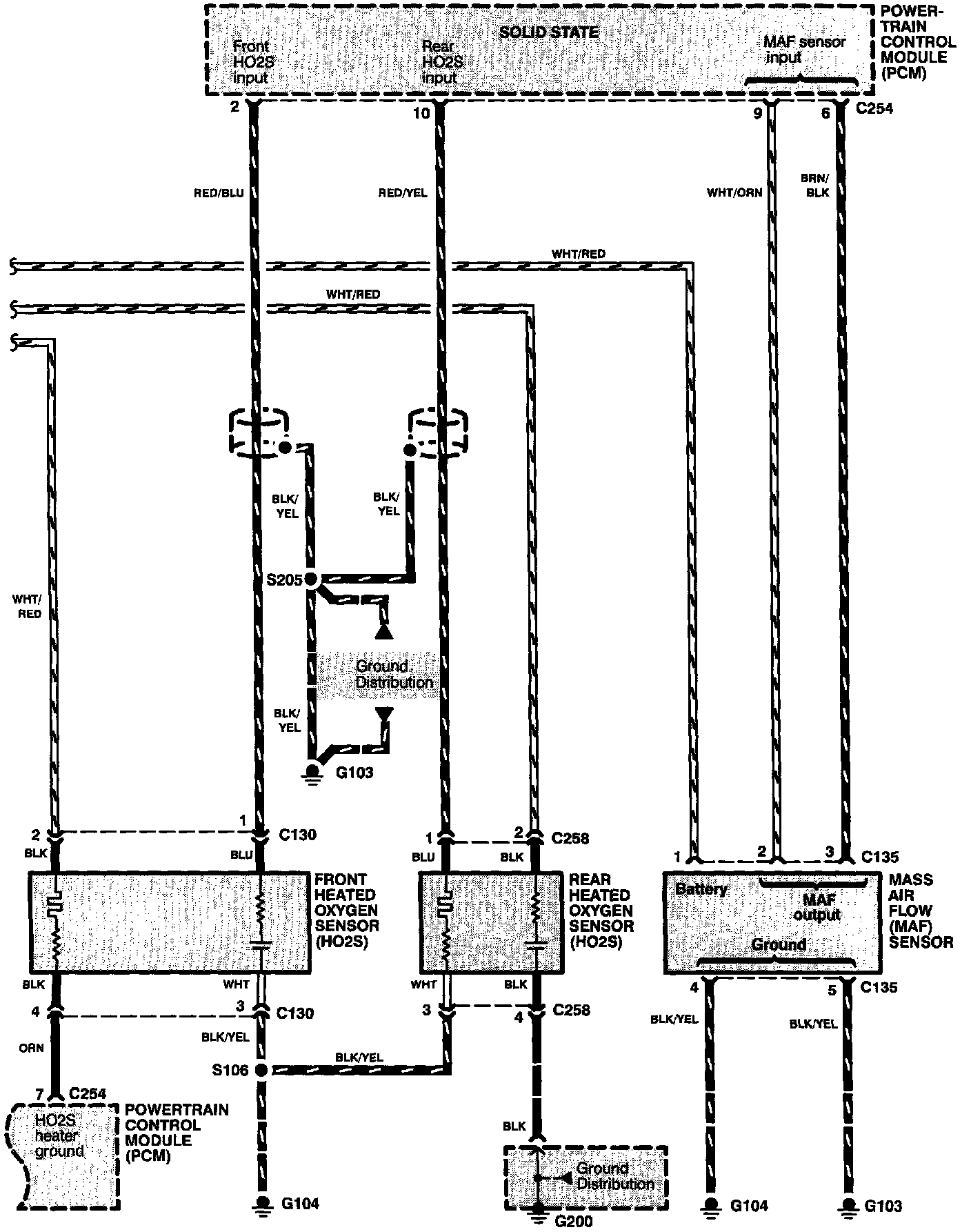

Wiring Diagram:

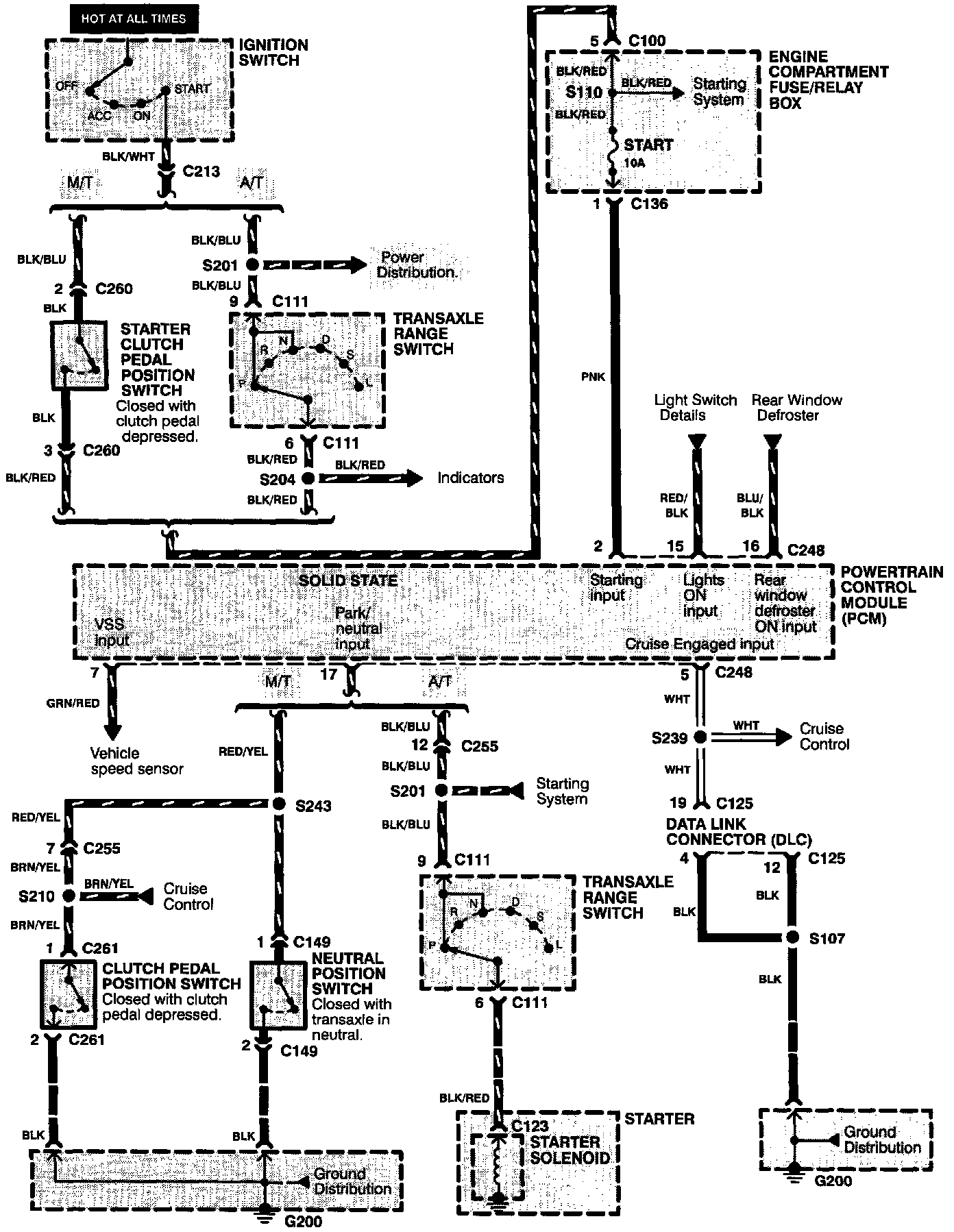

Wiring Diagram:

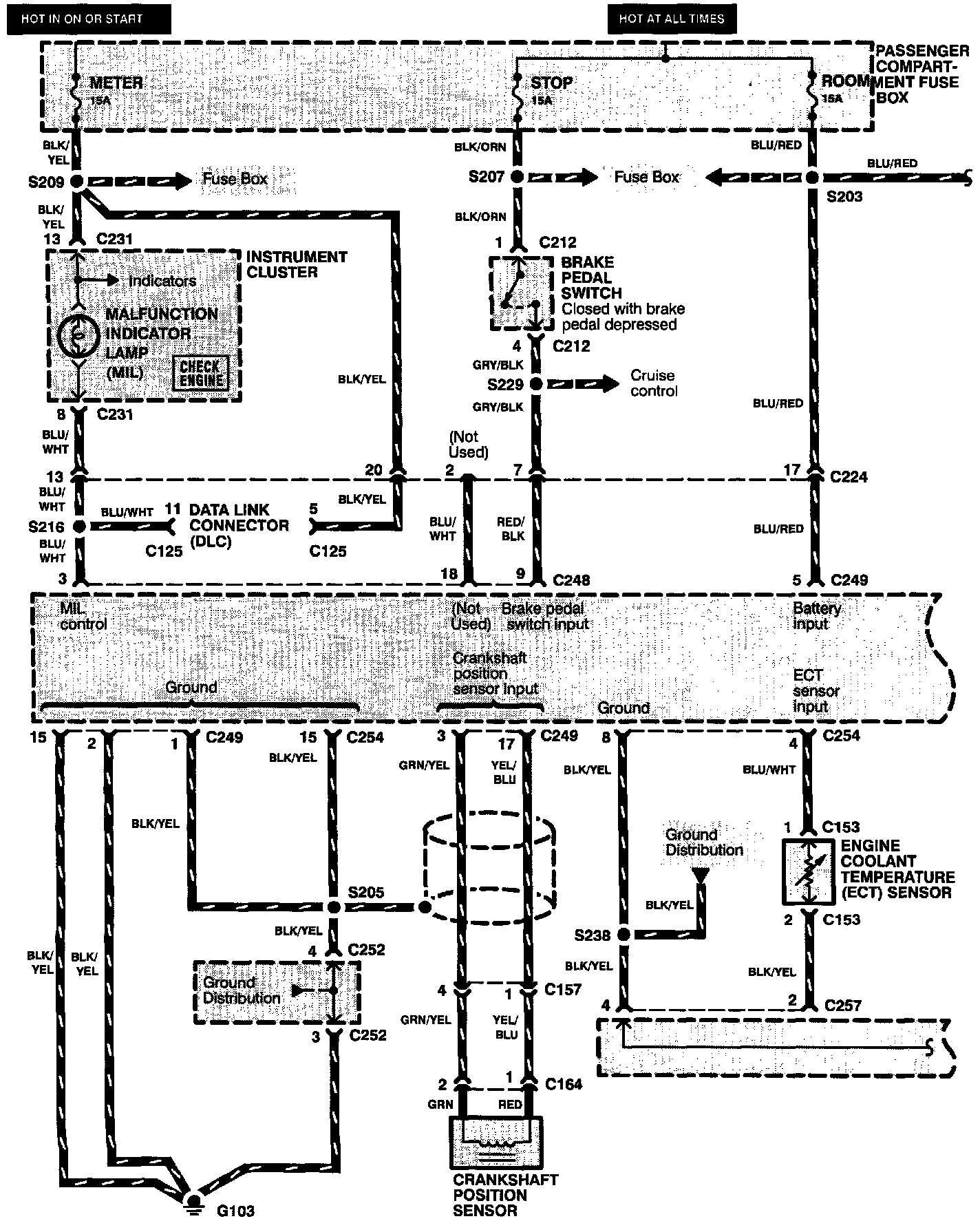

Wiring Diagram:

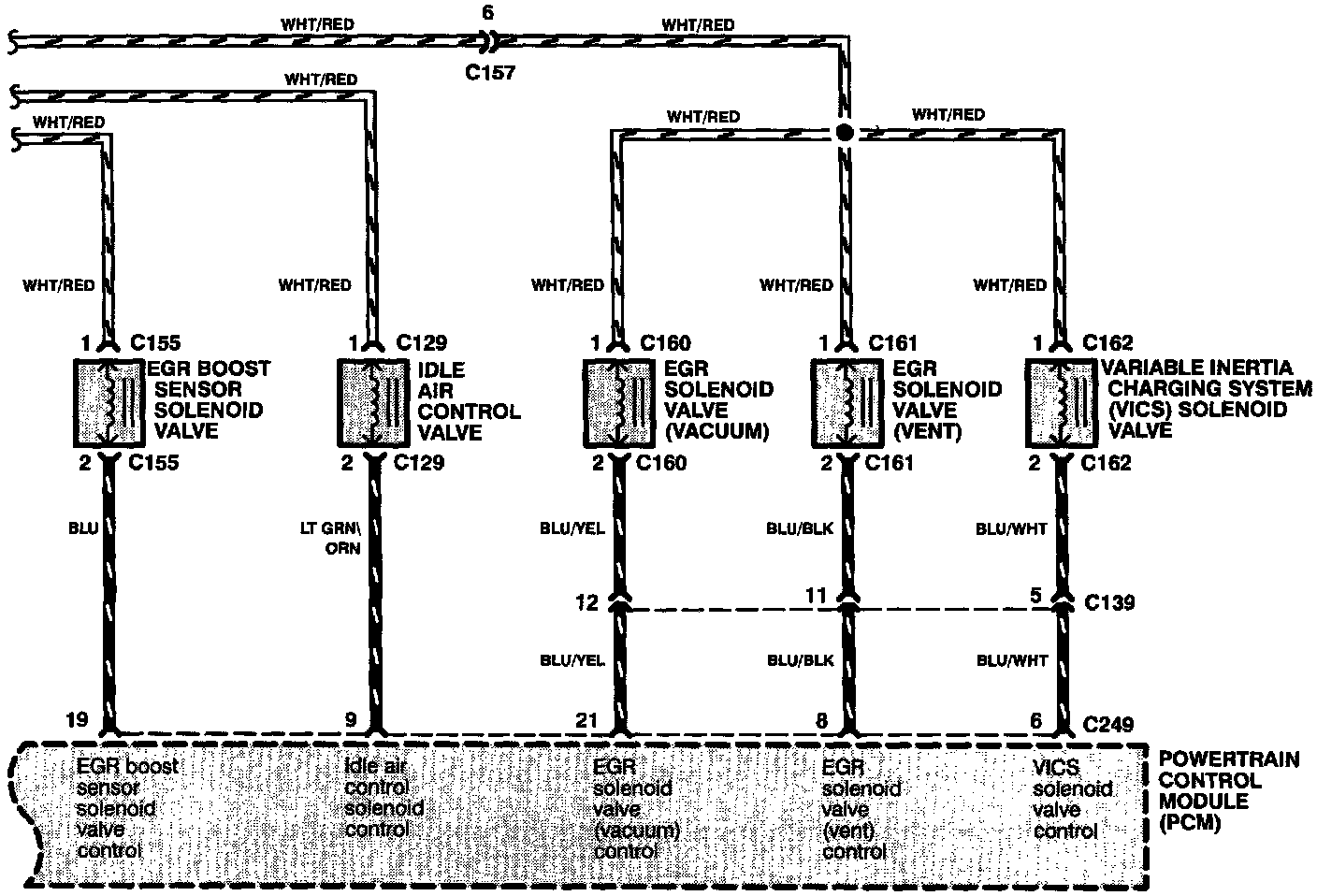

Wiring Diagram:

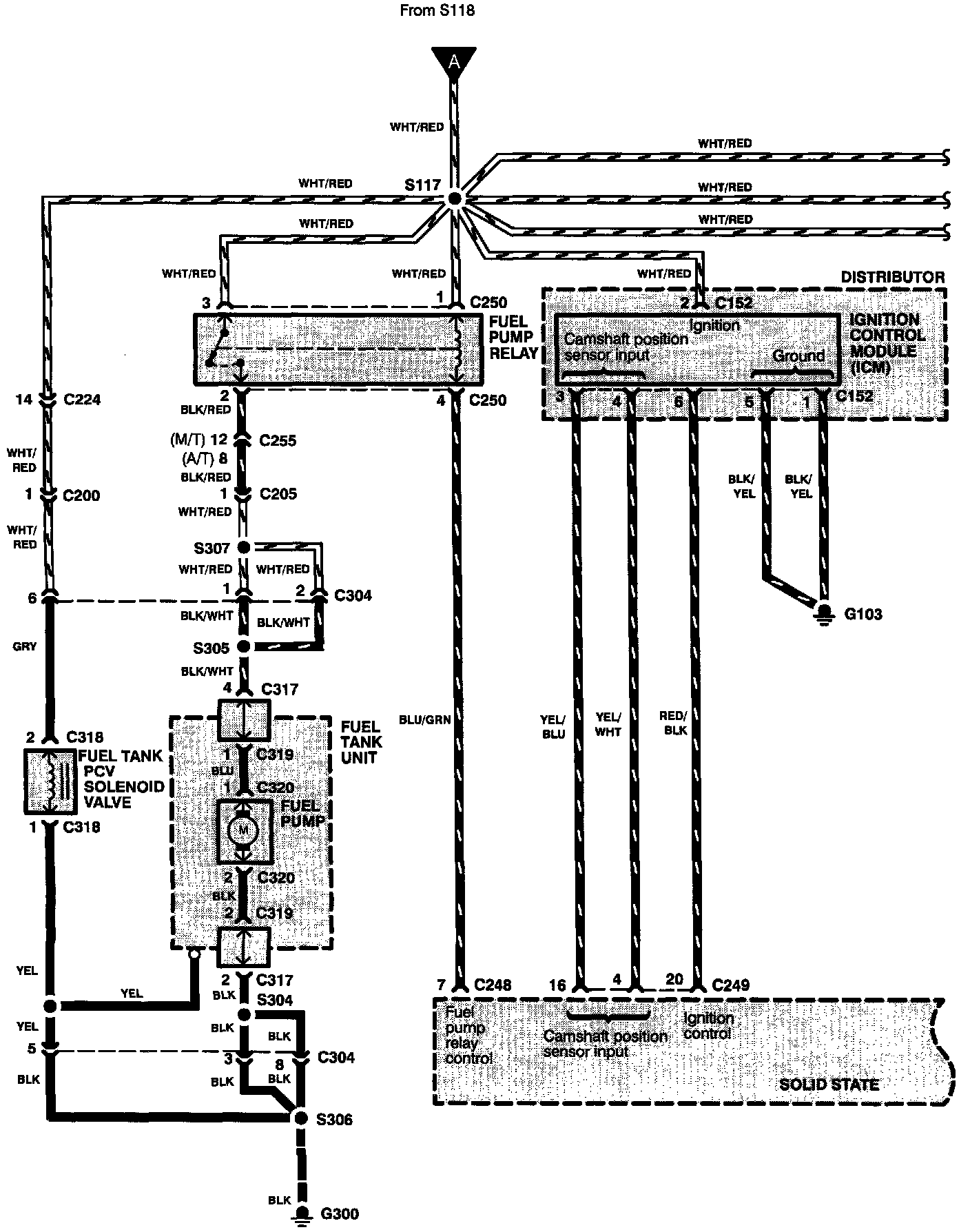

Wiring Diagram:

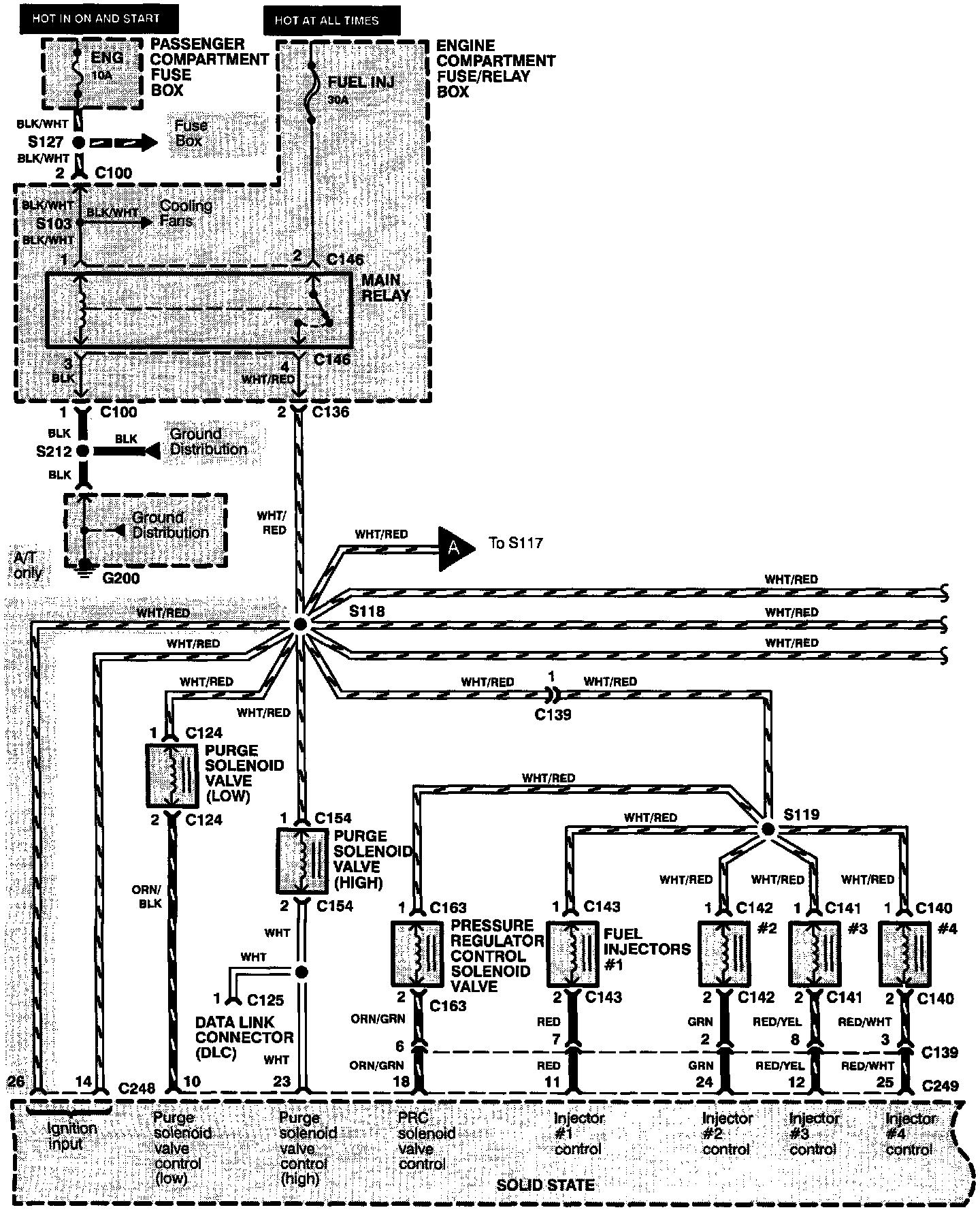

Wiring Diagram:
