Up to VIN S5219999

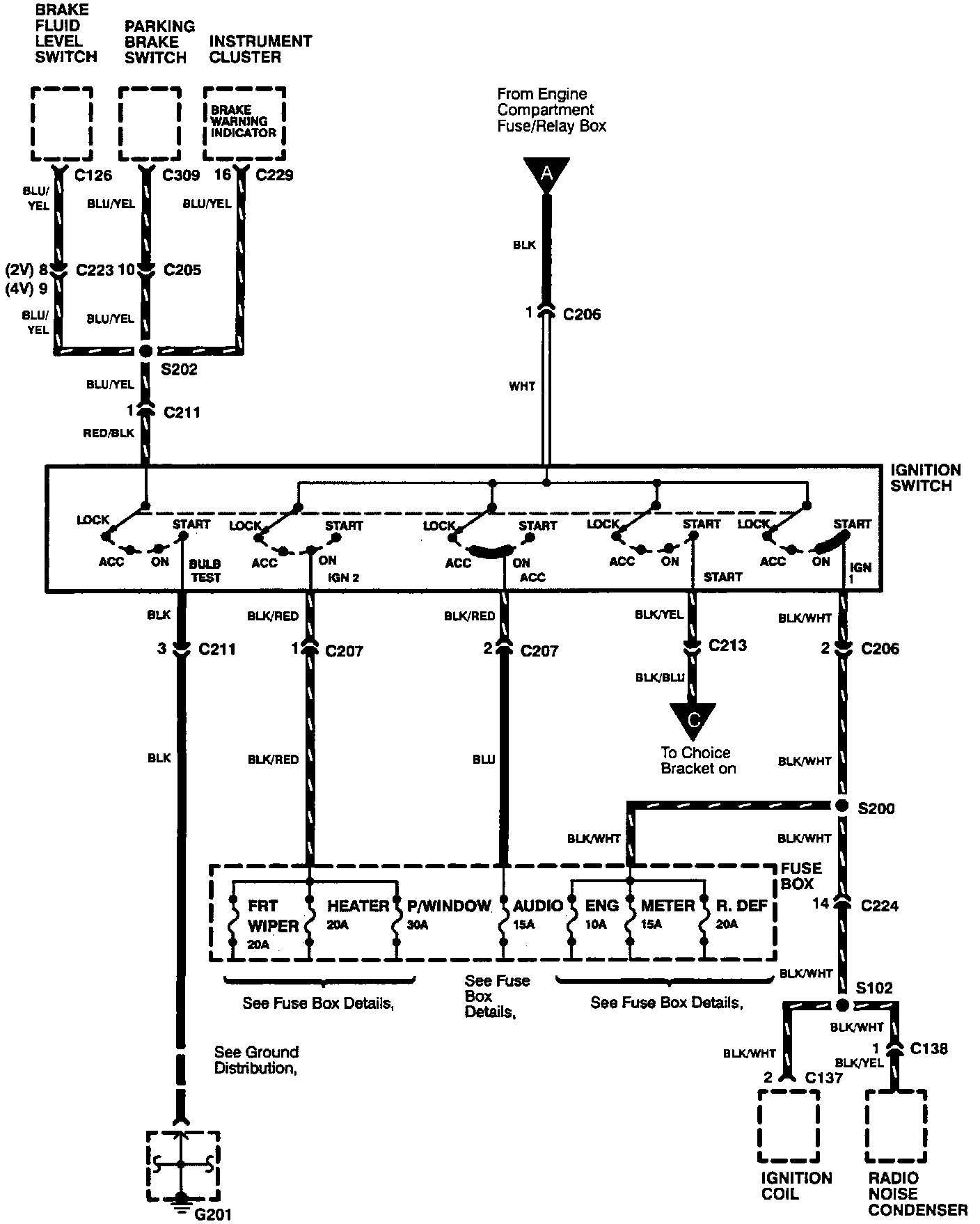

Power Distribution (Part 1 Of 3):

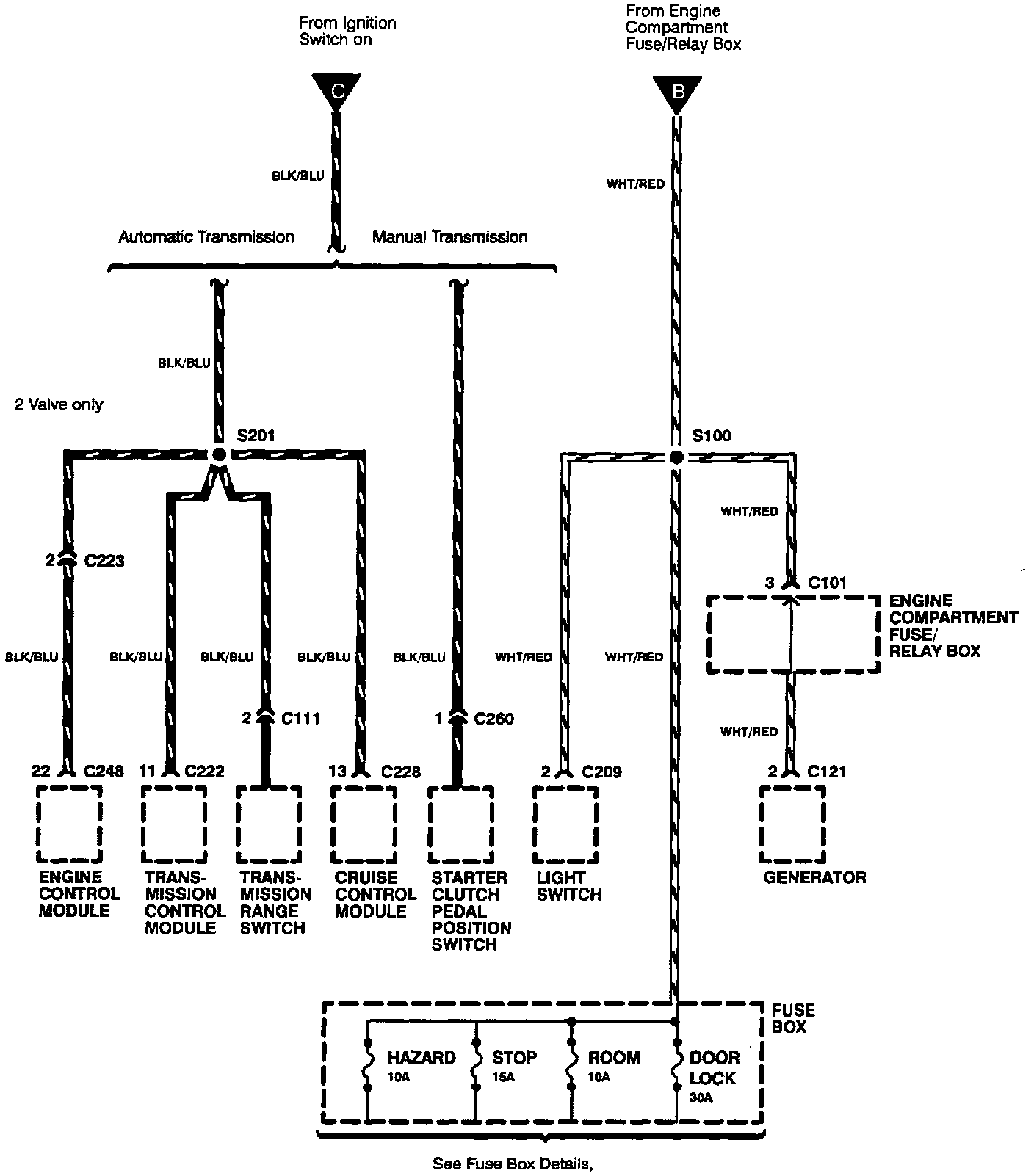

Power Distribution (Part 2 Of 3):

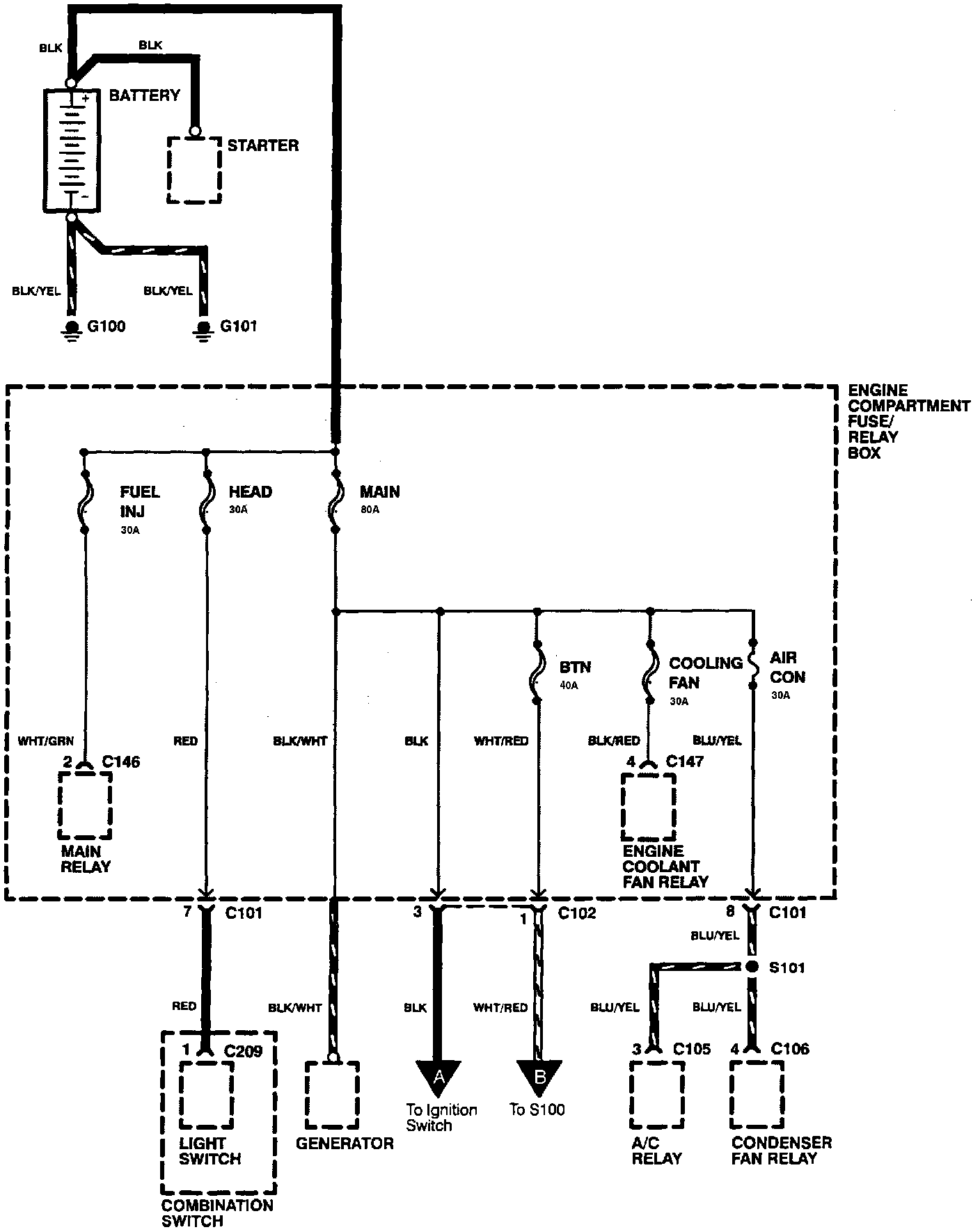

Power Distribution (Part 3 Of 3):
