Ground Distribution
>>
From VIN S5220000
>>
G300, G301, G400 and G401
G300, G301, G400 and G401

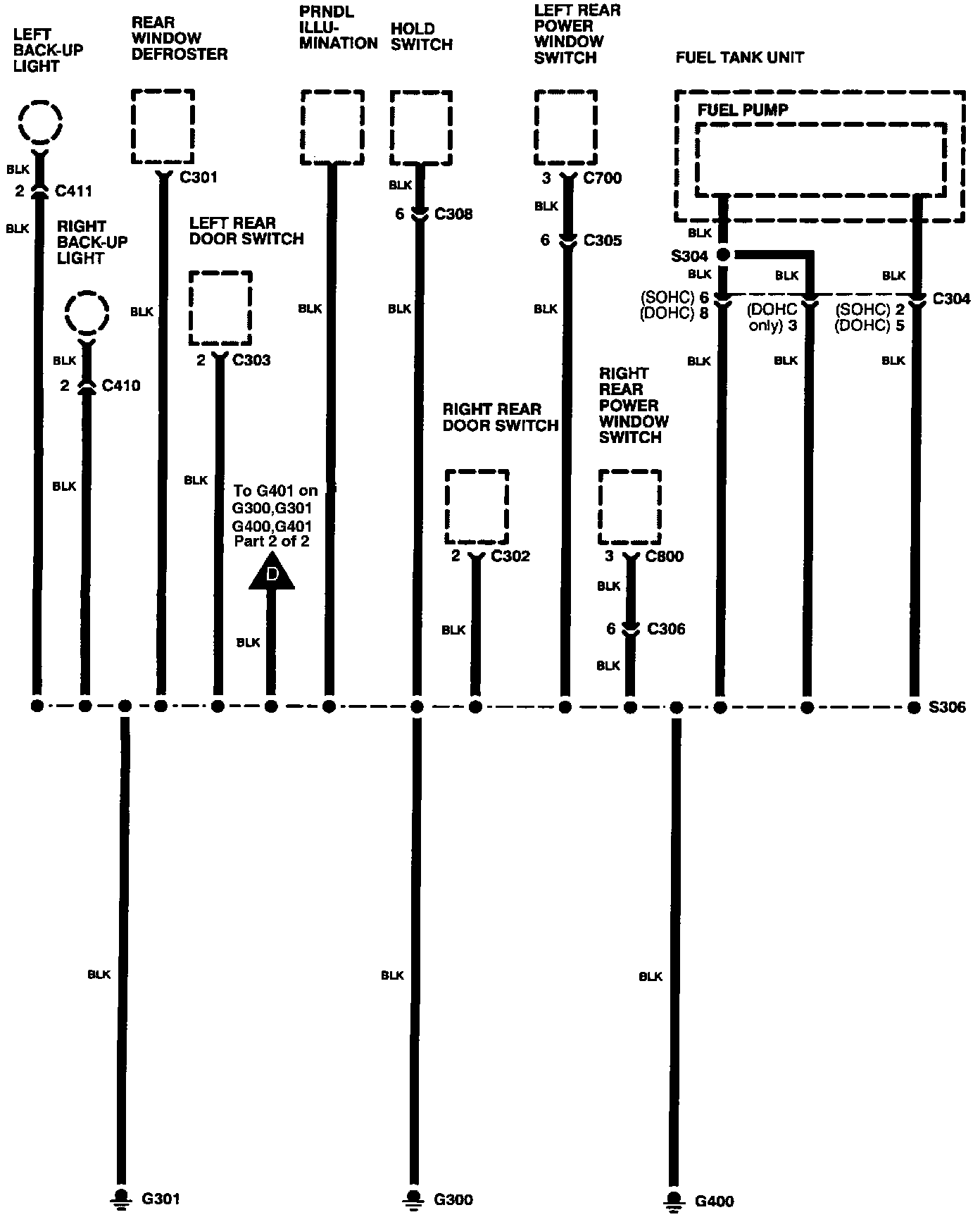

Ground Distribution-G300, G301, G400 And G401 (Part 1 Of 2):
Ground Distribution-G300, G301, G400 And G401 (Part 1 Of 2):
