G200, G202, G203 and G204

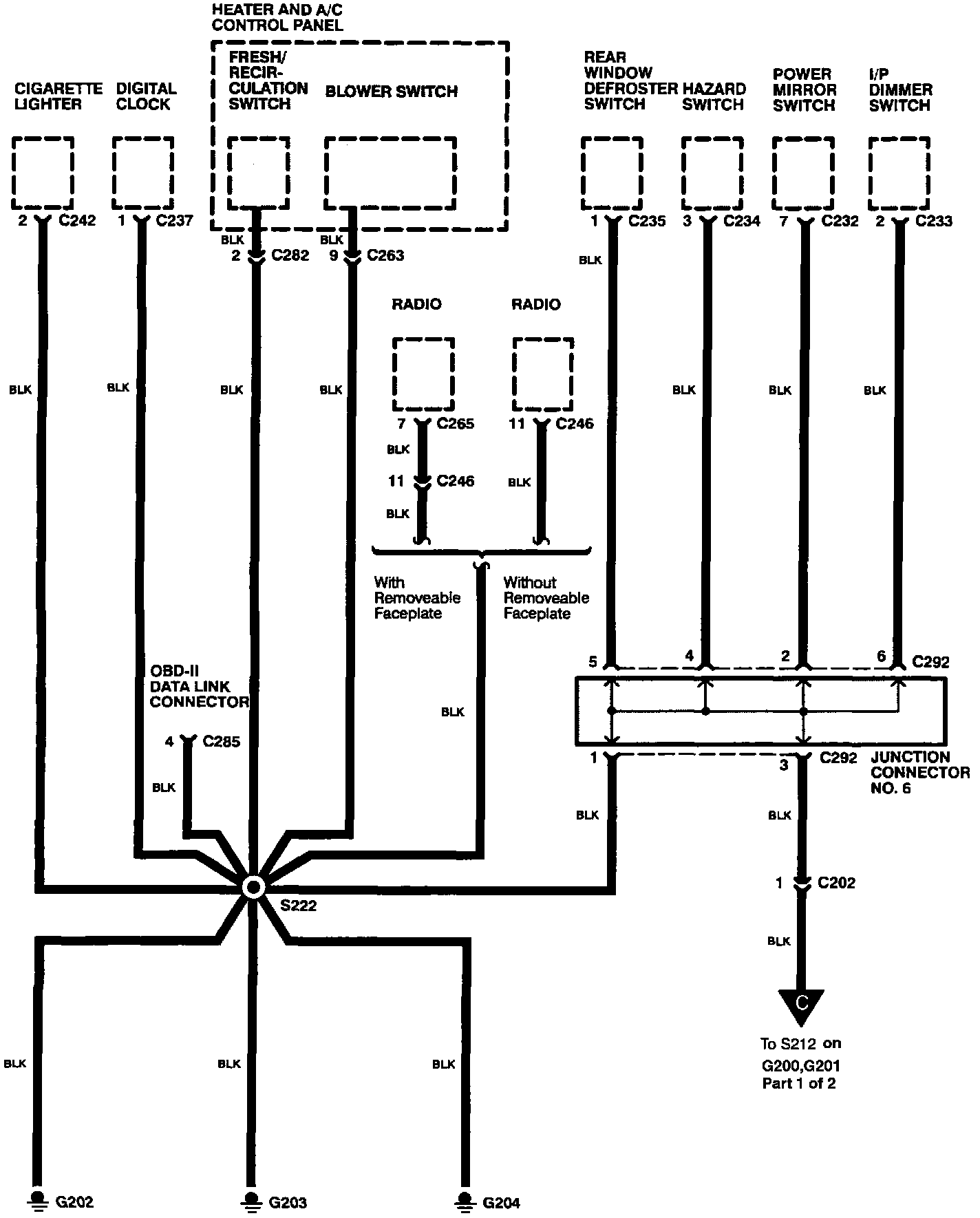

Ground Distribution-G200, G202, G203, And G204 (Part 1 Of 2):



Ground Distribution-G200, G202, G203, And G204 (Part 1 Of 2):
