Home
>>
Kia
>>
1995
>>
Sephia Sedan L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
System Diagram
>>
Ground Distribution
>>
From VIN S5220000
>>
G200 and G201
G200 and G201

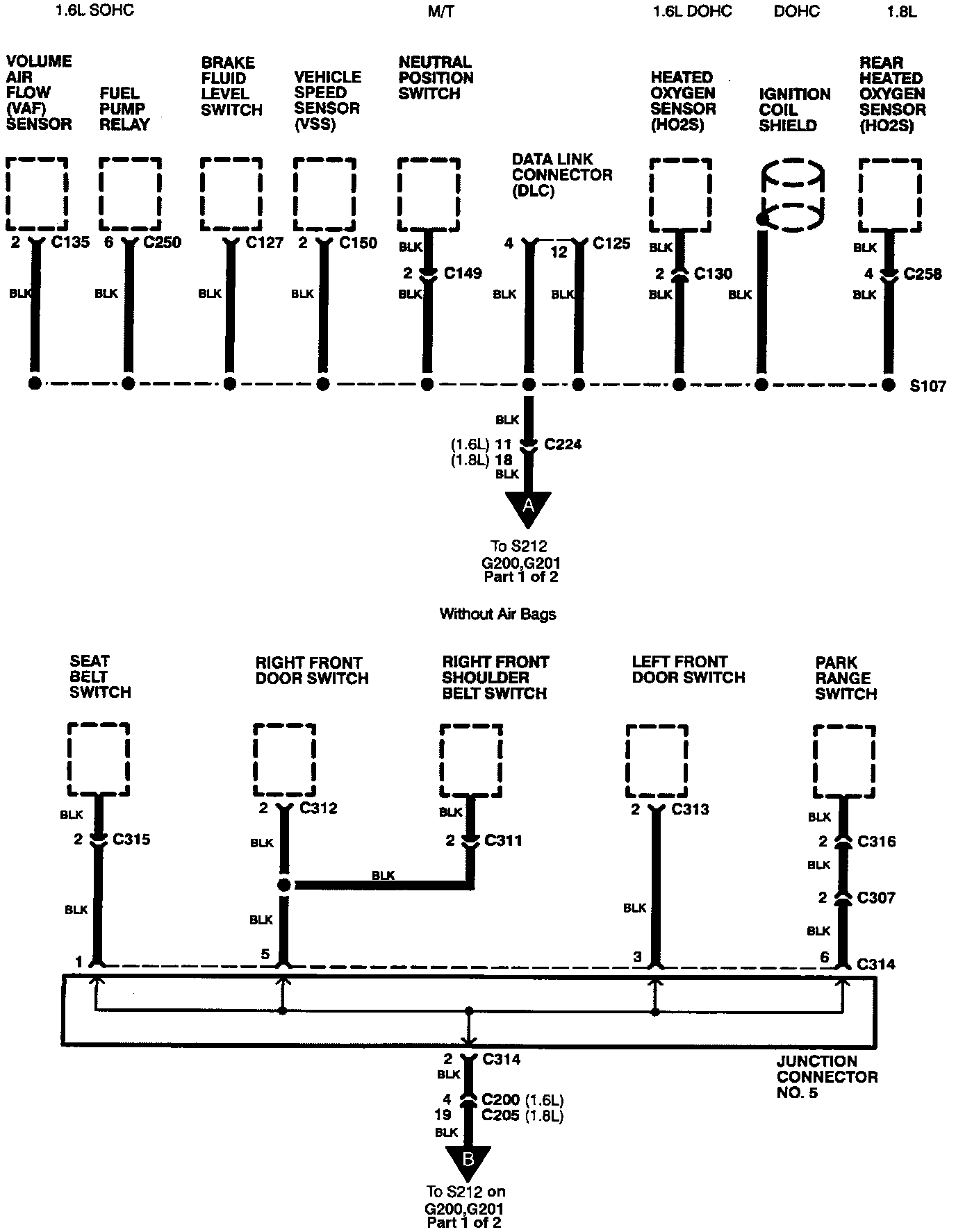

Ground Distribution-G200 And G201 (Part 1 Of 2):

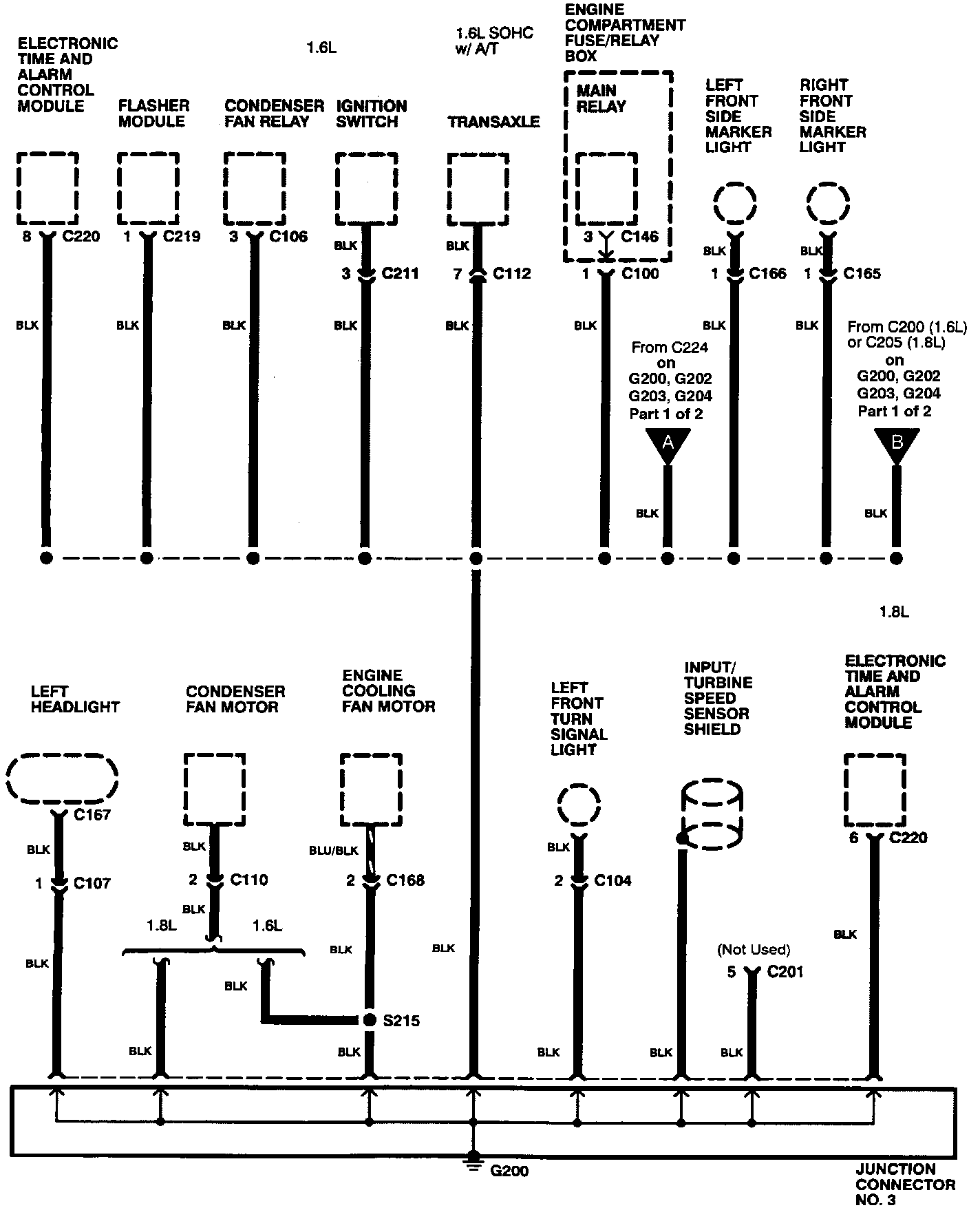

Ground Distribution-G200 And G201 (Part 2 Of 2):

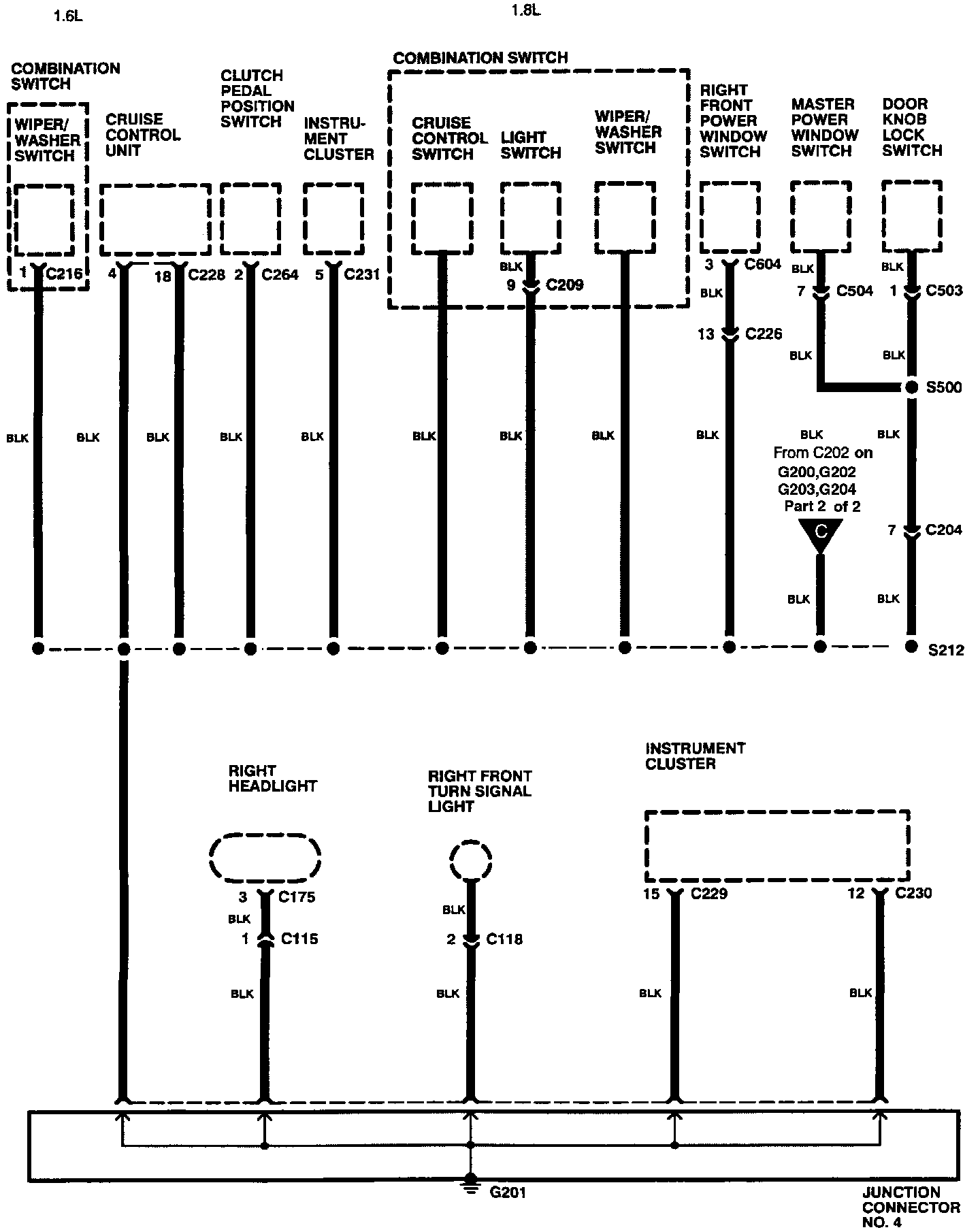

Ground Distribution-G200, G202, G203, And G204 (Part 1 Of 2):
