Home
>>
Kia
>>
1995
>>
Sephia Sedan L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Fuse Block
>>
Up to VIN S5219999
Up to VIN S5219999

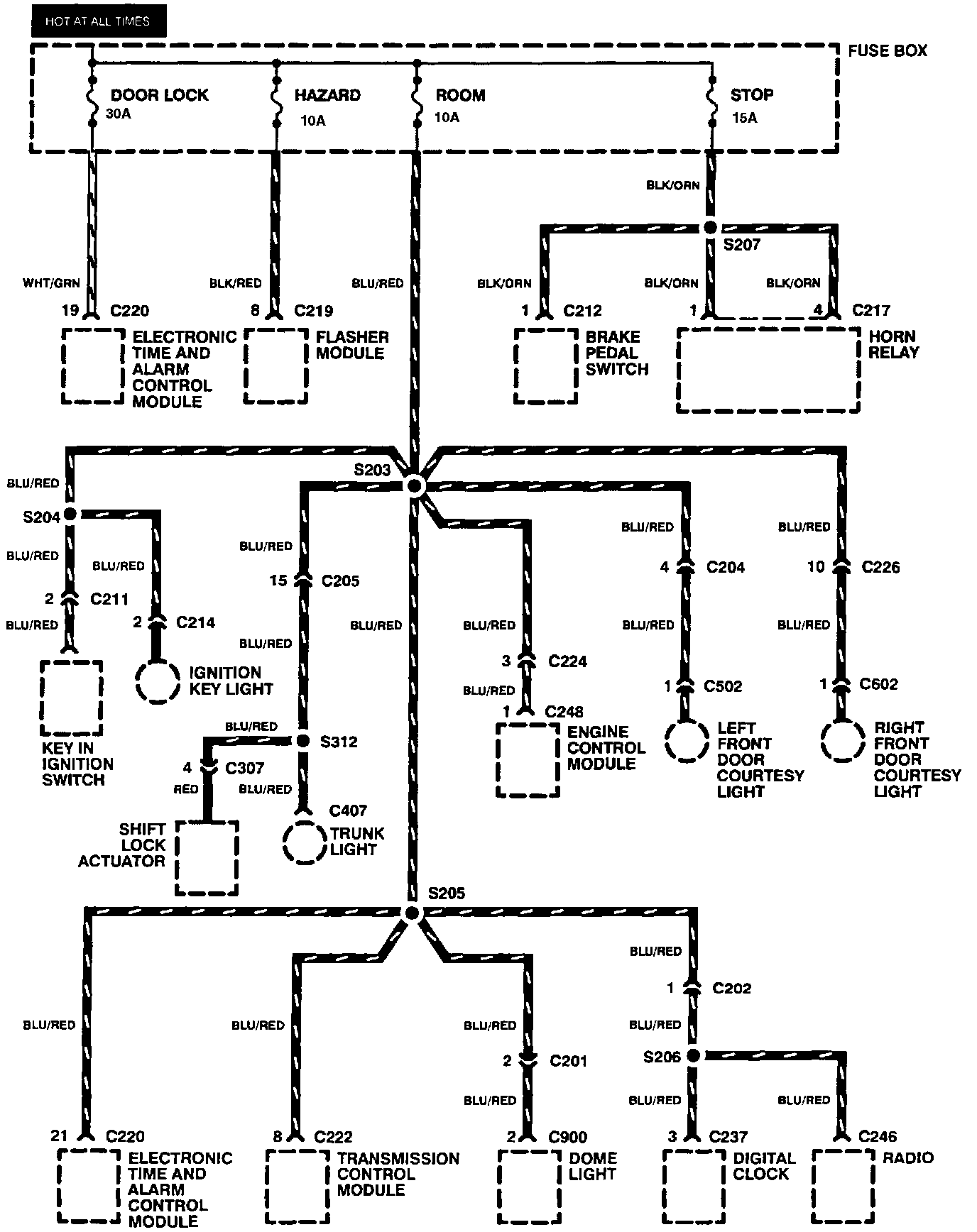

Fuse Box Details (Part 1 Of 4):

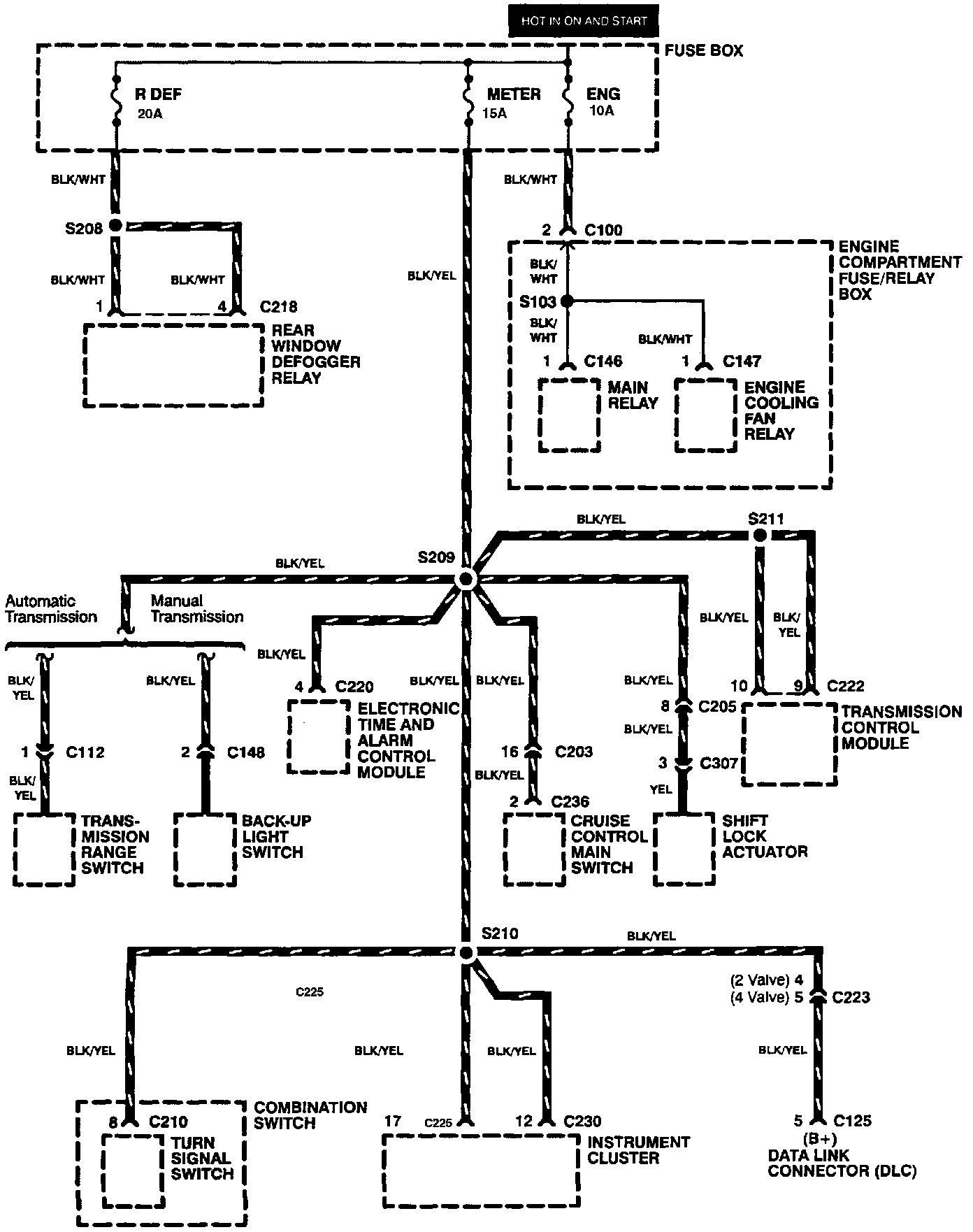

Fuse Box Details (Part 2 Of 4):

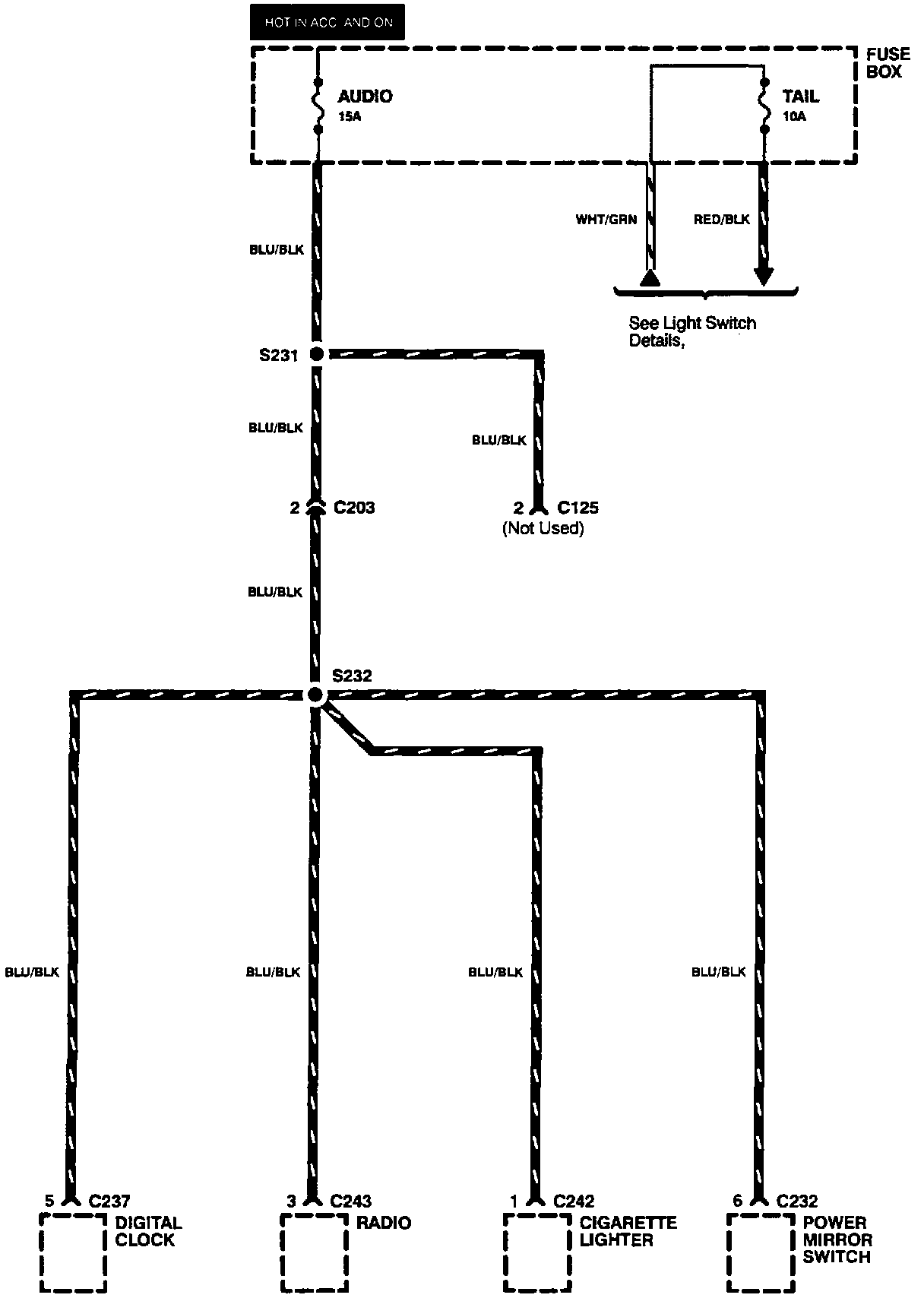

Fuse Box Details (Part 3 Of 4):
Fuse Box Details (Part 4 Of 4):
