System Diagram
>>
From VIN S5220000
From VIN S5220000

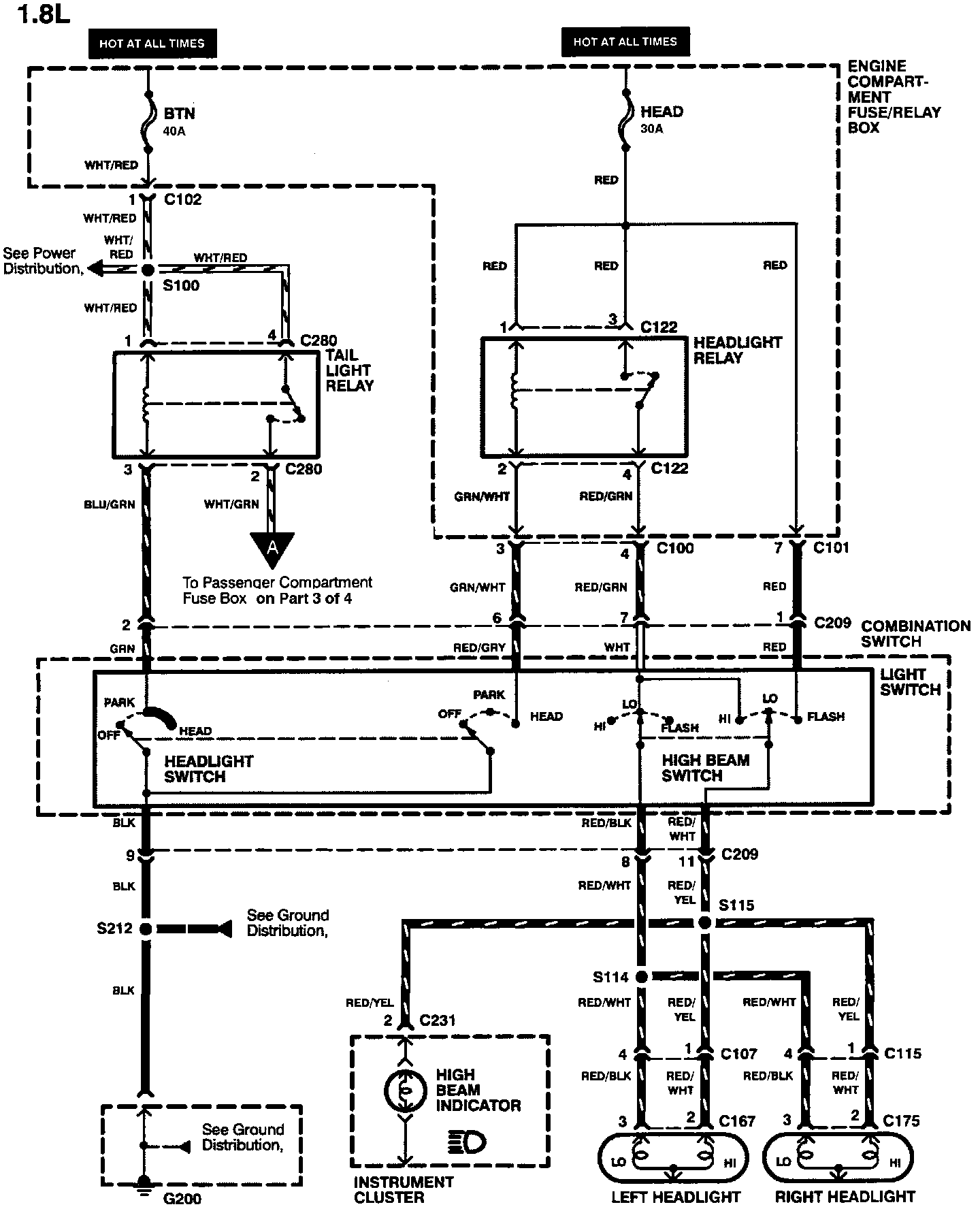

Light Switch Details (Part 2 Of 4):

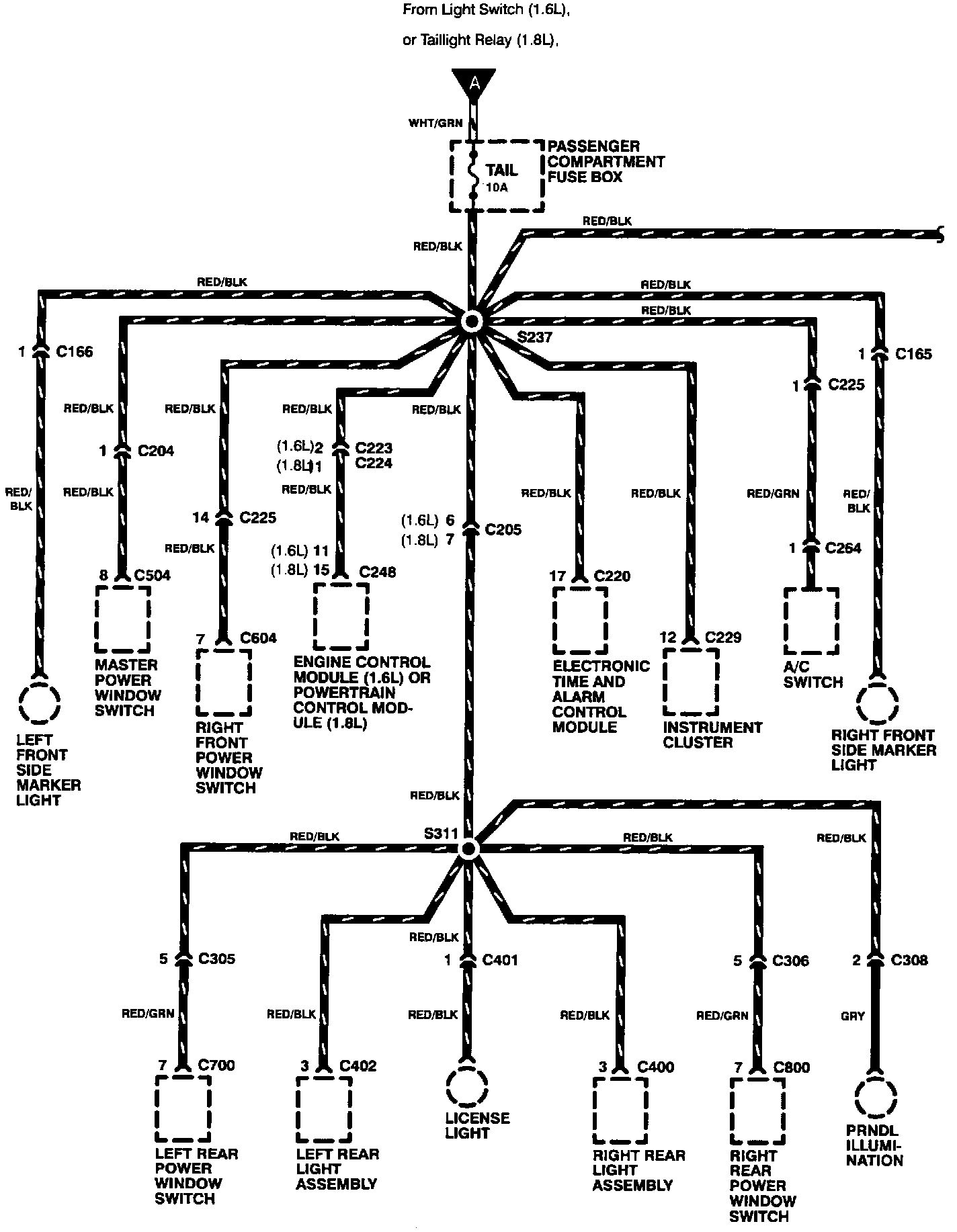

Light Switch Details (Part 3 Of 4):

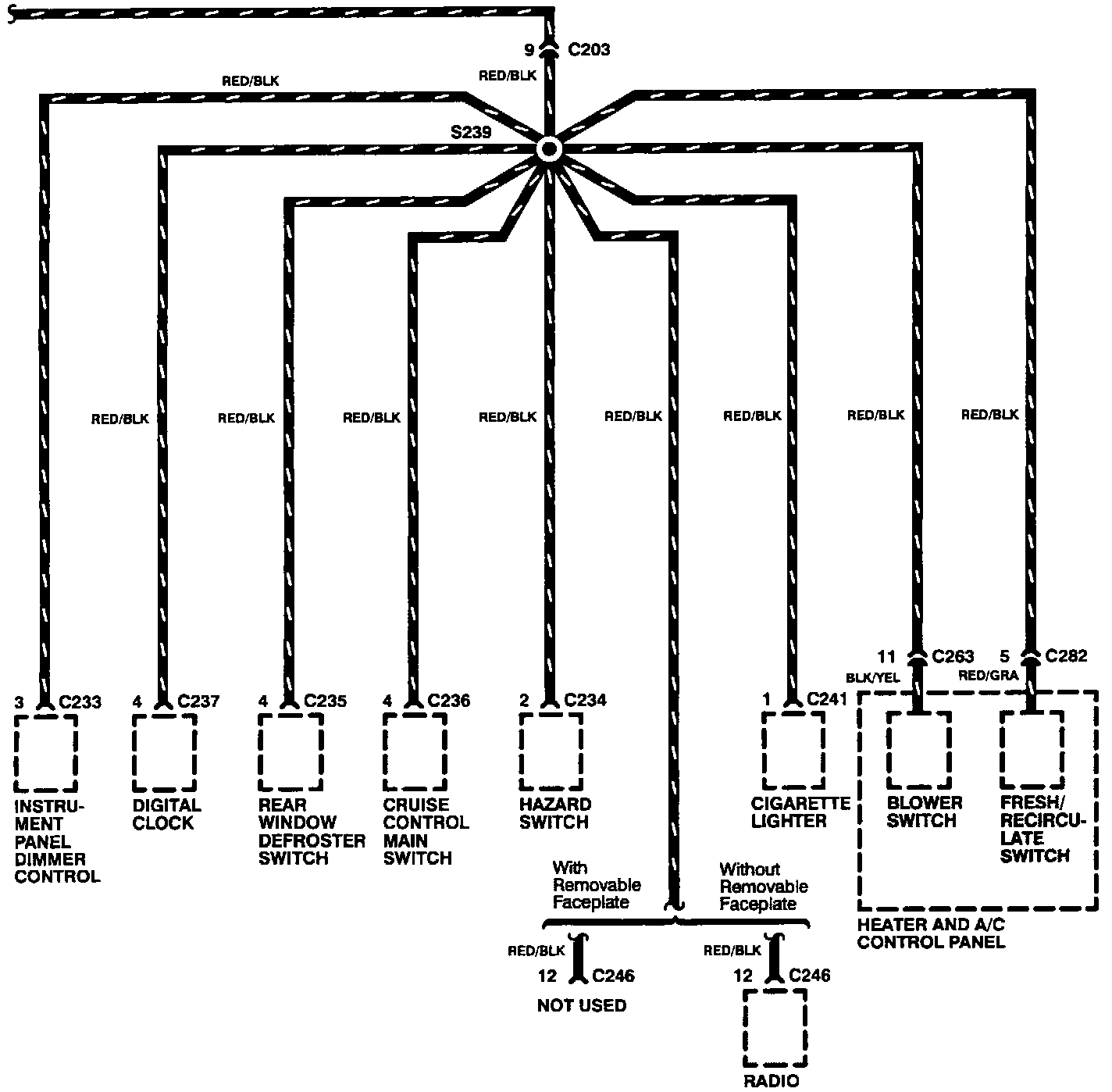

Light Switch Details (Part 4 Of 4):
