Home >> Kia >> 1995 >> Sephia Sedan L4-1.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Indicators and Gauges Cluster >> From VIN S5220000

From VIN S5220000

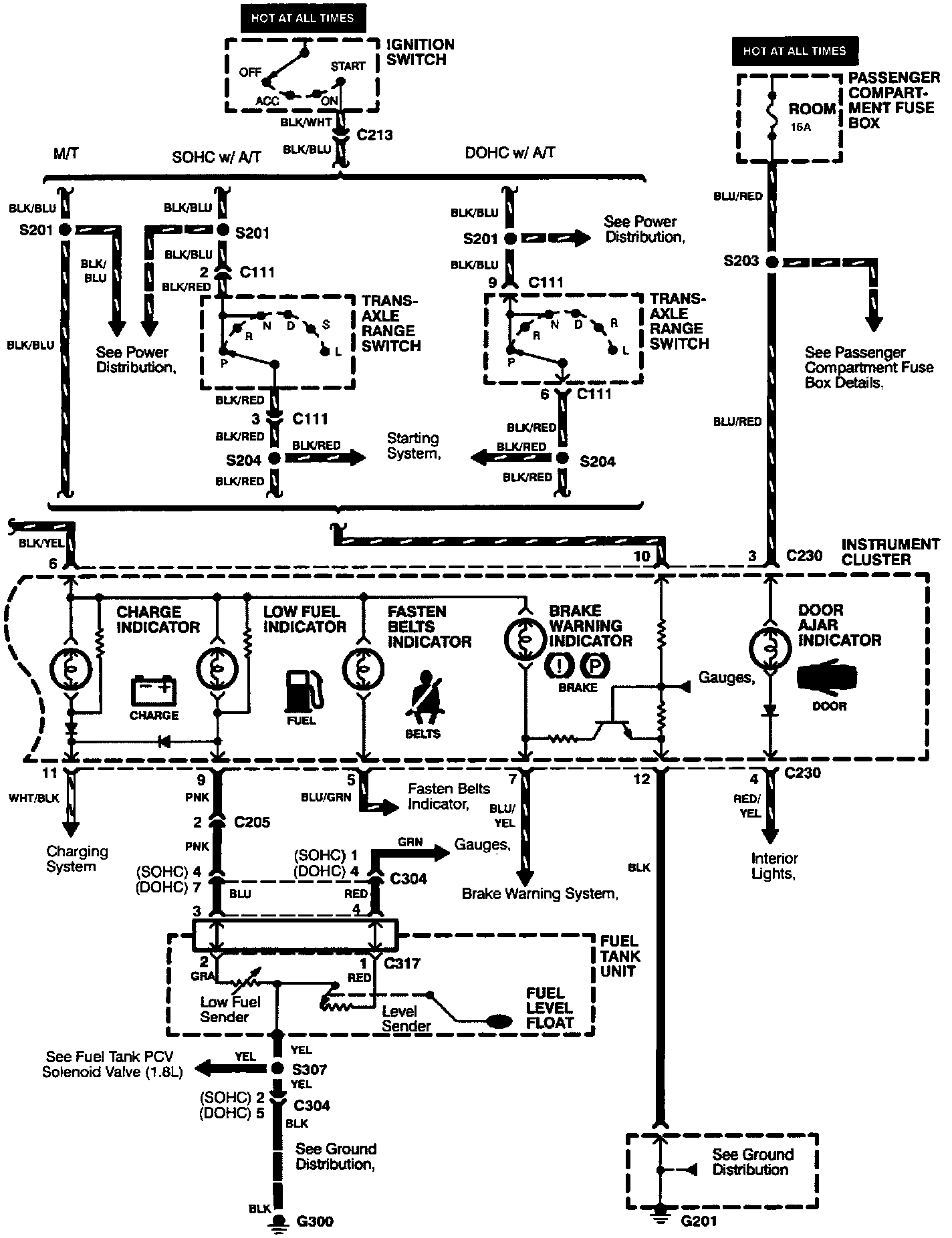

Indicators (Part 1 Of 3):

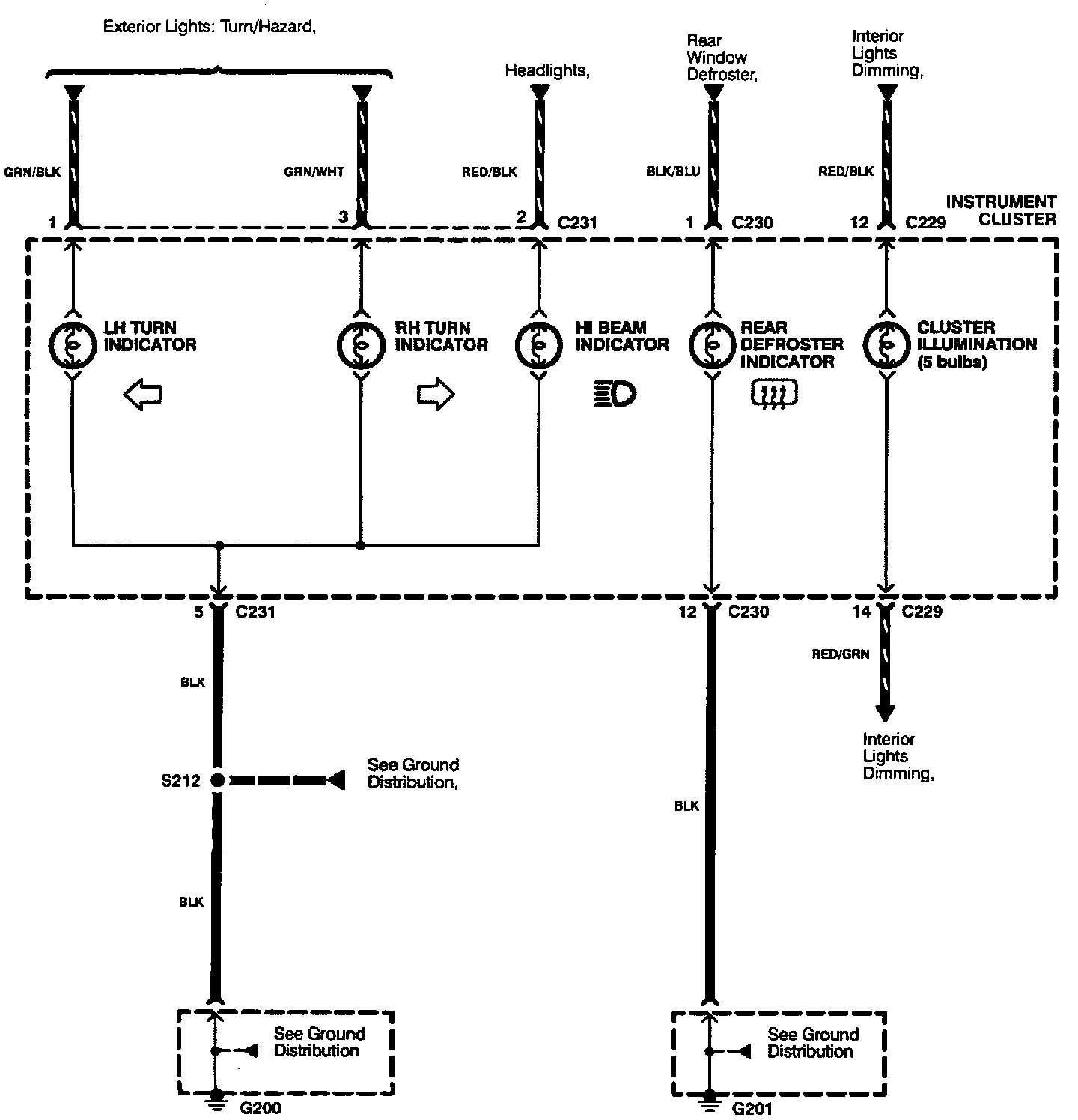

Indicators (Part 2 Of 3):




Indicators (Part 3 Of 3):
